www.teejet.com
46
●
98-05141 R2
47
●
If “Off” is selected, no FieldPilot capabilities or setup
functions will be enabled (icons will be grayed out).
Figure 2-62: FieldPilot with Autosteer Off
Valve Setup
Valve Setup is used to confi gure Valve Frequency,
Minimum Duty Cycle Left, Minimum Duty Cycle
Right and Maximum Duty Cycle.
1. Press VALVE SETUP ICON .
2. Select from:
►Valve Frequency – used to drive the
steering valve
►Minimum Duty Cycle Left – sets the
minimum amount of drive required to begin
steering the vehicle left
►Minimum Duty Cycle Right – sets the
minimum amount of drive required to begin
steering the vehicle right
►Maximum Duty Cycle – sets the maximum
speed that the wheels will steer from left to right/
right to left (lock to lock)
OR
Press PAGE RIGHT ARROW to cycle through
all settings.
NOTE: Options labels are current settings. While in
a setting screen, press icon to view available
factory settings and setting ranges.
Figure 2-63: Valve Setup
Valve Frequency
Valve frequency is used to drive the steering valve.
The type of valve being used determines the
frequency. Range is 1 - 5000.
1. Press FREQUENCY ICON .
2. Use the entry screen to establish the valve
frequency.
3. Press
►PAGE RIGHT ARROW to proceed to
Minimum Duty Cycle Left.
►FIELDPILOT SETUP TAB to return to
main FieldPilot Setup.

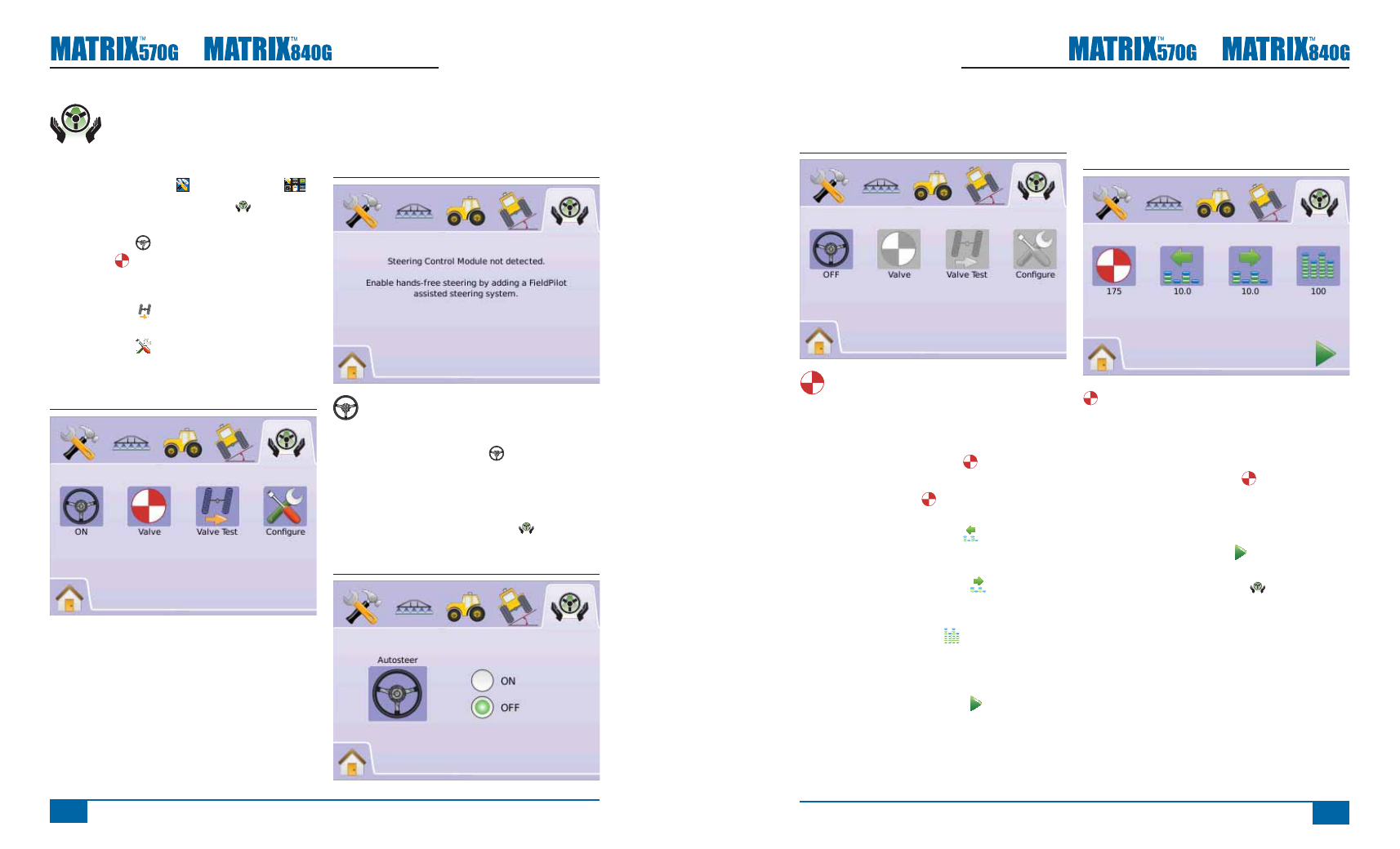

FIELDPILOT SETUP
FieldPilot Setup is used to Enable/
Disable FieldPilot and confi gure Valve
Setup, Valve Test and Confi gure FieldPilot.
1. Select UNIT SETUP from Home Menu .
2. Press FIELDPILOT SETUP TAB .
3. Select from:
►Autosteer – sets FieldPilot to on or off
►Valve – used to confi gure Valve
Frequency, Minimum Duty Cycle Left, Minimum
Duty Cycle Right and Maximum Duty Cycle
►Valve Test – verifi es steering is directed
correctly and is used to fi ne tune the oil fl ow
►Confi gure – used to confi gure Coarse
Adjustment, Fine Adjustment, Deadband and
Lookahead
Figure 2-59: FieldPilot
FieldPilot Unavailable
If a FieldPilot system is not installed, calibration
options will not be available.
Figure 2-60: Assisted Steering Not Detected
Autosteer
Autosteer sets FieldPilot to on or off.
1. Press AUTOSTEER ICON .
2. Select
►On
►Off
3. Press FIELDPILOT SETUP TAB to return to
FieldPilot Setup.
Figure 2-61: Autosteer On/Off
