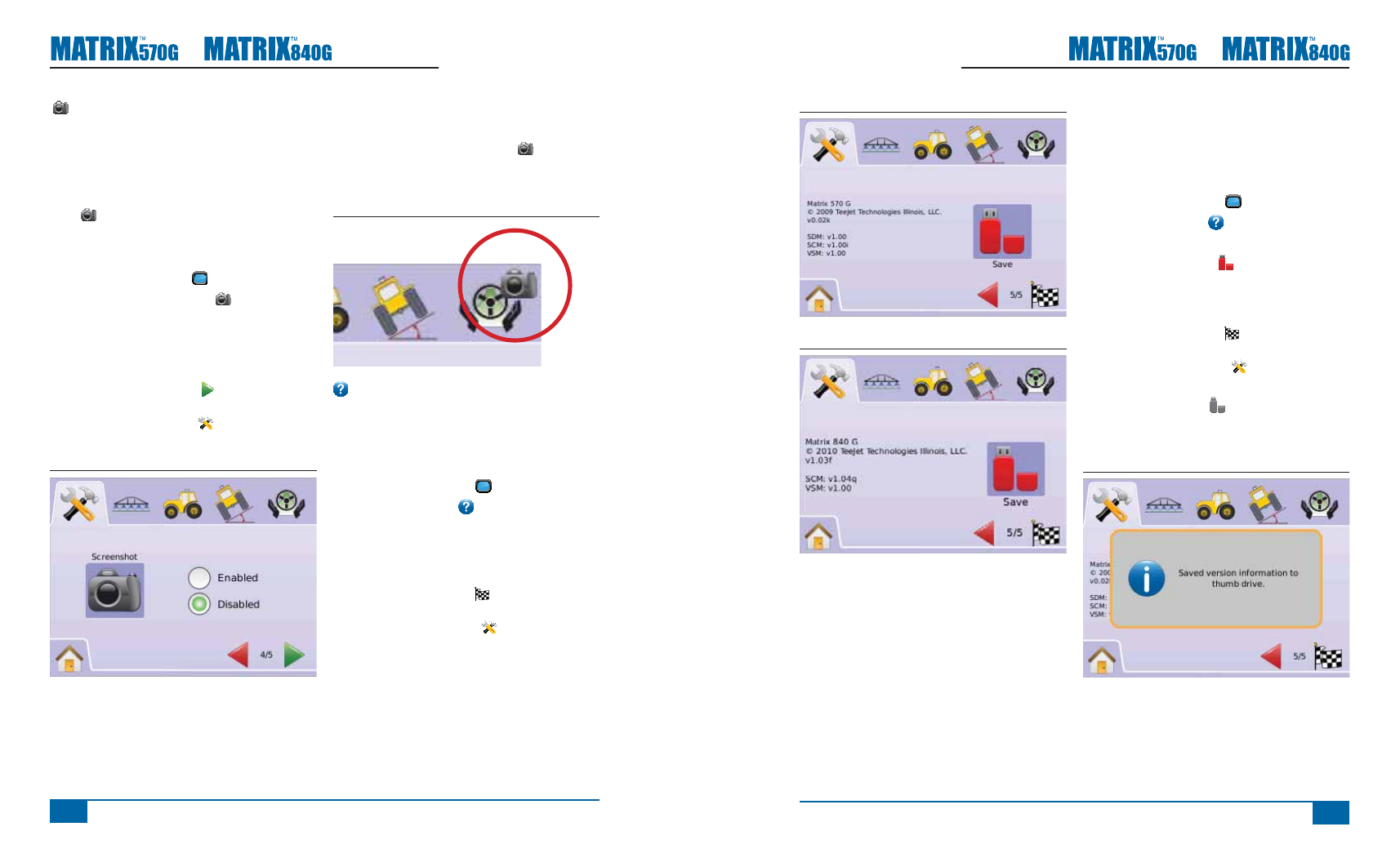

Figure 2-29: About Matrix 570G
Figure 2-30: About Matrix 840G
Save About Information
To aid when troubleshooting problems in the fi eld,
an end user can use Save to download a text fi le
containing current software information to a USB
drive, then e-mail the fi le to support personnel.
1. Press CONSOLE ICON .
2. Press ABOUT ICON .
3. Insert a USB drive in the USB port.
4. Press the SAVE ICON .
“Saved version information to USB drive” will
confi rm save.
5. Press
►CHECKERED FLAG to complete Console
Setup.
►SYSTEM SETUP TAB to return to main
System Setup screen.
NOTE: The SAVE ICON is not available for
selection (grayed out) until a USB drive is
inserted properly.
Figure 2-31: About Verification
Screenshot
To aid when troubleshooting problems in the fi eld,
an end user can use Screenshot to save a screen
to a USB drive, then e-mail the image to support
personnel.
When Screenshot is enabled, a SCREENSHOT
ICON is displayed on the upper right of each
screen.
Enable/Disable
1. Press CONSOLE ICON .
2. Press SCREENSHOT ICON .
3. Select
►Enable
►Disable
4. Press
►PAGE RIGHT ARROW to proceed to
About/Save.
►SYSTEM SETUP TAB to return to main
System Setup screen.
Figure 2-27: Screenshot
Capture an Image
1. Insert a USB drive into the USB port.
2. Press the SCREENSHOT ICON .
NOTE: Screenshot does not capture live feed from
video.
Figure 2-28: Example of Screenshot on Screen
About/Save
About/Save screen displays the system software
version as well as the software versions of modules
connected to the CAN bus.
To view system information:
1. Press CONSOLE ICON .
2. Press ABOUT ICON to view data including:
◄Unit Model Number
◄Software Version
◄Connected Modules
3. Press
►CHECKERED FLAG to complete Console
Setup.
►SYSTEM SETUP TAB to return to main
System Setup screen.
