Steering Angle Indicator
Steering Angle Indicator displays the direction in
which the steering wheel needs to be adjusted.
To activate Steering Angle Indicator:
1. Press the screen to activate the icons and select
the STEERING ANGLE ICON .

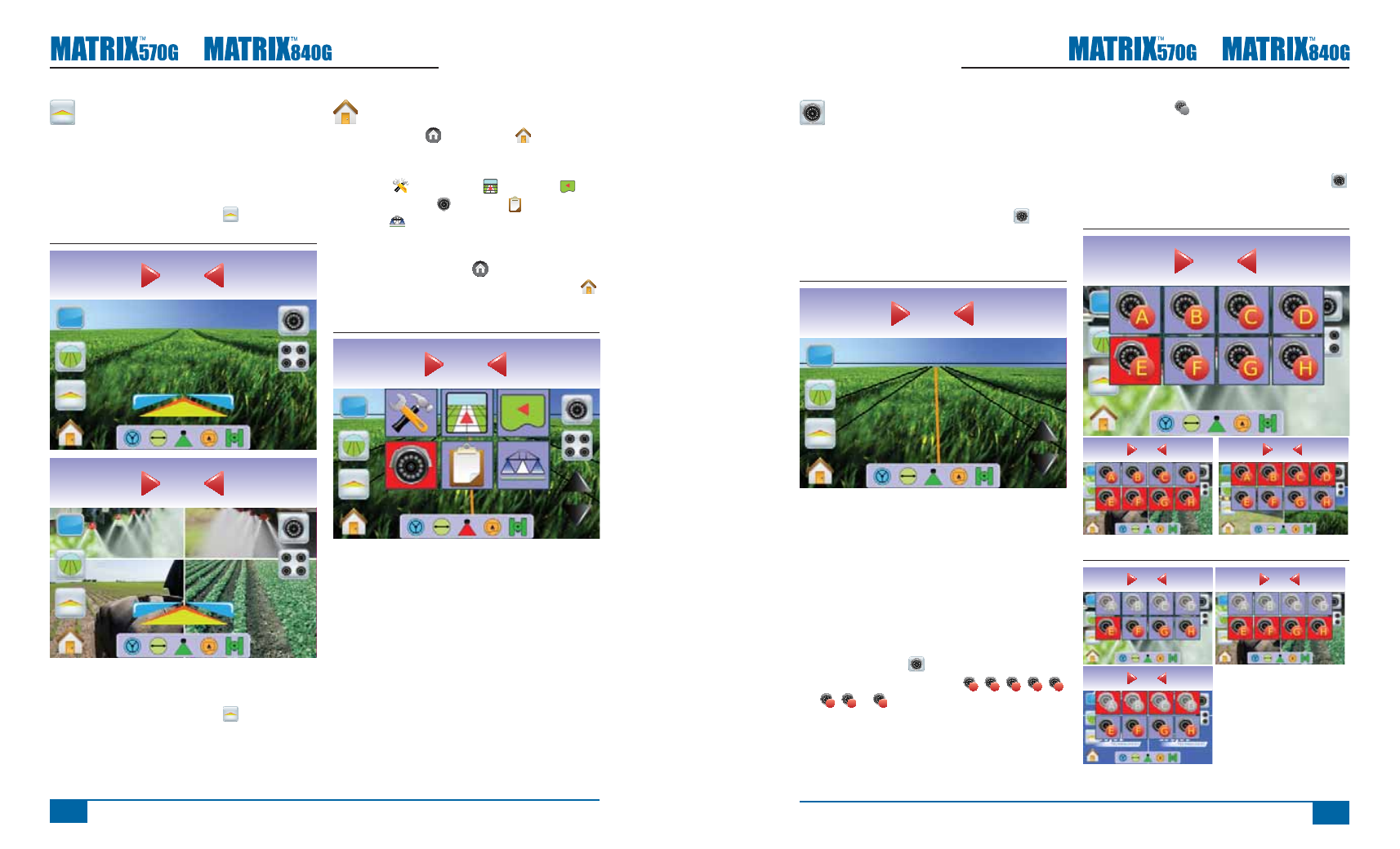

Figure 3-51: Steering Angle Indicator
mph acres
2.3 5.6
0.0
mph acres
2.3 5.6
0.0
To turn off the Steering Angle Indicator:
1. Press the screen to activate the icons and select
the STEERING ANGLE ICON .
Home Menu
The Home Button or Home Icon gives you
access to the unit’s three functions: Setup, Guidance
and Monitoring. The six touch screen Menu Options
(Unit Setup , Vehicle View , Field View ,
RealView Guidance , Job View and Boom
Monitoring ) quickly access all aspects of the unit.
To view the Home Menu options:
1. Press HOME BUTTON or press the screen
to activate the icons and select HOME ICON
in bottom left corner of screen.
Figure 3-52: Home Menu
Swath acres
0.0 0
0.0
Single Camera Selection
One of up to eight camera views can be activated
in RealView Guidance if a Video Selection Module
(VSM) is attached.
No VSM
If a VSM is not installed, the VIDEO ICON is
not available and only one (1) video feed will be
available.
Figure 3-53: VSM Not Installed
Swath acres
0.0 0
0.0
Eight Channel VSM
When a eight (8) channel VSM is on the system, up
to eight (8) cameras can be installed.
NOTE: If installing four or less cameras, all in ports
A, B, C or D, setup screens will follow Four
Channel VSM instructions.
To change active a single camera view:
1. Press the screen to activate the icons and select
the VIDEO ICON .
2. Press the desired CAMERA
A
,
B
,
C
,
D
,
E
,
F
,
G
or
H
to change the video view.
NOTE: A camera
C
is not available for selection
(grayed out) when unavailable. If no icons
are available, a VSM is installed, but a single
camera is directly attached.
NOTE: If a VSM is not installed, the VIDEO ICON
is not available.
Figure 3-54: Camera Selection
Swath acres
0.0 0
0.0
mph acres
0.0 0
0.0
mph acres
0.0 0
0.0
Figure 3-55: Cameras A/B/C/D Unavailable
mph acres
0.0 0
0.0
mph acres
0.0 0
0.0
mph acres
0.0 0
0.0
