Touch Screen Calibration with
Software Version 1.03
Touch Screen Calibration is used to activate a touch
screen calibration.
1. Press CONSOLE ICON .
2. Press CALIBRATE TOUCH SCREEN ICON .
3. Press HAND ICON to enable the touch
screen calibration process.
4. “Begin touch screen calibration?”
Press
►Yes – to begin the Touch Screen Calibration.
►No – to return to the Touch Screen Calibration
screen
5. Press series of 5 crosshairs .
6. Press OK to complete the touch screen
calibration.
7. Press
►PAGE RIGHT ARROW to proceed to
Screenshot.
►SYSTEM SETUP TAB to return to main
System Setup screen.

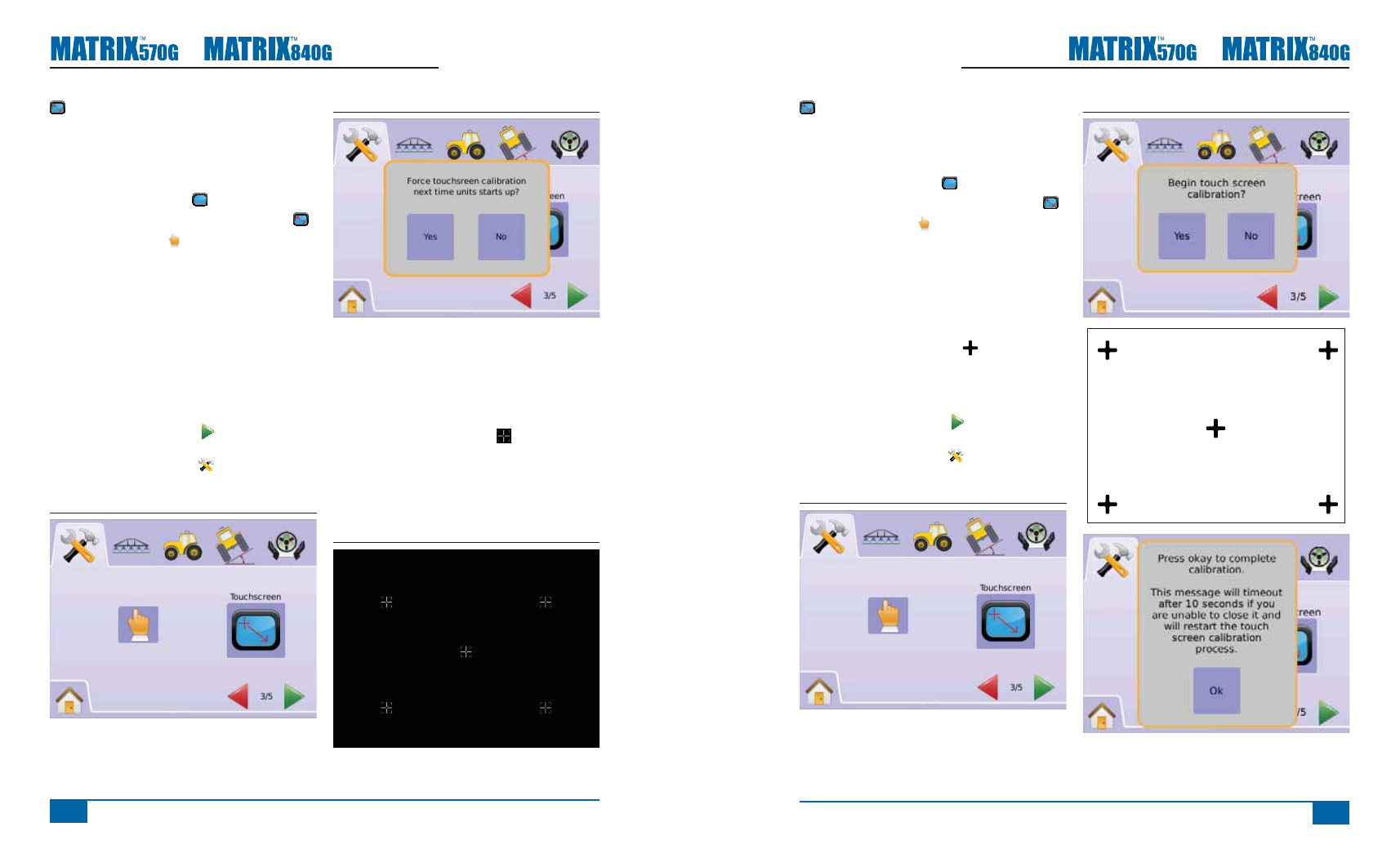

Figure 2-25: Touch Screen Calibration
Figure 2-26: Touch Screen Calibration Process Touch Screen Calibration with
Software Version 1.00 to 1.02
Touch Screen Calibration is used to force a touch
screen calibration the next time a power cycle
occurs.
1. Press CONSOLE ICON .
2. Press CALIBRATE TOUCH SCREEN ICON .
3. Press HAND ICON to enable the touch
screen calibration process.
4. “Force touch screen calibration next time unit
starts up?”
Press
►Yes – to return to the Touch Screen
Calibration screen. The calibration will be
performed when power to the console is cycled.
►No – to return to the Touch Screen Calibration
screen
5. Press
►PAGE RIGHT ARROW to proceed to
Screenshot.
►SYSTEM SETUP TAB to return to main
System Setup screen.
Figure 2-22: Touch Screen Calibration
Figure 2-23: Touch Screen Calibration
Next Power Cycle
The calibration screen will be displayed before the
console boots.
1. “TSLIB calibration utility Touch crosshair to
calibrate”
Press series of 5 crosshairs .
2. Console will resume booting.
After the fi fth (5th) crosshair is pressed, the
calibration process takes approximately 30 - 45
seconds to complete.
Figure 2-24: Touch Screen Calibration Process
TSLIB calibration utility
Touch crosshair to calibrate
