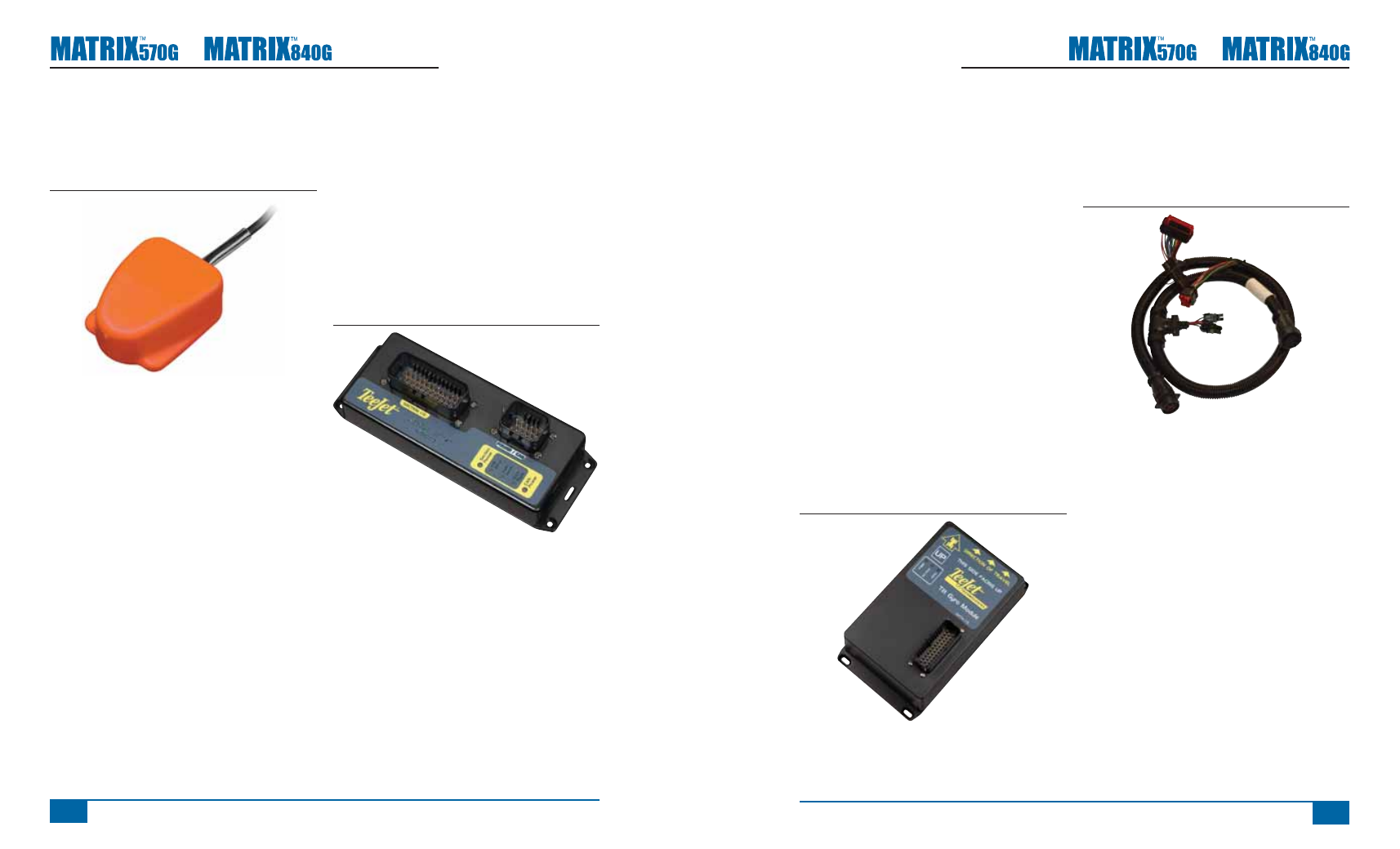

Foot Switch
TeeJet Foot Switch is a convenient method of
engaging FieldPilot. It is connected to the system via
the SCM Harness.
Figure 1-10: Foot Switch
BoomPilot
Section Driver Module
Combined with software built into the Matrix console,
the Section Driver Module (SDM) makes BoomPilot
(automatic boom section control) possible. The
SDM should be combined with the appropriate
cable to interface with your BoomPilot system,
spray controller and/or spraying machine for quick
and easy installation. Section Driver Modules and
their related cables are designed to control as many
boom sections as the spray controller to which they
are connect, up to a maximum of 15 boom sections.
Figure 1-11: Sections Driver Module
Tilt Gyro Module
If your GPS antenna is mounted 12 feet (4 meters)
above the ground, a 10% side slope can cause 2
feet (0.6 meter) of position error. The new TeeJet Tilt
Gyro Compensation Module corrects GPS position
errors caused by side slope conditions. Mounted
on a solid structure on your vehicle, the Tilt Gyro
Compensation Module will intercept GPS signals
from your receiver and provide corrected position
data to your guidance device.
• Diagnostic LEDs indicate status of TCM (Power
status, operating status, and status of incoming
GPS data)
• Weatherproof electrical connector for trouble-
free operation
• Mounting holes built into housing
• Automatically detects GPS sensor baud rate
and adjusts output accordingly
• Compatible with Matrix guidance systems
NOTE: If FieldPilot is being used, a TCM is built into
the system.
Figure 1-12: Tilt Gyro Module
Harnesses
TeeJet harnesses are designed for reliable operation
in harsh environments. Shielding and weatherproof
connections ensure that the cables and electrical
connections are reliable and trouble free.
Figure 1-13: Harness
Cable Extensions
Cable extensions or extended length cables are
available for special applications. Contact your
TeeJet dealer for details if the standard cables
provided with your system are not long enough.
Extended Warranty
TeeJet offers an extended warranty for many
guidance products. Not available in all markets.
Contact your TeeJet dealer for details.
