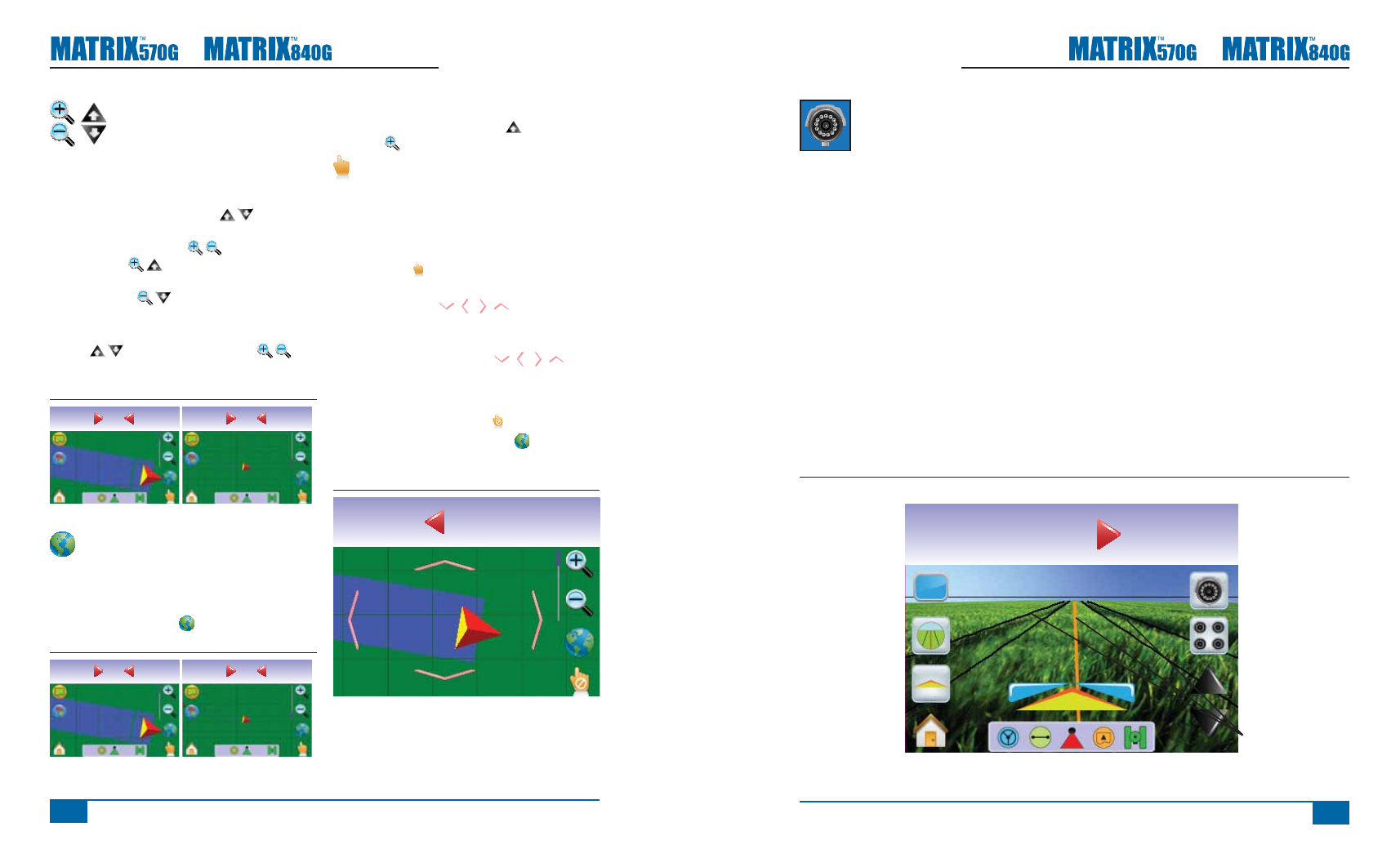

Zoom In/Out
Zoom In/Out is used to adjust the map’s
visible area.
To adjust the view:
1. Press
►ZOOM IN/OUT BUTTONS
►the screen to activate the icons and select the
ZOOM IN/OUT ICONS
.
◄Zoom In will decrease the amount of
map area visible
◄Zoom Out
will increase the amount of
map area visible
NOTE: Press & hold ZOOM IN/OUT BUTTONS
or ZOOM IN/OUT ICONS to
quickly adjust settings.
Figure 3-42: 100% Zoom In to Out
mph acres
10.0 5
0.0
Swath acres
10.1 32
0.0
World View
World View is a one press option to zoom out as far
as possible.
1. Press the screen to activate the icons and select
WORLD VIEW ICON .
Figure 3-43: World View
mph acres
10.0 5
0.0
Swath acres
10.1 32
0.0
To zoom in:
1. Press the ZOOM IN BUTTON or ZOOM IN
ICON .
Pan Mode
Pan Mode allows the screen to be positioned
manually as desired.
To enter Pan Mode and pan across the screen:
1. Press the screen to activate the icons and select
PAN ICON to manually adjust the view on
the screen.
2. Press ARROWS in the
corresponding direction to move the view on
screen (down, left, right, up).
NOTE: Press & hold ARROWS to
quickly adjust settings.
To exit Pan Mode:
1. Press the EXIT PAN ICON .
NOTE: Press WORLD VIEW ICON to center
vehicle on screen.
Figure 3-44: Pan Mode
Swath acres
10.0 10
1.3
NOTE: Pan Mode must be exited in order to return
to any other screen views.
Figure 3-45: Overview of RealView Guidance
On Screen Guidance
Guidelines
►Orange Line – active guidance line
►Black Lines – adjacent guidance lines
REALVIEW GUIDANCE
RealView Guidance allows live video input to be displayed instead of a computer-generated
image.
If a Video Selection Module (VSM) is installed on the system, two video options are available:
• One Camera View - one of up to eight camera inputs can be selected to change the view of the video
input.
• Split Camera View - one of two sets of four camera inputs (A/B/C/D or E/F/G/H) can be selected to
divide the screen into four separate video feeds.
From this screen one can enter guidance over video and steering angle modes.
mph acres
0.53 14.6
5.8
Camera Select
Split Screen
Guideline Adjustment
Guidance Bar
Status Bar
Navigation Guidelines
Full Screen
Guidance Over Video
Steering Angle
Home/Menu Options
or press Home Button
