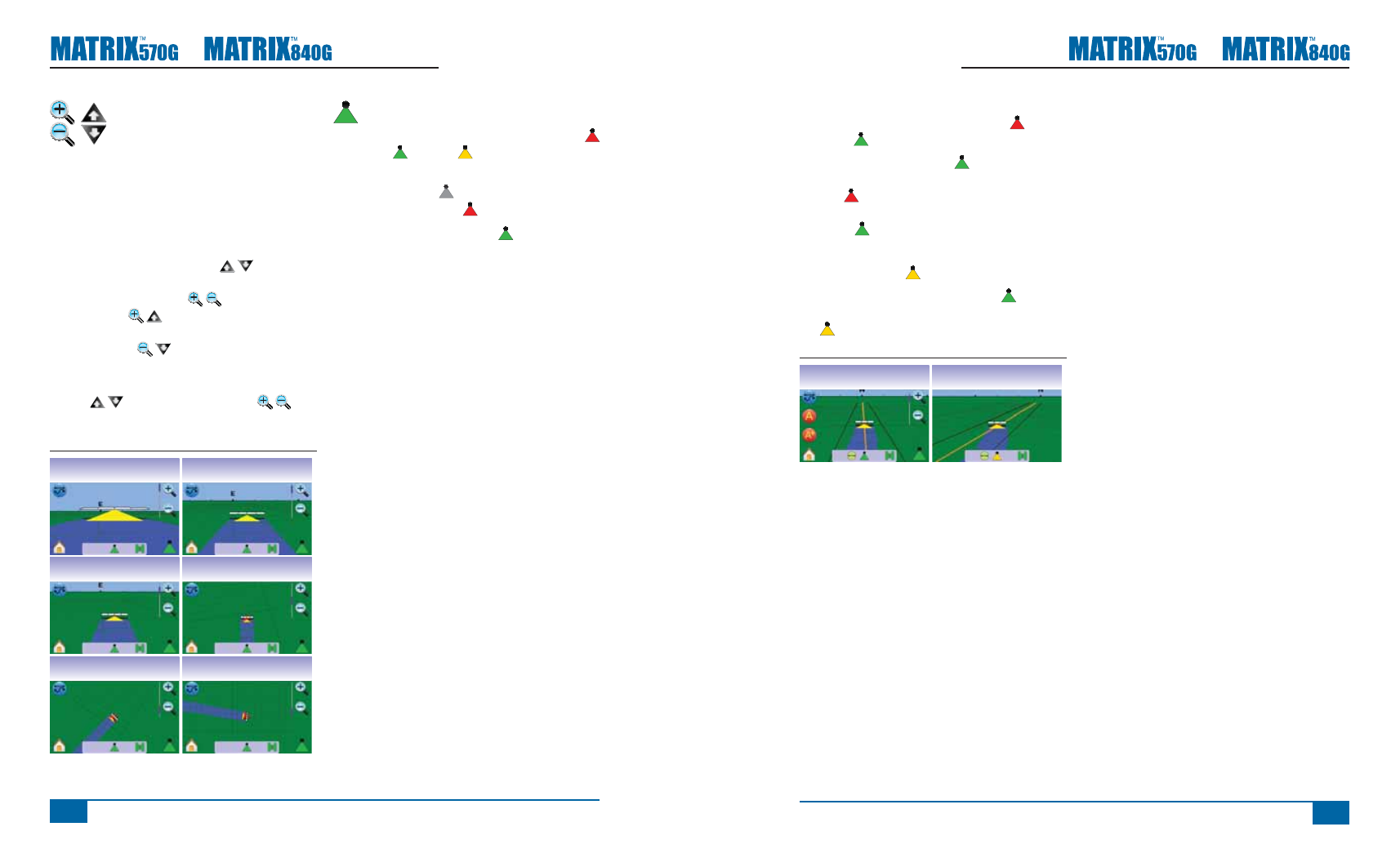

www.teejet.com
66
●
98-05141 R2
67
●
Off/Manual & Automatic
To switch BoomPilot between Off/Manual and
Automatic
1. Press BOOMPILOT ICON .
◄Off/Manual – Status Bar Icon will change to
Red
◄Automatic – Status Bar Icon will change to
Green .
All Booms On Mode
To turn all booms on
1. Press and hold BOOMPILOT ICON .
◄All On – Status Bar Icon will change to Yellow
.
Figure 3-32: Automatic to All Booms On Mode
mph acres
10.2 5
mph acres
10.2 5
Zoom In/Out &
Perspective
Zoom In/Out & Perspective is used to
adjust the vehicle’s view or perspective
to the horizon from vehicle view to bird’s
eye view.
To adjust the view or perspective:
1. Press
►ZOOM IN/OUT BUTTONS
►the screen to activate the icons and select the
ZOOM IN/OUT ICONS
.
◄Zoom In will adjust view to vehicle
view displaying a compass on the horizon
◄Zoom Out
will adjust view to bird’s eye
view
NOTE: Press & hold ZOOM IN/OUT BUTTONS
or ZOOM IN/OUT ICONS to
quickly adjust settings.
Figure 3-31: Zoom In to Out
mph acres
10.0 5
Swath acres
10.1 23
mph acres
10.2 5
Swath acres
10.3 23
mph acres
10.5 5
Swath acres
10.6 23
BoomPilot
BoomPilot is used to set BoomPilot to Off/Manual
, Automatic or All On .
NOTE: GPS is unavailable when the BOOMPILOT
ICON is gray . BoomPilot status bar icon
will be Off/Manual .
NOTE: The BOOMPILOT ICON is unavailable
if a SmartCable or Section Driver Module
(SDM) is not present. To activate the boom,
a status switch must be used. Only one
Boom Section width will be illustrated and
the Status Bar will have no icon.
Guidance with SmartCable or SDM
• Turn the controller master switch to the “On”
position. The individual boom section switches
should remain in the “Off” position.
• In areas where application is not desired,
manually turn “off” the rate controller master
switch to shut off the booms. Turn the master
switch “on” to resume application.
NOTE: This does not apply unless a SmartCable or
SDM is installed on the system.
