CHAPTER 3 – GUIDANCE
The Matrix allows product application and vehicle guidance to be performed simultaneously. Once Unit Setup
is complete, guidance can begin. Providing four guidance modes, Straight A-B , Curved A-B , Circle
Pivot , and Last Pass as well as boundary application , Return to Point guidance and RealView
Guidance Over Video , gives the user options to conform to the project requirements.
Three guidance screens keep the user informed.
• Vehicle View creates a computer-generated image of the vehicle position displayed in the application
area. From this screen one can access options for guidance modes, boundary areas and BoomPilot.
• Field View creates a computer-generated image of the vehicle position and application area from an
aerial perspective. From this screen one can access options for boundary areas and a marked point or
enter World View and Pan modes.
• RealView Guidance allows live video input to be displayed instead of a computer-generated image.
If a Video Selection Module (VSM) is installed on the system, two video options are available:
►One Camera View - one of up to eight camera inputs can be selected to change the view of the video
input.
►Split Camera View - one of two sets of four camera inputs (A/B/C/D or E/F/G/H) can be selected to
divide the screen into four separate video feeds.
From this screen one can enter guidance over video and steering angle modes.
GUIDANCE OPERATION
MODES
Guidance Modes include Straight
A-B , Curved A-B , Circle Pivot , and Last
Pass .
Field boundaries establish application area and
determine the no apply zone. A Boundary can be
established in Last Pass or Field View .
Straight A-B Guidance
Straight A-B guidance provides straight line
guidance based on A and B reference points. The
original A and B point are used to calculate all other
parallel guidelines.

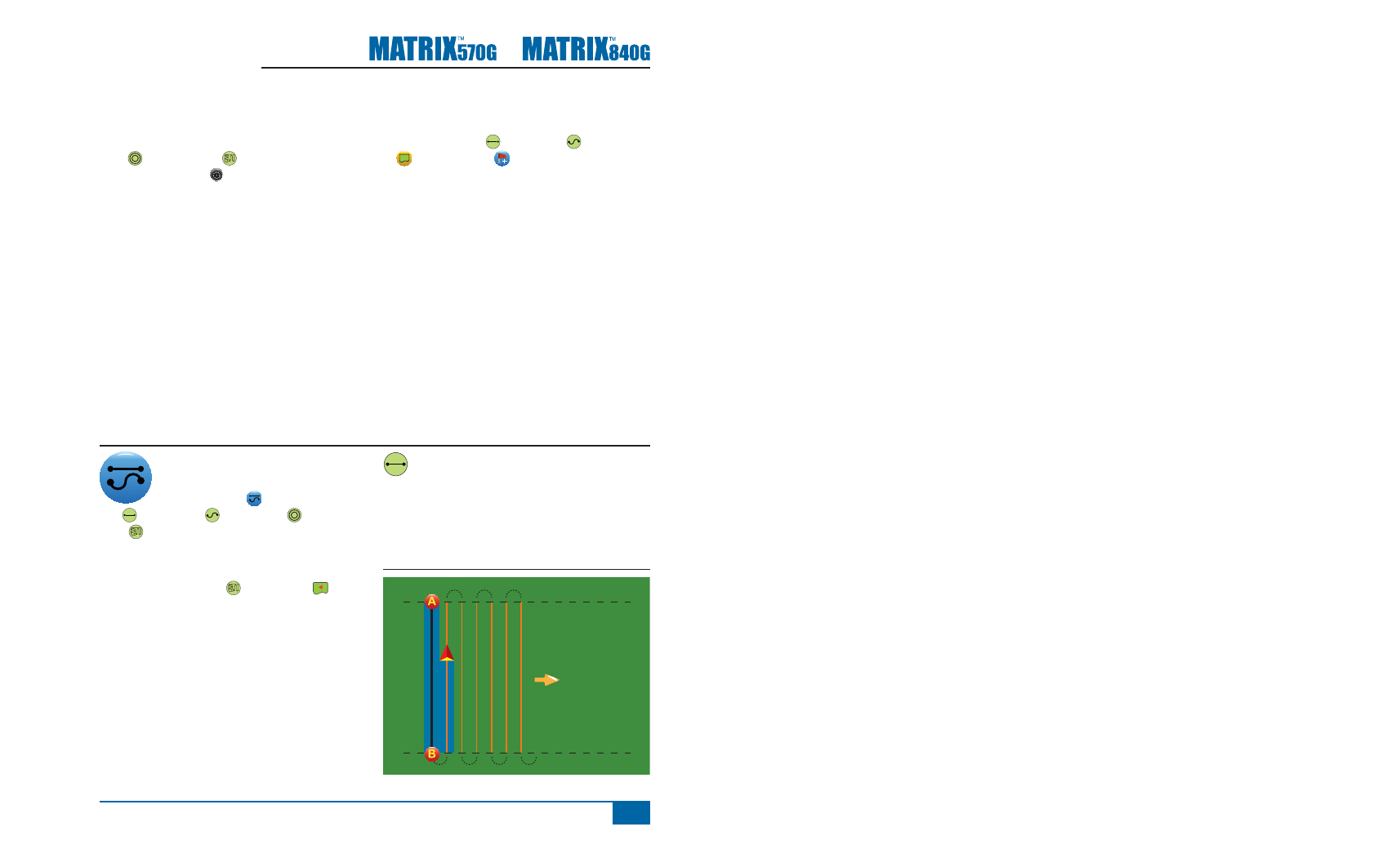

Figure 3-1: Straight A-B Guidance
