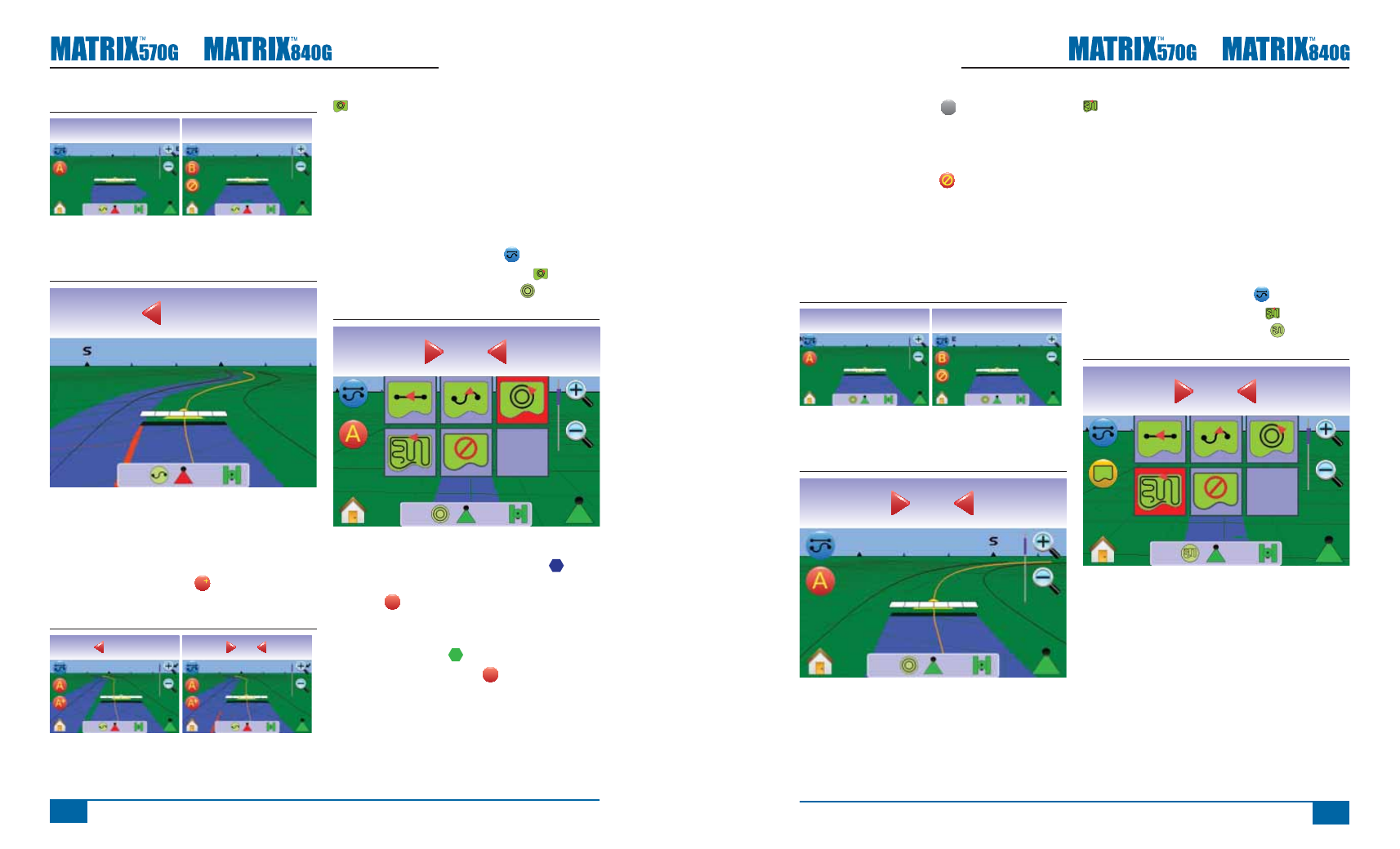

www.teejet.com
62
●
98-05141 R2
63
●
NOTE: The MARK B ICON B is not available for
selection (grayed out) until the minimum
distance is traveled (164 ft / 50.0 m) or if
driving in a straight line.
Use CANCEL MARK ICON to cancel the Mark A
command and revert to the previous A-B guideline
(when established).
NOTE: It is not necessary to drive the entire
circumference of the center pivot in order to
initiate guidance.
Figure 3-22: Mark A and B Points
mph acres
1.20 10.5 Mark A
mph acres
2.60 10.5 Mark B
The console will begin providing navigation
information.
Figure 3-23: Circle Pivot Guidance
Swath acres
5.36 0
0.0
Last Pass Guidance
Last Pass Guidance offers true last pass navigation.
The console will automatically detect the nearest
applied area and establish parallel guideline based
on that area.
NOTE: If a boundary is established but no
application occurred during the boundary
process, guidance will not initiate.
Activate Last Pass Guidance
1. Press the screen to activate the icons and select
the GUIDANCE MODE ICON .
2. Select LAST PASS GUIDANCE .
◄Status Bar Icon will change to .
Figure 3-24: Guidance Mode Selection
Swath acres
0.0 0
0.0
Last Pass
1. Drive to a desired location to apply the fi rst pass.
2. Travel next to the applied area.
The console will begin providing navigation
information.
NOTE: If a boundary is established but no
application occurred during the boundary
process, guidance will not initiate.
Figure 3-18: Mark A and B Points
mph acres
1.20 10.5 Mark A
mph acres
2.60 10.5 Mark B
The console will begin providing navigation
information.
Figure 3-19: Curved A-B Guidance
Swath acres
8.96 -1
3.2
A+ Nudge Feature
The A+ Nudge feature allows the existing A-B
guideline to be shifted to the vehicle’s current
location.
1. Press A+ NUDGE ICON
A to establish the new
guideline.
Figure 3-20: A+ Nudge
Swath acres
3.80 -2
5.1
Swath acres
3.81 -2
0.0
Circle Pivot Guidance
Circle Pivot guidance provides guidance around a
central location that radiates inward or outward. It
is used for product application in a center pivot fi eld
while being guided along a circular guideline that
matches a center pivot irrigation system radius.
Activate Circle Pivot Guidance
1. Press the screen to activate the icons and select
the GUIDANCE MODE ICON .
2. Select CIRCLE PIVOT GUIDANCE .
◄Status Bar Icon will change to .
Figure 3-21: Guidance Mode Selection
Swath acres
0.0 0
0.0
Marking A and B Points
1. Drive to the desired location of Point A .
2. While the vehicle is in motion, press MARK A
ICON A .
3. Drive along the arc that the pivot would create
(a wheel track is a good guide) to the desired
location of Point B .
4. Press the MARK B ICON B to establish the A-B
arc.
