Form I-MAPS II, P/N 206131 (Rev 13), Page 21

��

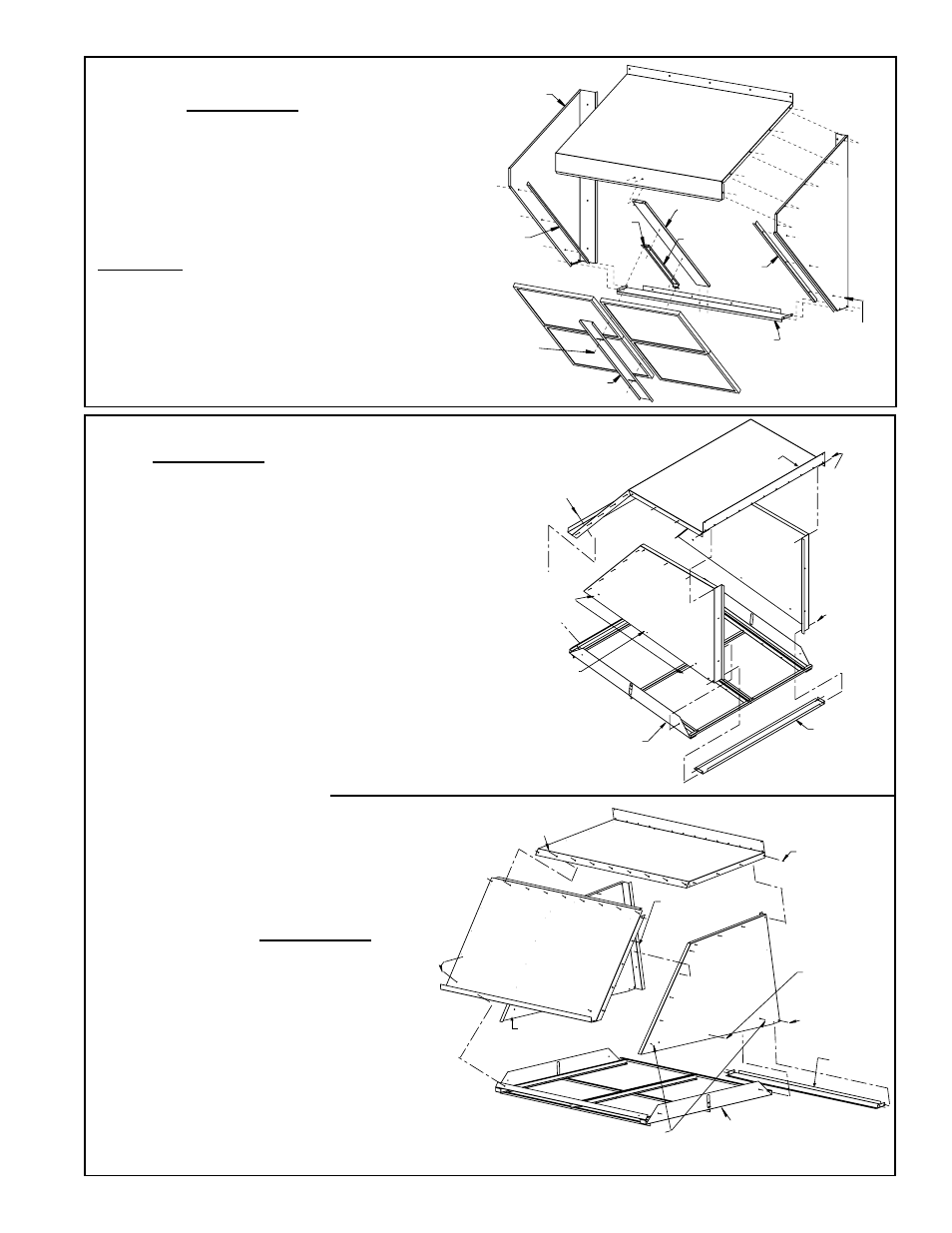

FIGURE 10A - Installation of Outside

Air Hood, Option AS16, on Cabinet

Sizes A and B without an optional

power exhaust

(For a cross-reference of cabinet size

and model size, refer to the Appendix,

page 58.)

Filter Sizes
Cabinet A - (4) 1x16x20
Cabinet B - (4) 1x16x25

��

FIGURE 10B - Installation of Outside Air

Hood, Option AS19, on Cabinet Size A with

an optional power exhaust (Option PE1)

(For a cross-reference of cabinet size and model

size, refer to the Appendix, page 58.)

FIGURE 10C - Installation of

Outside Air Hood, Option AS19,

on Cabinet Size B with an optional

power exhaust (Option PE2)

(For a cross-reference of cabinet size and

model size, refer to the Appendix, page

58.)

NOTE: If filter tray is mistak-

enly installed without filters in

place, see instructions in Form

O-MAPS for installing filters.

��

��

��
