Form I-MAPS II, P/N 206131 (Rev 13), Page 13
� ������
������
�
�������������
�
� ������������
�
�
�
�
�������������
������
������
������
���
���������
����� �������
���
���������
�����
������
������
�����������������
����������������������
����������������������
����������������������
�����������������������
�������������������
���������������������
��������������������
�����������������������
�����������������������
�����������
�������

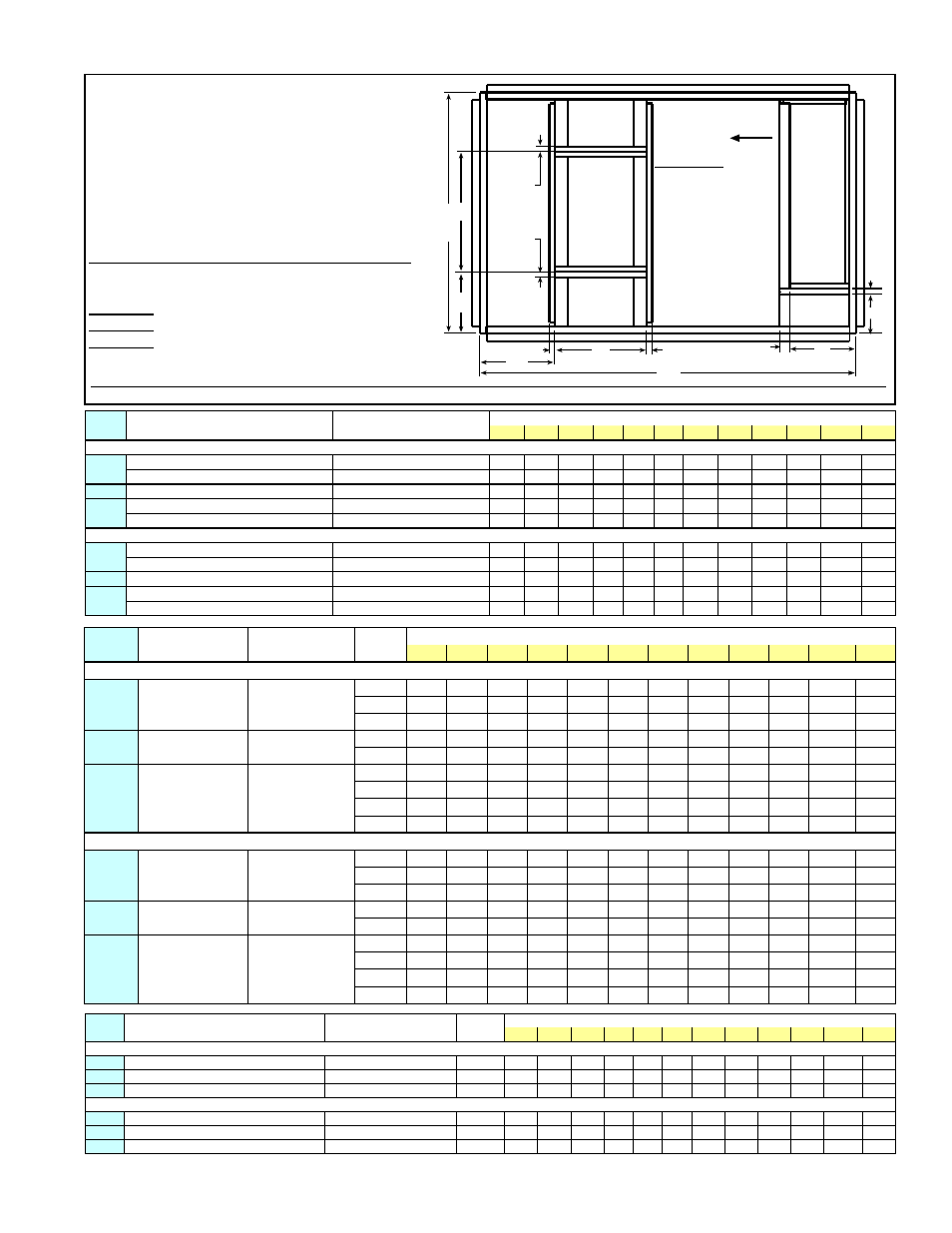

FIGURE 5 - Roof Curb and
Duct Opening Dimensions
IMPORTANT NOTES: Area enclosed by roof
curb must comply with clearance to combustible
materials. If the roof is constructed of combustible
materials, area within the roof curb must be
ventilated, left open, or covered with non-
combustible material which has an "R" value of
at least 5. If area within curb is left open, higher
radiated sound levels may result.
If area inside curb is open, roof opening
dimensions must be no greater than:
Cabinet A - 34-13/16" x 69" (884 x 1753mm);
Cabinet B - 49-13/16" x 69" (1265 x 1753mm);
Cabinet C - 61-5/16" x 97-7/8" (1557 x 2486mm).
NOTE: See Appendix, page 58, for cross-reference
by Model Size and Cabinet Size.
Dimensions - Downflow Roof Curb Option CJ31
Cabinet
Size
RCA Model Size RDA Model Size
Illustration Codes - FIGURE 5
A B C D E F G H J K L M
Curb Dimensions for Cooling Only Model RCA, RDA by Cabinet Size, Model Size - inches (±1/8)
A
025, 037, 059, 060, 077, 078, 090, 108, 109, 120 102, 114, 126, 144 6-1/8 26-1/2 24 12 24 12 38-5/8 13-1/4 17-1/2 12-7/8 72-3/4 12-1/4
164 -- N/A N/A 24 12 24 12 38-5/8 13-1/4 17-1/2 12-7/8 72-3/4 12-1/4
B 078, 090, 108, 120, 139, 166, 184, 198 102, 114, 126, 144, 188, 220, 234 N/A N/A 36 12 36 12 53-5/8 13-1/4 17-1/2 12-7/8 72-3/4 12-1/4
C
176, 226 230, 280 19-3/8 32-3/8 30 18 46 15 65-1/8 20-1/4 24-3/4 17-7/8 101-5/8 13-1/4
292, 374 346, 428, 446 10-3/4 49-1/2 47 18 46 15 65-1/8 20-1/4 24-3/4 17-7/8 101-5/8 13-1/4
Curb Dimensions for Cooling Only Model RCA, RDA by Cabinet Size, Model Size - mm (±3)
A
025, 037, 059, 060, 077, 078, 090, 108, 109, 120 102, 114, 126, 144 156 673 610 305 610 305 981 337 445 327 1848 311
164 -- N/A N/A 610 305 610 305 981 337 445 327 1848 311
B 078, 090, 108, 120, 139, 166, 184, 198 102, 114, 126, 144, 188, 220, 234 N/A N/A 914 305 914 305 1362 337 445 327 1848 311
C
176, 226 230, 280 492 822 762 457 1168 381 1654 514 629 454 2581 337
292, 374 346, 428, 446 273 1257 1194 457 1168 381 1654 514 629 454 2581 337
When cutting only duct openings, cut opening 1" (25mm) larger than duct size to allow clearance for installation.
Cabinet
Size *
RDCA Model Size* RDDA, Model Size*
Gas Heat
Size *
Illustration Codes - FIGURE 5
A B C D E F G H J K L M
Curb Dimensions for Cooling/Gas Heat Makeup Air Model RDCA, RDDA by Cabinet Size, Model Size - inches (±1/8)
A
025, 037, 059, 060,
077, 078, 090, 108,
109, 120, 164
102, 114, 126, 144
100 9-7/8 19 18 12 24 12 38-5/8 13-1/4 17-1/2 12-7/8 72-3/4 12-1/4
150 6-1/8 26-1/2 24 12 24 12 38-5/8 13-1/4 17-1/2 12-7/8 72-3/4 12-1/4
200 N/A N/A 24 12 24 12 38-5/8 13-1/4 17-1/2 12-7/8 72-3/4 12-1/4
B
078, 090, 108, 120,
139, 166, 184, 198
102, 114, 126, 144,
188, 220, 234
250 6-1/8 41-1/2 36 12 36 12 53-5/8 13-1/4 17-1/2 12-7/8 72-3/4 12-1/4
300 N/A N/A 36 12 36 12 53-5/8 13-1/4 17-1/2 12-7/8 72-3/4 12-1/4
C 176, 226, 292, 374
230, 280, 346, 428,
446
350, 400 19-3/8 32-3/8 30 18 46 15 65-1/8 20-1/4 24-3/4 17-7/8 101-5/8 13-1/4
450, 500 13-1/4 44-1/2 42 18 46 15 65-1/8 20-1/4 24-3/4 17-7/8 101-5/8 13-1/4
550, 600 10-3/4 49-1/2 47 18 46 15 65-1/8 20-1/4 24-3/4 17-7/8 101-5/8 13-1/4
650, 700 8-1/4 55 52 18 46 15 65-1/8 20-1/4 24-3/4 17-7/8 101-5/8 13-1/4
Curb Dimensions for Cooling/Gas Heat Makeup Air Model RDCA, RDDA by Cabinet Size, Model Size - mm (±3)
A
025, 037, 059, 060,
077, 078, 090, 108,
109, 120, 164
102, 114, 126, 144
100 251 483 457 305 610 305 981 337 445 327 1848 311
150 156 673 610 305 610 305 981 337 445 327 1848 311
200 N/A N/A 610 305 610 305 981 337 445 327 1848 311
B
078, 090, 108, 120,
139, 166, 184, 198
102, 114, 126, 144,
188, 220, 234
250 156 1054 914 305 914 305 1362 337 445 327 1848 311
300 N/A N/A 914 305 914 305 1362 337 445 327 1848 311
C 176, 226, 292, 374
230, 280, 346, 428,
446
350, 400 492 822 762 457 1168 381 1654 514 629 454 2581 337
450, 500 337 1130 1067 457 1168 381 1654 514 629 454 2581 337
550, 600 273 1257 1194 457 1168 381 1654 514 629 454 2581 337
650, 700 210 1397 1321 457 1168 381 1654 514 629 454 2581 337
Cabinet
Size*
RECA Model Size * REDA Model Size *
* Electric
Heat Size
Illustration Codes - FIGURE 5
A B C D E F G H J K L M
Curb Dimensions for Cooling/Electric Heat Makeup Air Model RECA, REDA by Cabinet Size, Model Size - inches (±1/8)
A 025, 037, 059, 060, 077, 078, 090, 108, 109, 120, 164 102, 114, 126, 144 All N/A N/A 24 12 24 12 38-5/8 13-1/4 17-1/2 12-7/8 72-3/4 12-1/4
B 078, 090, 108, 120, 139, 166, 184, 198 102, 114, 126, 144, 188, 220, 234 All N/A N/A 36 12 36 12 53-5/8 13-1/4 17-1/2 12-7/8 72-3/4 12-1/4
C 176, 226, 292, 374 230, 280, 346, 428, 446 All 10-3/4 49-1/2 47 18 46 15 65-1/8 20-1/4 24-3/4 17-7/8 101-5/8 13-1/4
Curb Dimensions for Cooling/Electric Heat Makeup Air Model RECA, REDA by Cabinet Size, Model Size - mm (±3)
A 025, 037, 059, 060, 077, 078, 090, 108, 109, 120, 164 102, 114, 126, 144 All N/A N/A 610 305 610 305 981 337 445 327 1848 311
B 078, 090, 108, 120, 139, 166, 184, 198 102, 114, 126, 144, 188, 220, 234 All N/A N/A 914 305 914 305 1362 337 445 327 1848 311
C 176, 226, 292, 374 230, 280, 346, 428, 446 All 273 1257 1194 457 1168 381 1654 514 629 454 2581 337
* See Appendix, page 58, for cross-reference by Model Size/Heat Size and Cabinet Size
