EVCO S.p.A.
EVF818 | Installer manual ver. 1.0 | Code 144F818E104
page 69 of 76
5.
Connect the evaporator fan to the EVDFAN1 phase cut output.
6.
Connect the device power supply.
7.
Connect the EVDFAN1 power supply.
In order to use EVDFAN1, the phase that powers the controller must be the same that powers EVDFAN1.
For further information, consult the documentation relative to EVDFAN1.
14.5
Print module PM 100A X9S001
14.5.1
Introduction
PM 100A X9S001 is a print module.
Using the module, it is possible to print information relative to the temperatures detected by the probes, at the alarms
and at the errors.
14.5.2
Description

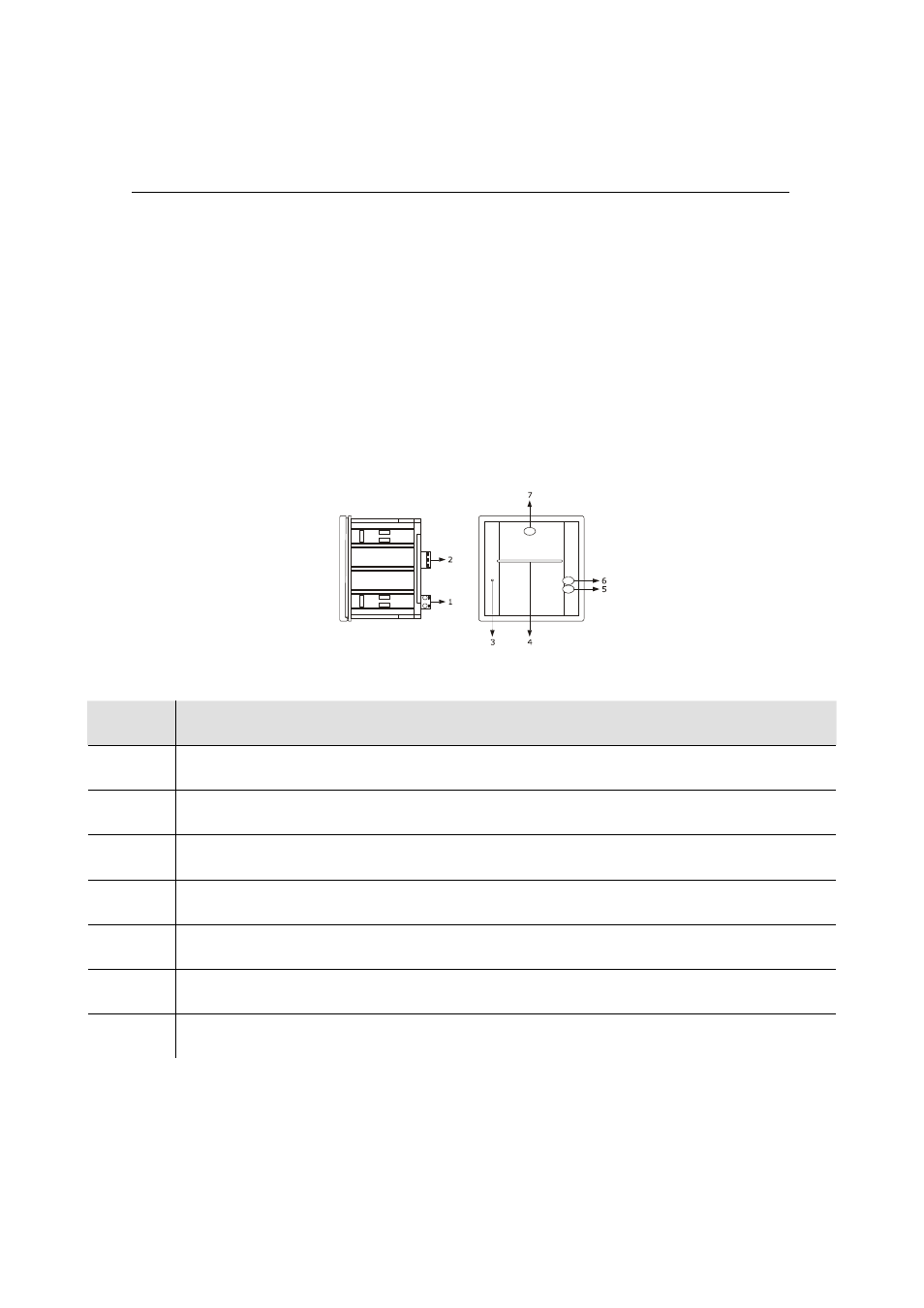

The following drawing illustrates the aspect of the PM 100A X9S001.
The following table illustrates the meaning of the PM 100A X9S001 parts.
Part
Meaning
1
power supply
2
RS-485 type serial port
3
On/stand-by LED
4
slot for paper advancement
5
slot for manual paper advancement
6
On/stand-by key
7
key for opening front panel
