EVCO S.p.A.

EVF818 | Installer manual ver. 1.0 | Code 144F818E104

page 15 of 76

4

ELECTRIC CONNECTION

4.1

Electric connection

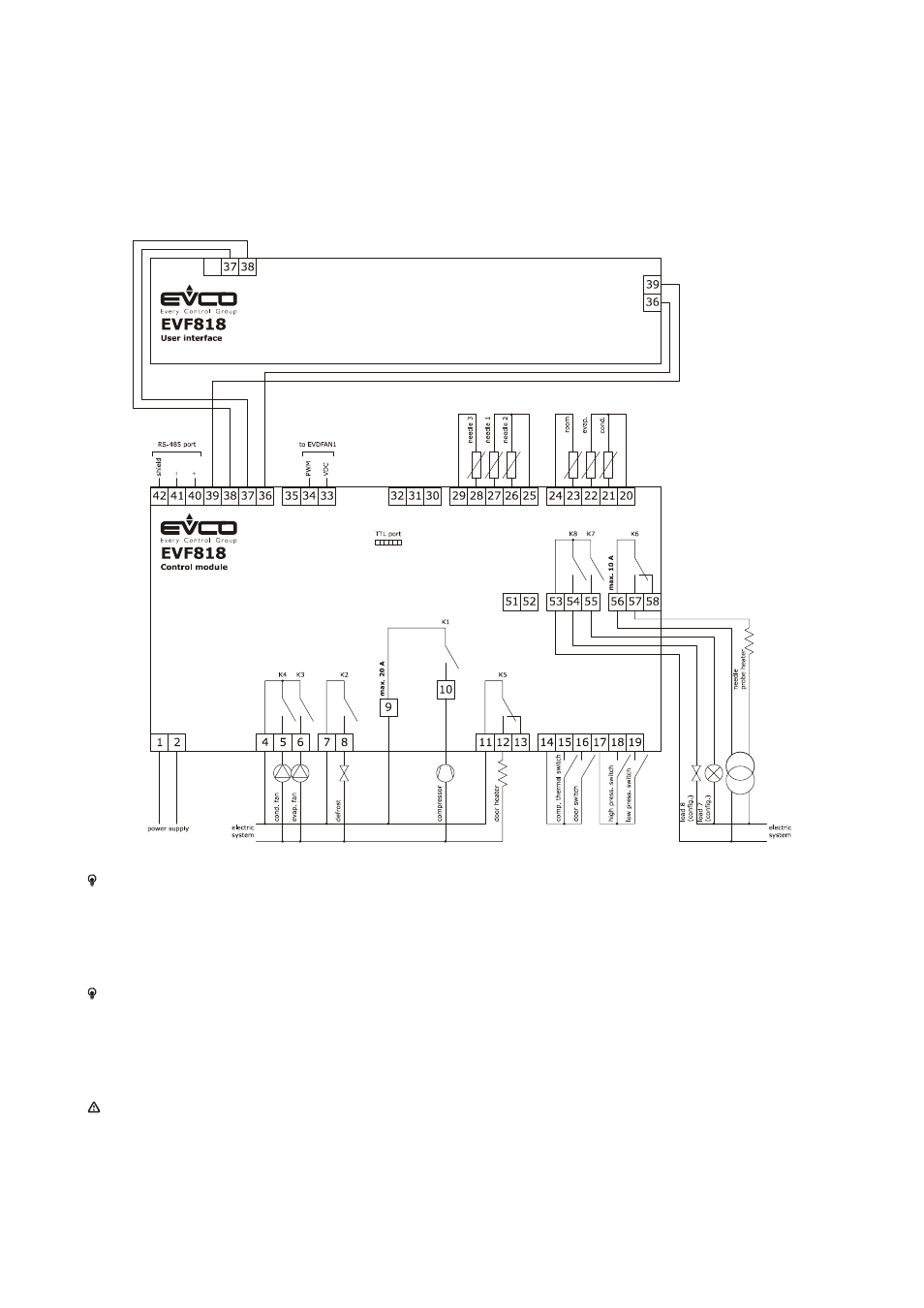

The following drawing illustrates the EVF818 electric connection.

The utility managed by the K7 output, depends on parameter u11, as follows:

-

cabinet light (u11 = 0, pre-defined setting)

-

UV light (u11 = 1).

For the settings relative to the parameters, see chapter 10 “CONFIGURATION”.

The utility managed by the K8 output, depends on parameter u1, as follows:

-

pump down valve (u1 = 0, per-defined setting)

-

alarm (u1 = 1).

For the settings relative to the parameters, see chapter 10 “CONFIGURATION”.

The TTL port is the port used for connection of the controller to the EVKEY programming key.
