EVCO S.p.A. EVF818 | Installer manual ver. 1.0 | Code 144F818E104
page 68 of 76
14.4.2 Description

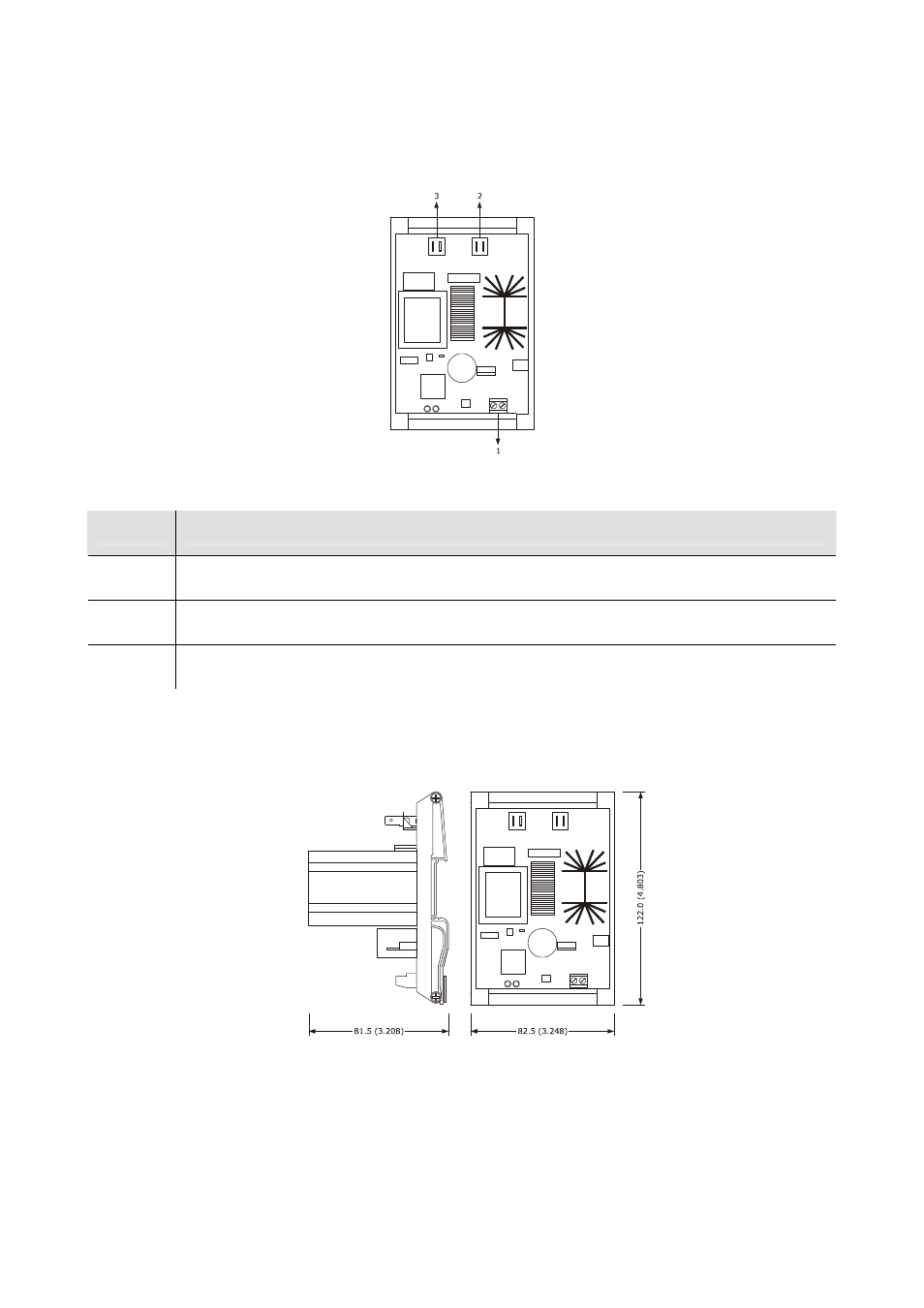

The following drawing illustrates the aspect of the EVDFAN1.
The following table illustrates the meaning of EVDFAN1 parts.
Part Meaning
1 control signal input
2 power supply
3 phase cut output
14.4.3 Dimensions
The following drawing illustrates the EVDFAN1 dimensions; these are expressed in mm (in).
14.4.4 Connection to the device
Operate as follows:
1. Make sure that parameter F0 is set at 3.
2. Cut the device power supply off.
3. Cut the EVDFAN1 power supply off.
4. Connect the device PWM analogue output to the EVDFAN1 control signal input.
