2.2 Description of the control module

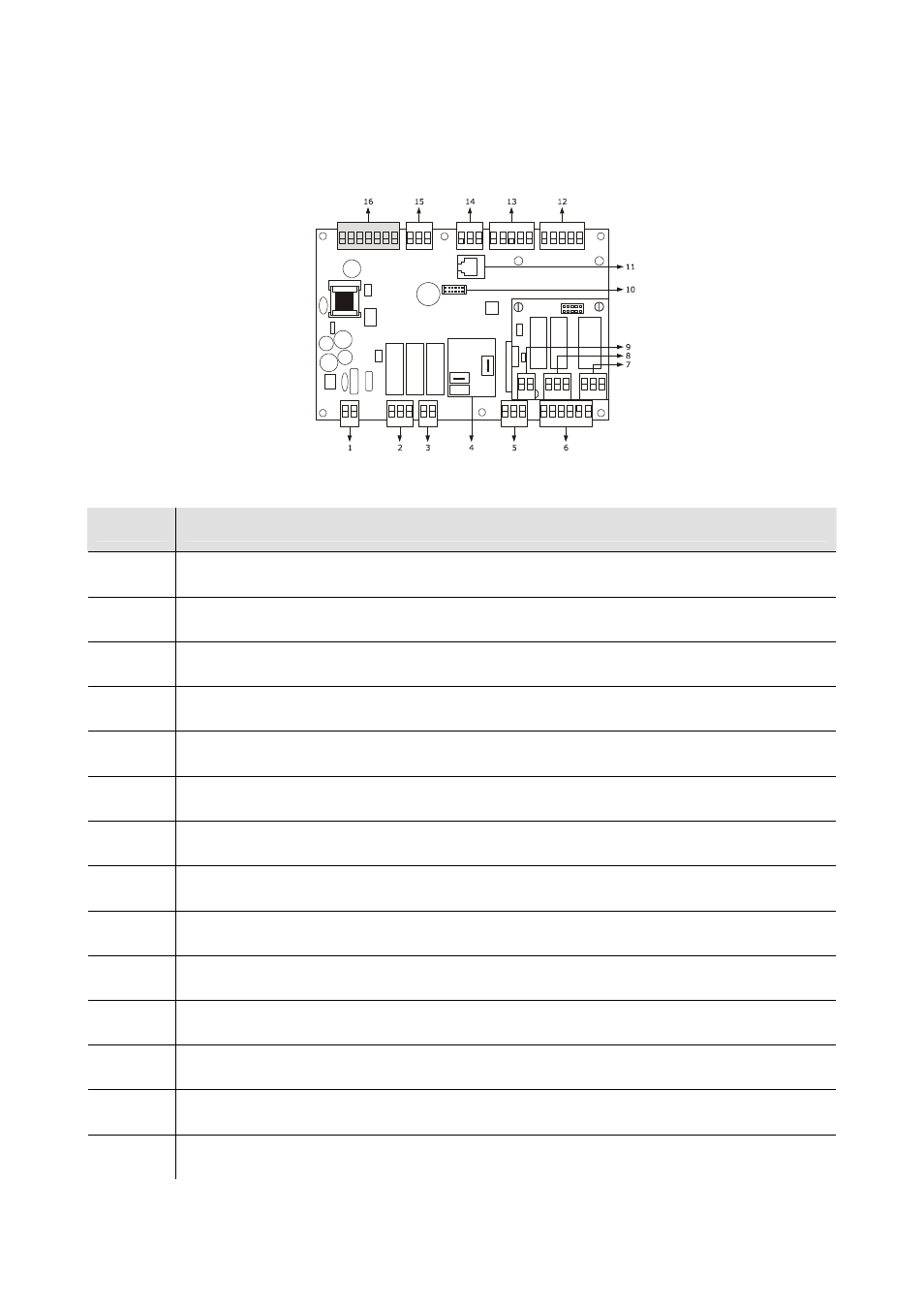

The following drawing illustrates the aspect of the EVF818 control module.
The following table illustrates the meaning of EVF818 control module parts.
Part Meaning
1 power supply
2 digital outputs K3 and K4
3 digital output K2
4 digital output K1
5 digital output K5
6 digital inputs
7 digital output K6
8 digital outputs K7 and K8
9 reserved
10 TTL type serial port
11 reserved
12 digital inputs (cabinet probe, evaporator probe and condenser probe)
13 digital inputs (needle probe 1, needle probe 2 and needle probe 3)
14 reserved
