EVCO S.p.A. EVF818 | Installer manual ver. 1.0 | Code 144F818E104
page 64 of 76
6. The 3 digit display shows “PrG” on conclusion of the upload and the EVKEY signalling LED will emit a green light
again.
7. Press and release a key to restore normal display.
8. Disconnect the EVKEY Micromatch connector from the device serial port.
Operate as follows to abandon the procedure:
9. Do not operate for 60 s.
10. Disconnect the EVKEY Micromatch connector from the device serial port.
For further information, consult the documentation relative to EVKEY.
14.2 Data recording device EVUSBREC01
14.2.1 Introduction
EVUSBREC01 is a data recording device.
Using the device, it is possible to record controller data and their download (via USB, into a text document).
14.2.2 Description

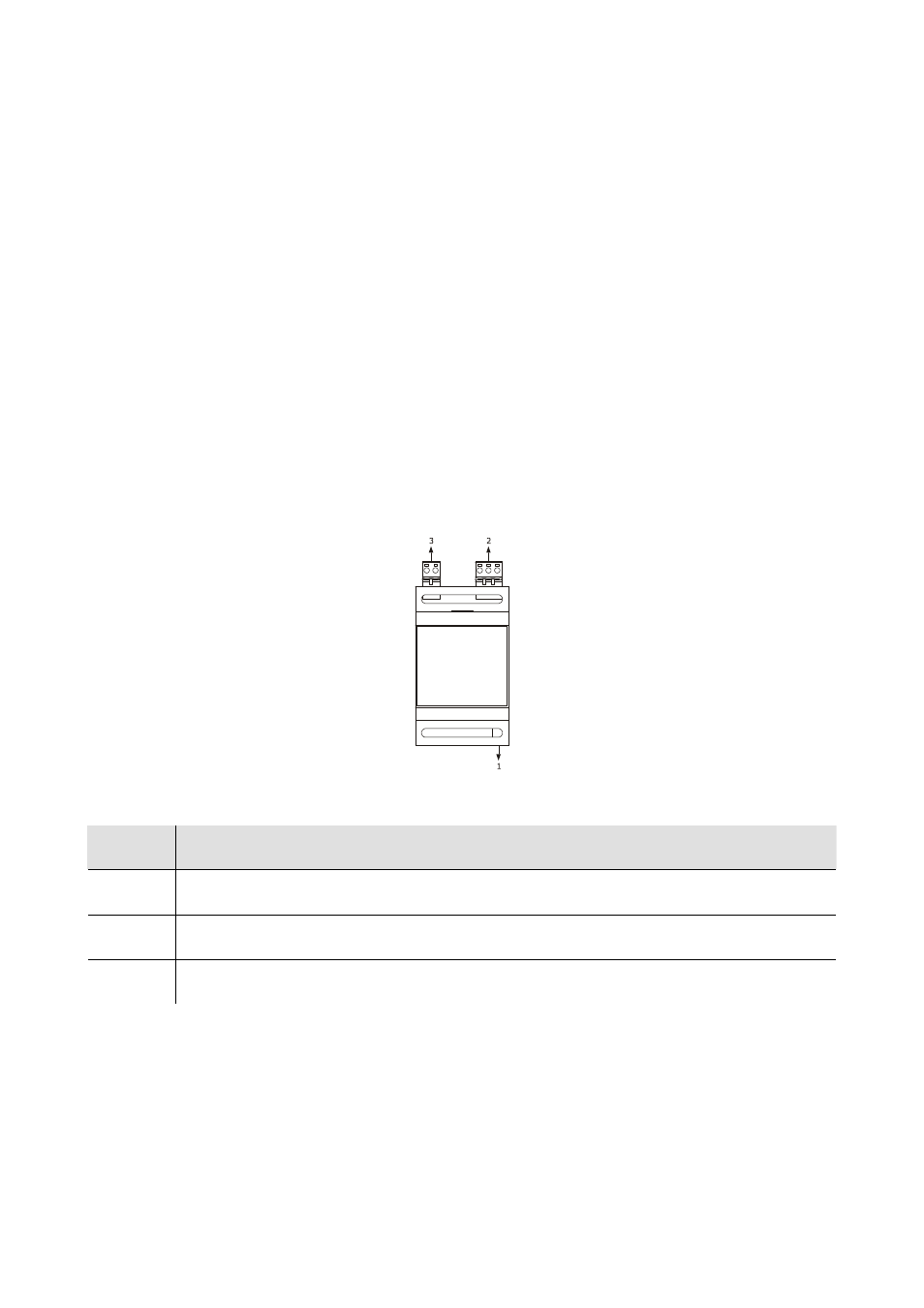

The following drawing illustrates the aspect of the EVUSBREC01.
The following table illustrates the meaning of the EVUSBREC01 parts.
Part Meaning
1 USB type serial port
2 RS-485 type serial port
2 power supply
