Page 13
EVCO S.p.A.
EVF818 | Installer manual ver. 1.0 | Code 144F818E104
page 13 of 76
3
DIMENSIONS AND INSTALLATION
3.1
User interface dimensions

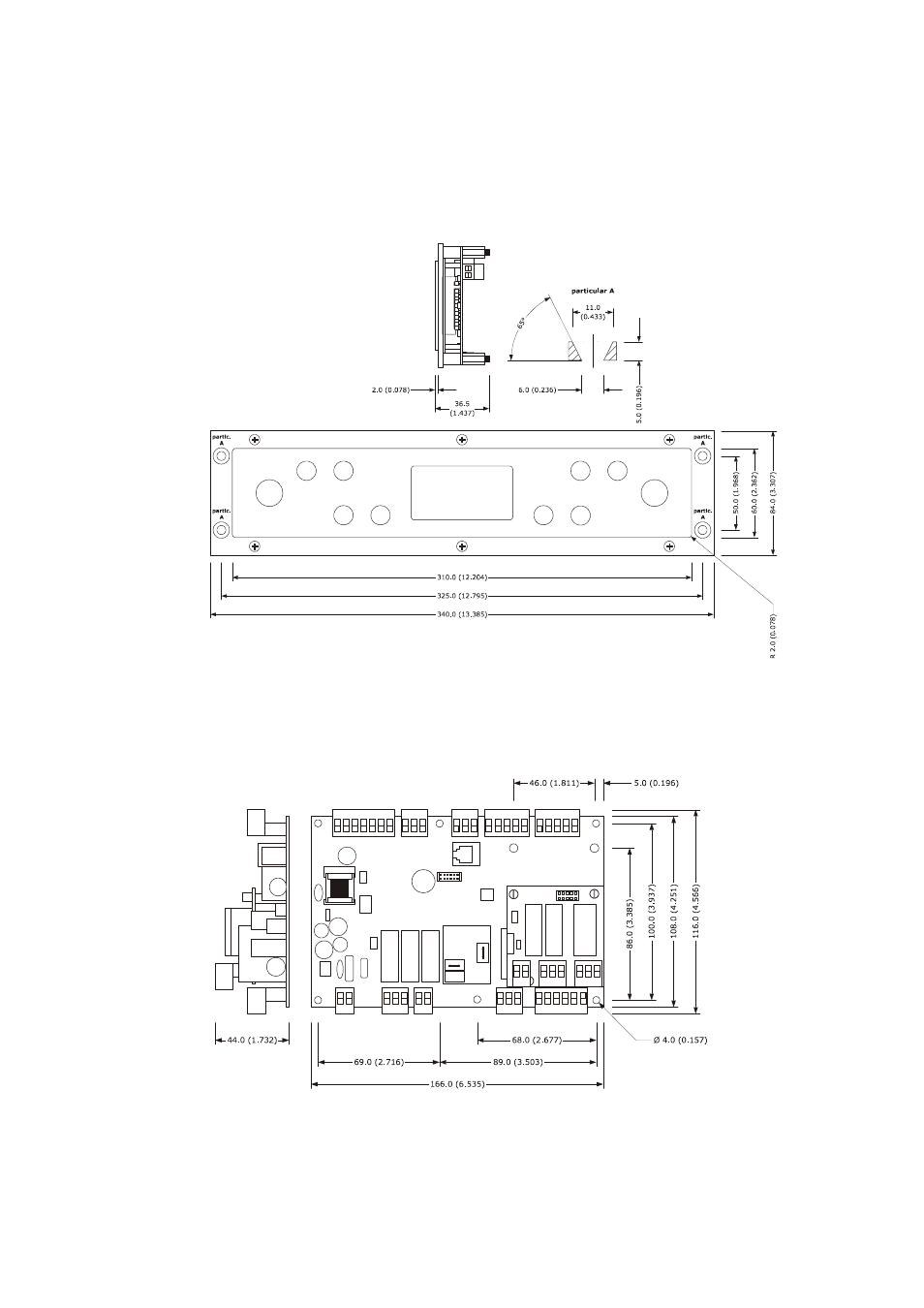

The following drawing illustrates the EVF818 user interface dimensions; these are expressed in mm (in).
3.2
Control module dimensions
The following drawing illustrates the EVF818 control module dimensions; these are expressed in mm (in).
