2 DESCRIPTION
2.1 Description

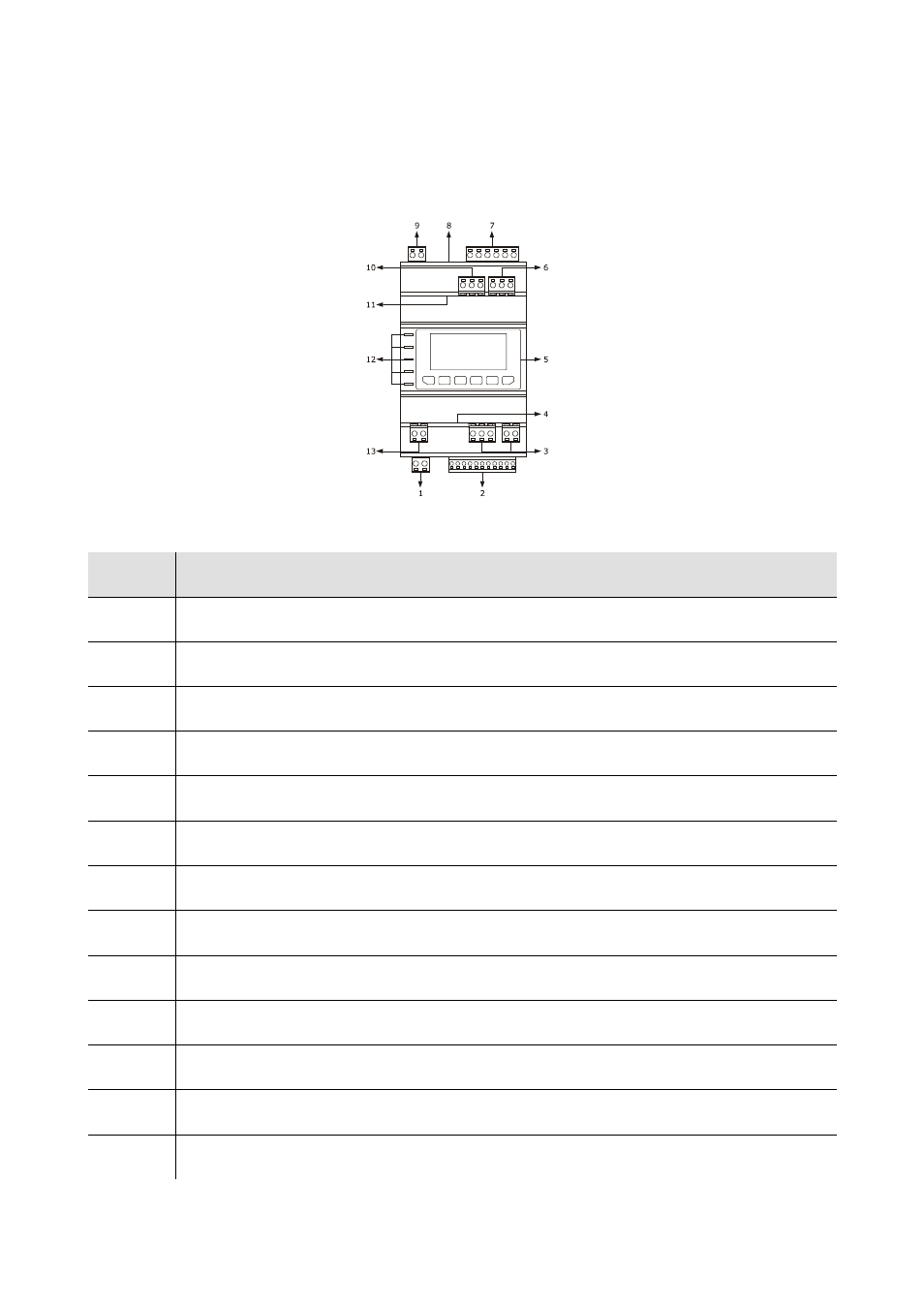

The following drawing shows the aspect of EVDRIVE03.
The following table shows the meaning of the parts of EVDRIVE03.
Part Meaning
1 digital output
2 analog inputs and free of voltage digital inputs
3 CAN port (not available in model EPD4BX3)
4 CAN port line termination (not available in model EPD4BX3)
5 display and keyboard (not available in models EPD4BX3, EPD4BC3 and EPD4BF3)
6 reserved
7 bipolar stepper motor output
8 programming port
9 power supply
10 RS-485 port (not available in models EPD4BX3 and EPD4BC3)
11 RS-485 port line termination (not available in models EPD4BX3 and EPD4BC3)
12 signalling LEDs
13 high voltage digital input (not available in model EPD4BX3)
For further information look at the following chapters.
