EVCO S.p.A.
EVDRIVE03 | User manual ver. 3.4 | Code 144EPDE344
page 15 of 70
4.2
Example of electrical connection

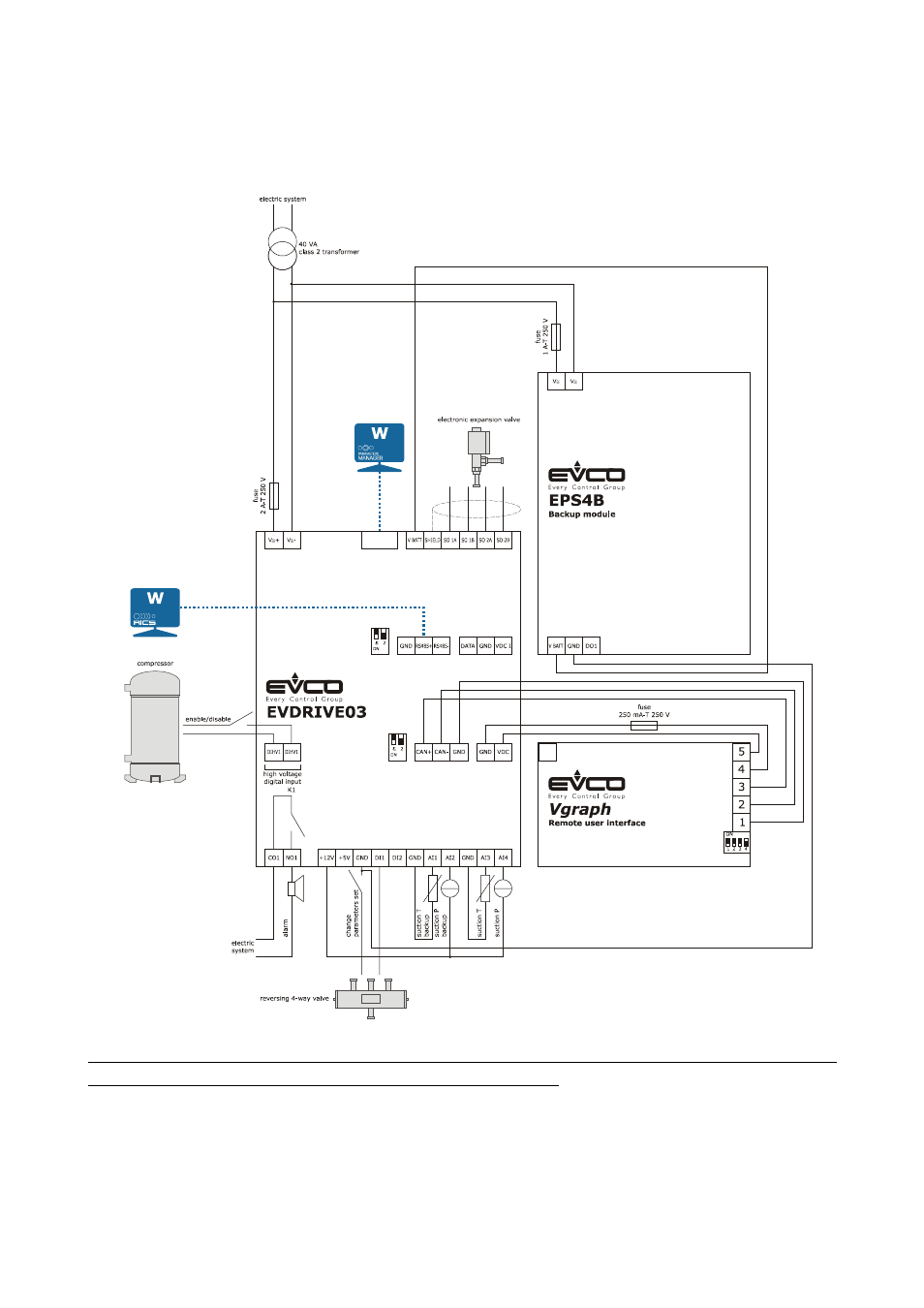

The following drawing shows an example of electrical connection of EVDRIVE03.
Please note the power supply of EVDRIVE03 and that of EPS4B are not isolated one another: it is
important to wire correctly the devices as indicated in the drawing.
