EVCO S.p.A. EVDRIVE03 | User manual ver. 3.4 | Code 144EPDE344
page 56 of 70
10.2 Programming kit EVIF20TUXI
10.2.1 Introduction
EVIF20TUXI is a programming kit.
Through the kit it is possible to connect the driver to the set-up software system Parameters Manager (using the
programming port).
The kit is made of:
-
TTL / USB non optoisolated serial interface
- USB cable (to connect the serial interface to the Personal Computer)
- TTL cable (to connect the serial interface to the driver).
10.2.2 Description

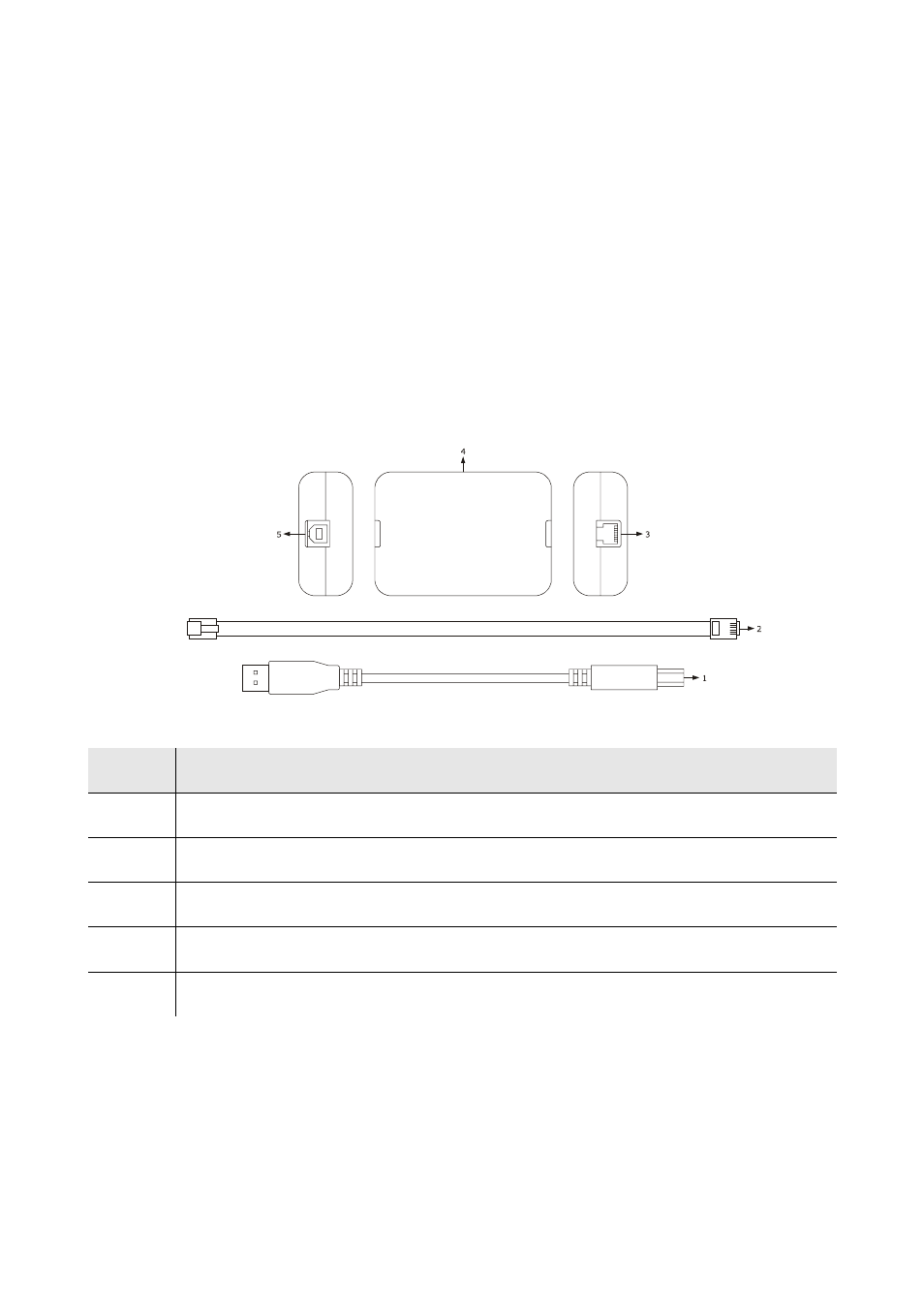

The following drawing shows the aspect of the programming kit EVIF20TUXI.
The following table shows the meaning of the parts of the kit.
Part Meaning
1 USB cable 2 m (6 ft) long
2 TTL cable 2.5 m (8 ft) long
3 TTL port
4 TTL / USB non optoisolated serial interface
5 USB port
