10.4.3 Size

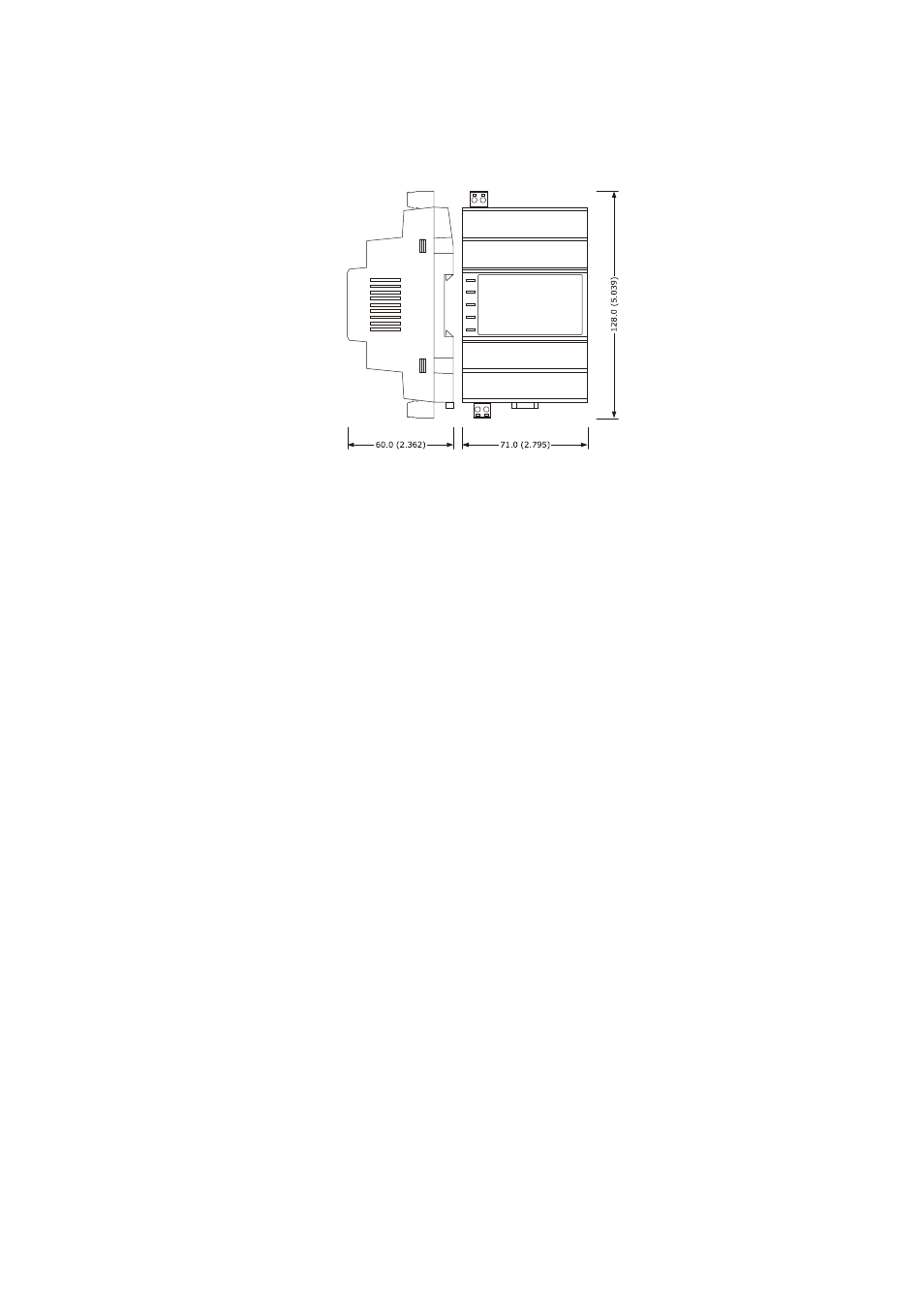

Size is in mm (in).
10.4.4 Connection to the device
Look at chapter 4 “ELECTRICAL CONNECTION”Operate as follows:
Please note the power supply of EVDRIVE03 and that of EPS4B are not isolated: it is important to wire correctly the
devices as indicated in chapter 4.
