These menus permit modification of most driver parameters.
In the “Main control parameters” the user can change the control type (analog positioner or SH algorithm), the
algorithm sample time, the algorithm parameters set to be used and the parameters for each set, valve
start-up position, valve position in case of probe or communication error, valve stand-by position, etc.
The “Alarm parameters” permit to enable or disable each alarm and settings the parameters.
To modify a parameter operate as follows:
16.
Press and release button UP or button DOWN to select possible submenus.
17. Press and release button ENTER.
18. Press and release button UP or button DOWN to select the parameter.
19. Press and release button ENTER.
20. Press and release button UP or button DOWN to modify the value.
21. Press and release button ENTER to confirm the value.
22. Press and release button ESC over and over again to go back to the previous pages.
To gain access to the manufacturer menu:
23.
With reference to step 15, from page 13 press button DOWN to select “Manufacturer menu”.
24. Press and release button ENTER.
25. Press and release button ENTER again to set the password value.
26. Press and release button UP or button DOWN over and over again to set level 2 password (according to the
factory settings “20”; to change this value look at paragraph 7.6 “Main menu”.
27. Press and release button ENTER again.

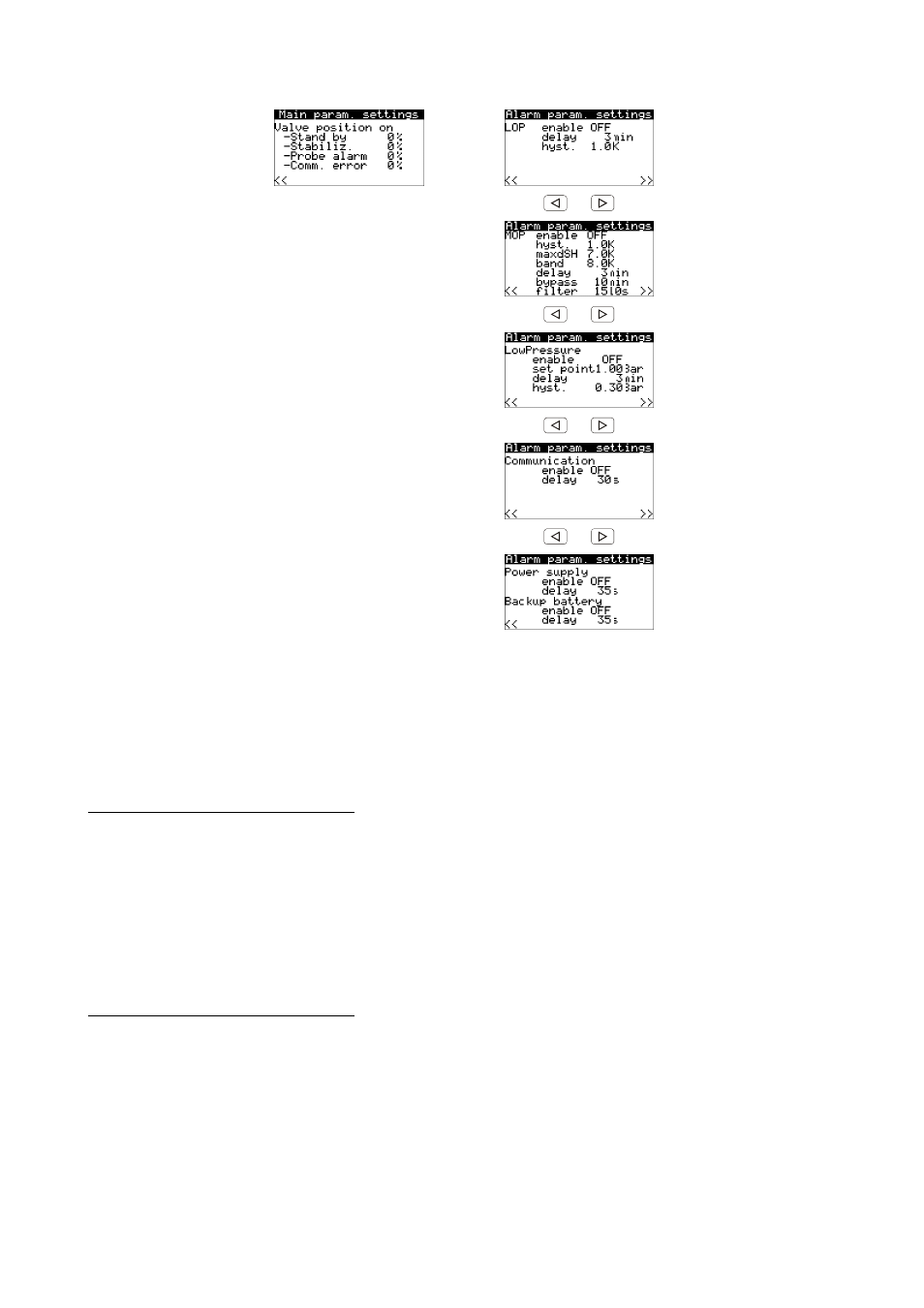

28. Move among the pages using the buttons as shown in the example here below:
