4-34
SETT
ING DEVICE OPER
A
T
IONS
4
4-6 CC-Link Controller (NX-50CL) Settings
CC-Link Setting

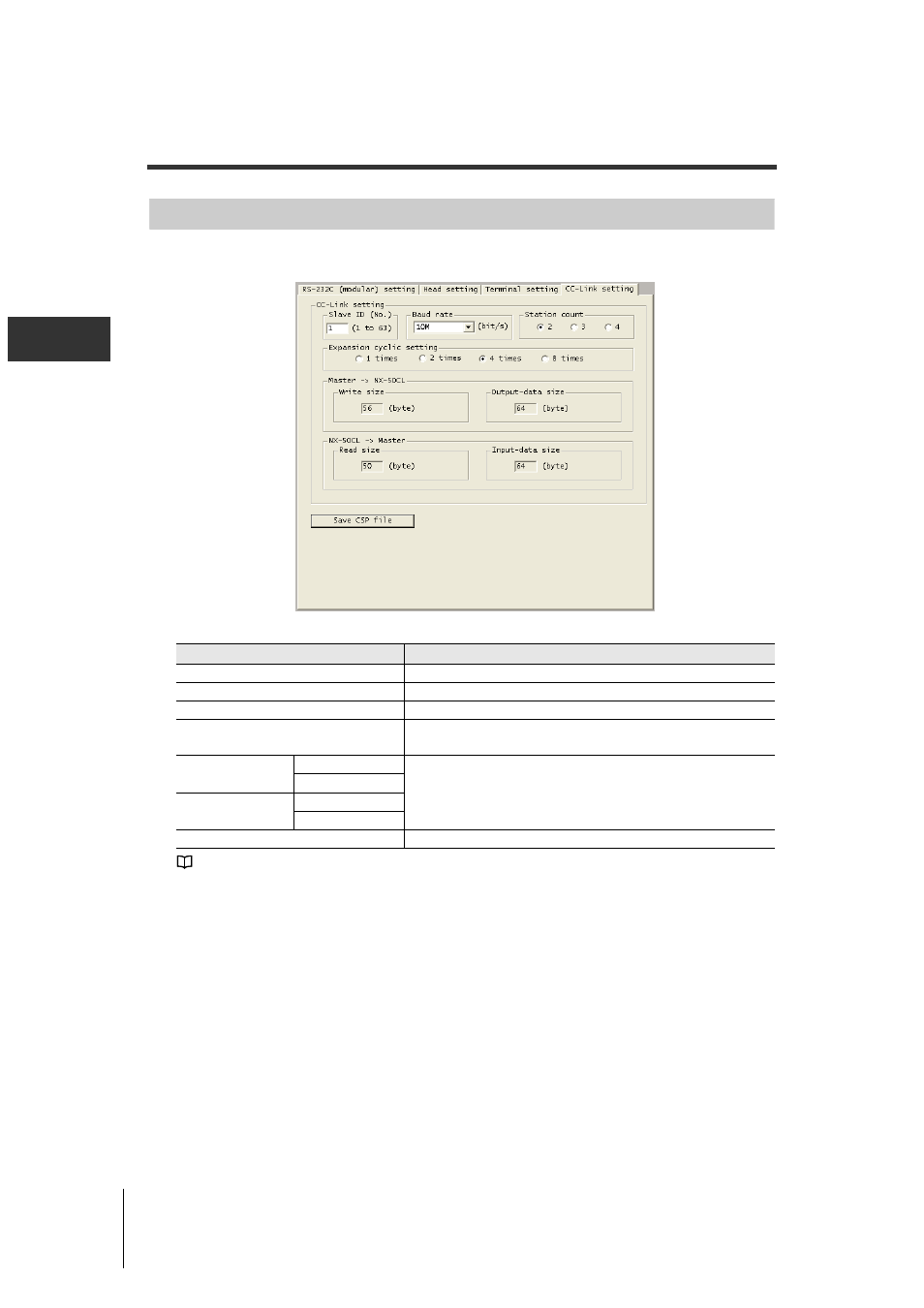

The following describes the settings of the [CC-Link setting] tab for the NX-50CL.
"NX-50 Series Operation Manual"
Item Description
Slave ID (No.) Select 1 to 63 as the slave ID of the NX-50CL.
Baud rate Select the baud rate (bit/s) from the pulldown menu.
Station count Select 2, 3 or 4 for Station count.
Expansion cycle setting
Select 1 times, 2 times, 4 times, or 8 times for Expansion cycle
setting.
Master → NX-50CL
Write size
The value calculated from the [Station count] and [Expansion cycle
setting] setting values is displayed. Output-data size
NX-50CL → Master
Read size
Input-data size
"Save CSP file" button Saves the settings as a CSP file.
