CC-Link Controller (NX-50CL) Settings

Parameters to be Set

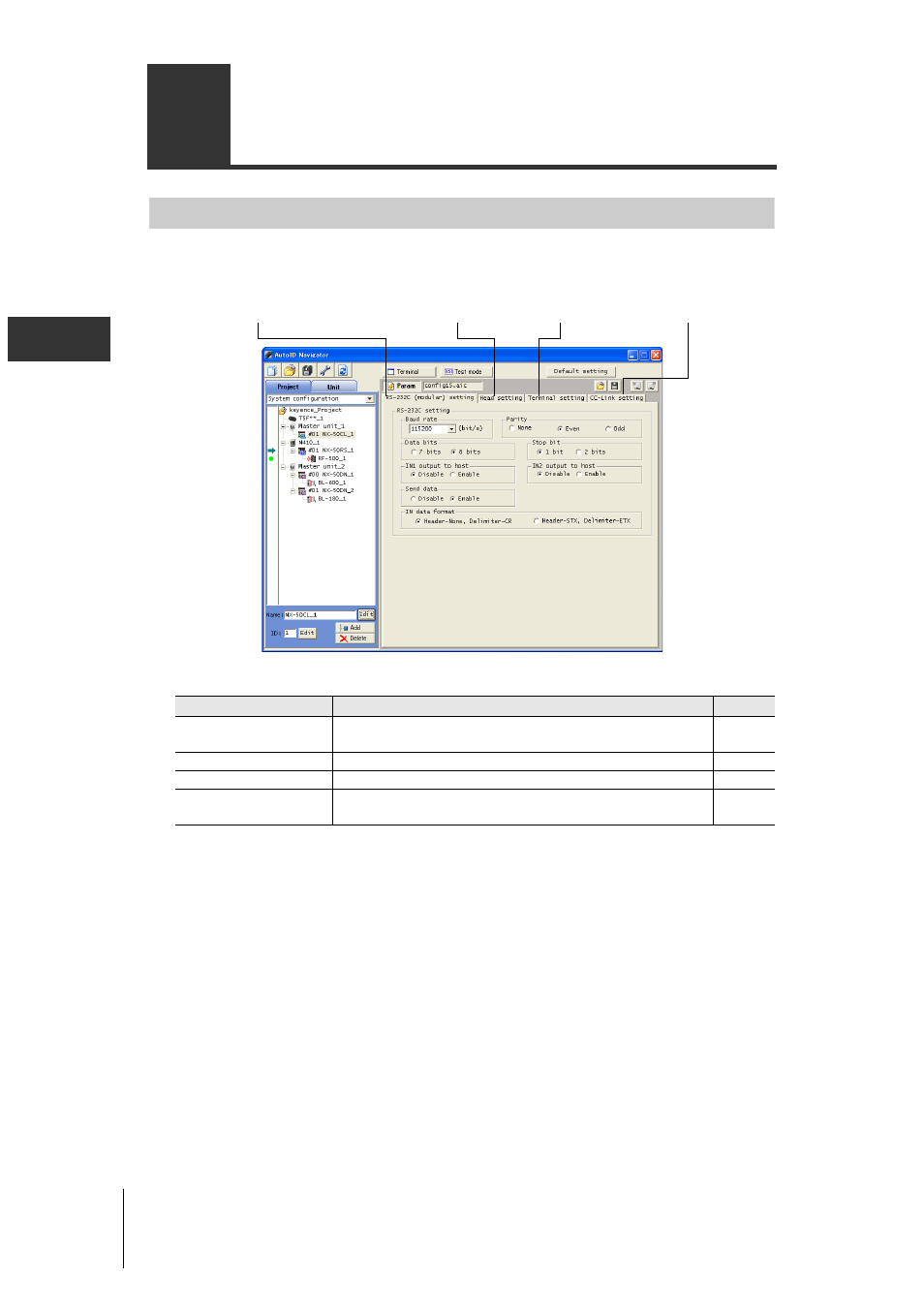

There are four parameter items to be set up for the CC-Link controller (NX-50CL). Switch to the
desired setting item by clicking the respective tab and set the parameters on that tab.

(1) RS-232C (modular) setting

(2) Head setting (3) Terminal setting (4) CC-Link setting

Setting Item

Description

See Page

(1) RS-232C (modular)

setting

This tab is for setting communication over an RS-232 connection.

4-31

(2) Head setting

This tab is for setting communication with the head.

4-32

(3) Terminal setting

This tab is for setting the I/O terminals.

4-33

(4) CC-Link setting

This tab is for setting communication over a CC-Link connection.
The slave ID (station No.) is set here.

4-34
