4-3 BL Series Settings
Barcode Setting

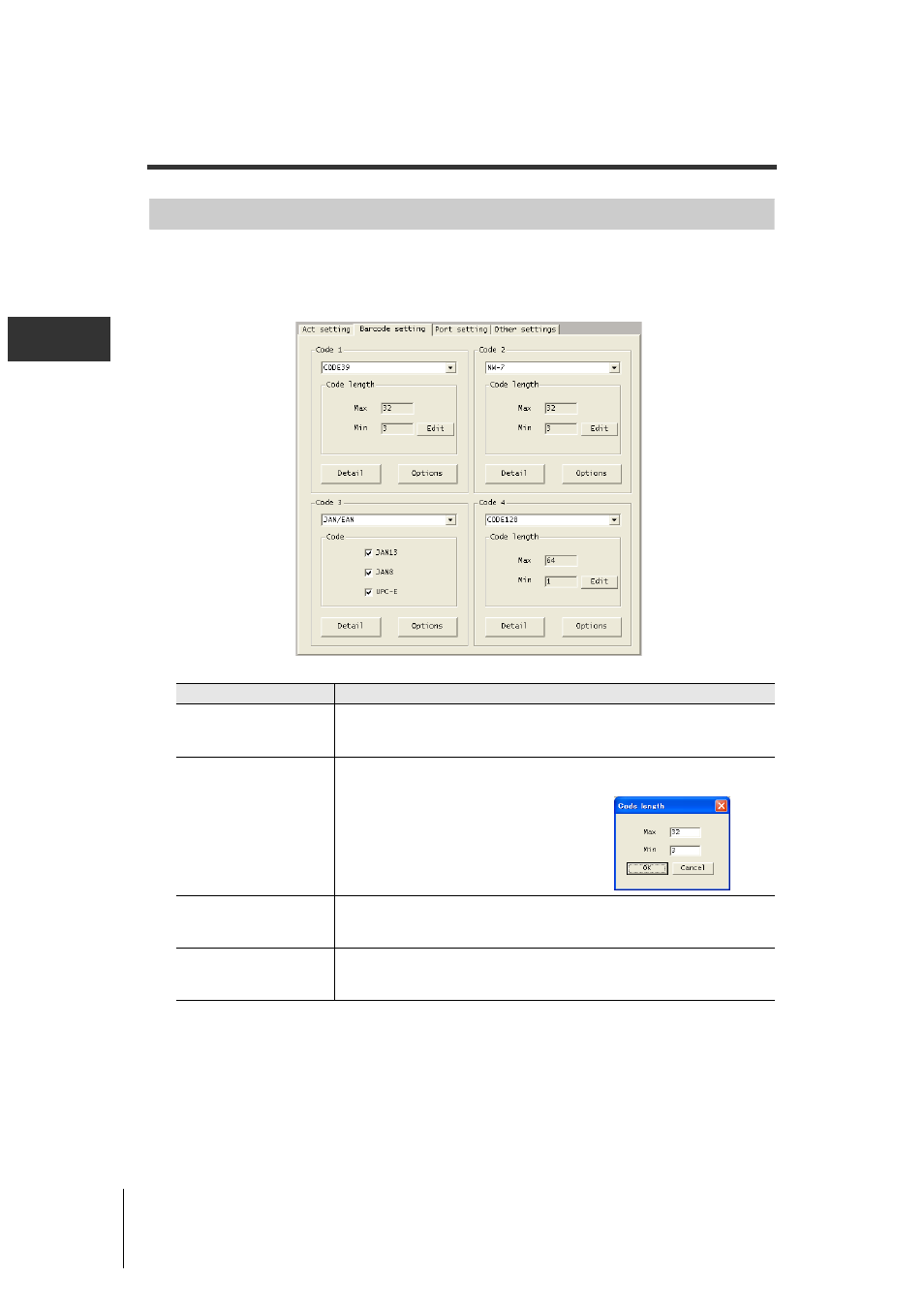

This section describes the [Barcode setting] tab for the barcode reader.
On this tab, set the barcode type, the minimum and maximum code lengths, and other barcode
settings.
Item Description
Code 1 to 4
Select the type of barcodes from the pulldown menus.
* When completely different barcodes are set to "Code 1" to "Code 4", four
types of barcodes can be read without changing the respective settings.
Code length
Set the maximum and minimum number of digits for each barcode type at "Max"
and "Min", respectively.
When the "Edit" button is clicked, the [Code
length] dialog box is displayed. Enter the
desired numerical values, and click the
"OK" button.
* The code length that can be set differs
according to the type of barcode.
"Detail" button
When the "Detail" button is clicked at "Code 1" to "Code 4", the [Barcode detail
setup] dialog box is displayed. Set each item in this dialog box.
* The details that can be set differ according to the type of barcode.
"Options" button
When the "Options" button is clicked at "Code 1" to "Code 4", the [Option setup]
dialog box is displayed. Set each item in this dialog box.
* The details that can be set differ according to the type of barcode.
