4-4 SR-500 Series Settings
SETT
ING DEVICE OPER
A
T
IONS
4

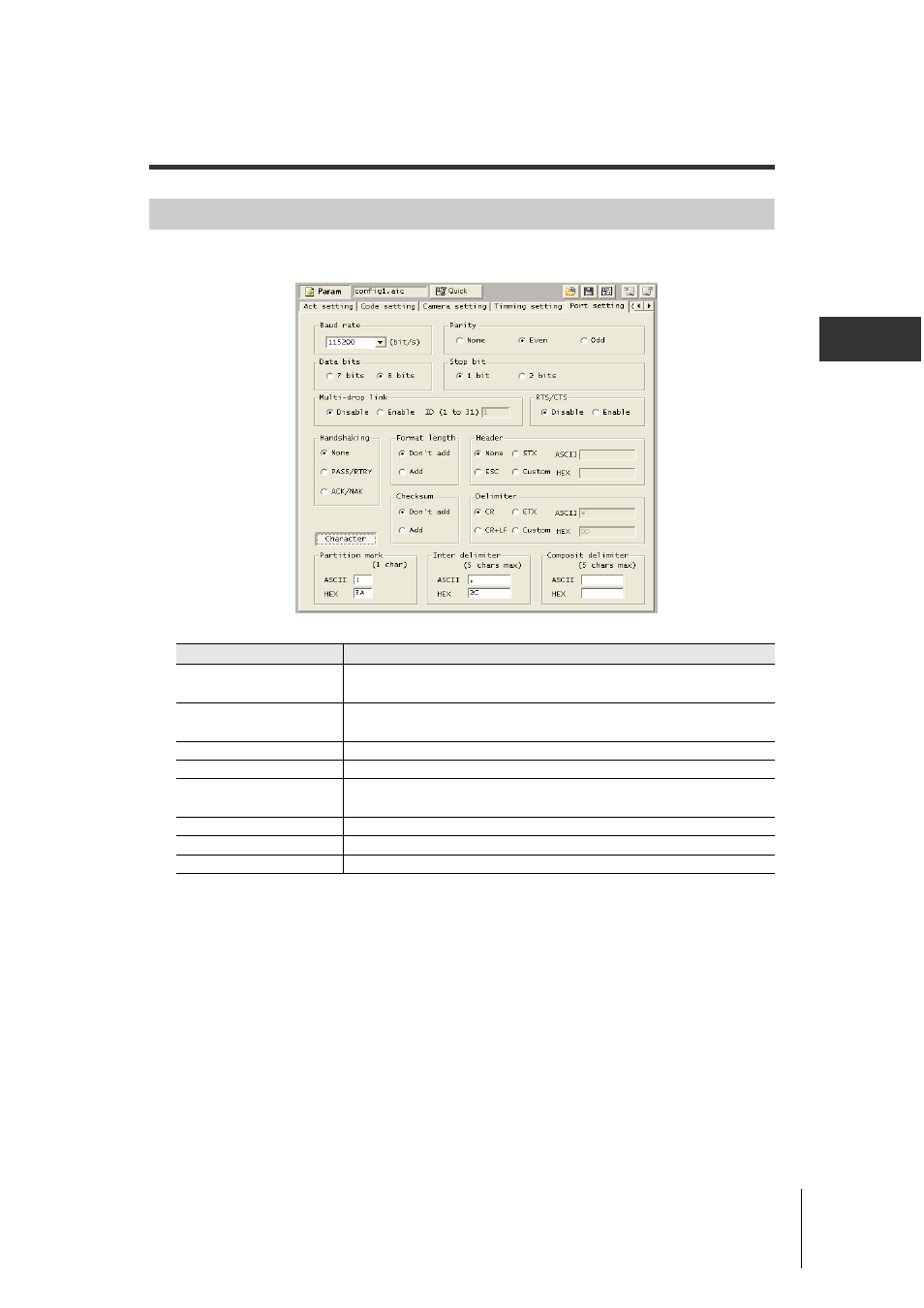

Port Setting
This section describes the settings for the RS-232C output of the SR-500.
Item Description
Baud rate, Data bits, Parity,
Stop bit
Set the same values as those of the connected external device.
Multi-drop link
When connecting the N-410, select Enable and enter ID. When connecting
the NX-50RS, no setting is needed.
RTS/ CTS Select Disable or Enable.
Protocol Select None, PASS/RTRY, or ACK/NAK.
Format length
Select Don’t add or Add. When Add is selected, the number of characters of
the sending data is read and added in front of the data.
Checksum Select Don’t add or Add.
Header/Delimiter Set the same item as the one set in the connected external device.
Character Set Partition mark, Inter delimiter, and Composite delimiter.
