Cub Cadet Commercial Z-Wing
75
30.6. To stop the engine without an occurrence of
after-fire, it is necessary to deprive the after-fire
solenoid of power from the charging circuit as
well as from the key switch.
30.7. This is done by grounding-out the charging cir-
cuit through the key switch connection to G ter-
minal.
30.8. Through the M terminal, the magneto finds
ground by its connection to the G terminal with
the key in the OFF position.
31. ELECTRICAL: ENGINE-STOPPING SAFETY
CIRCUITS
31.1. The object of the engine stopping safety circuits
is to prevent the mower from running if an inher-
ently unsafe condition exists.
31.2. Unsafe conditions that will cause engine shut-
down include:
• Engine running with the seat unoccupied and the
parking brake released.
• Engine running with the seat unoccupied and the
cutting deck engaged.
31.3. The seat safety switch is central to the system.
See Figure 31.3.
NOTE: Seat switch plug defaults to closed circuit
if disconnected.

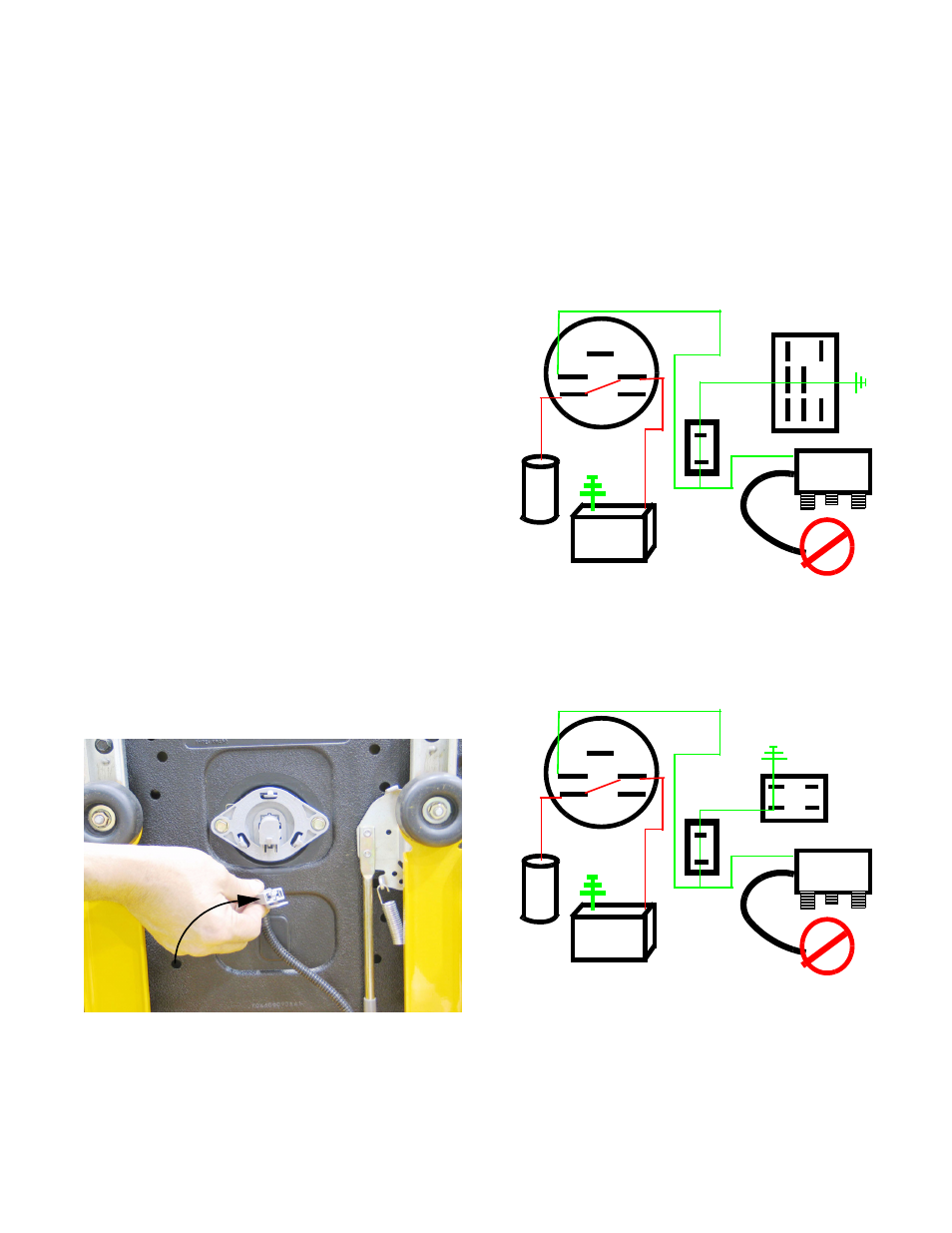

Figure 31.3
Seat safety switch:
normally closed
Plug defaults to closed
circuit if disconnected
31.4. The yellow wire that connects the M terminal on
the key switch to the ignition modules connects
to the seat switch. The paired yellow w/white
trace wires from the second terminal on the seat
switch extend to the Brake switch and the PTO
switch.
31.5. If the seat is empty (contacts closed) a ground
path may be completed through the PTO switch.
See Figure 31.5.
31.6. If the seat is empty (contacts closed) a ground
path may be completed through the brake
switch. See Figure 31.6.
Figure 31.5
S
M B
L G
Battery
A-F
Sol.
PTO Switch: ON
Key Switch:
RUN
Ignition
Module
Seat
Switch:
Empty
Figure 31.6
S
M B
L G
Battery
A-F
Sol.
Key Switch:
RUN
Ignition
Module
Seat
Switch:
Empty
Brake Switch: OFF
