Cub Cadet Commercial Z-Wing
33

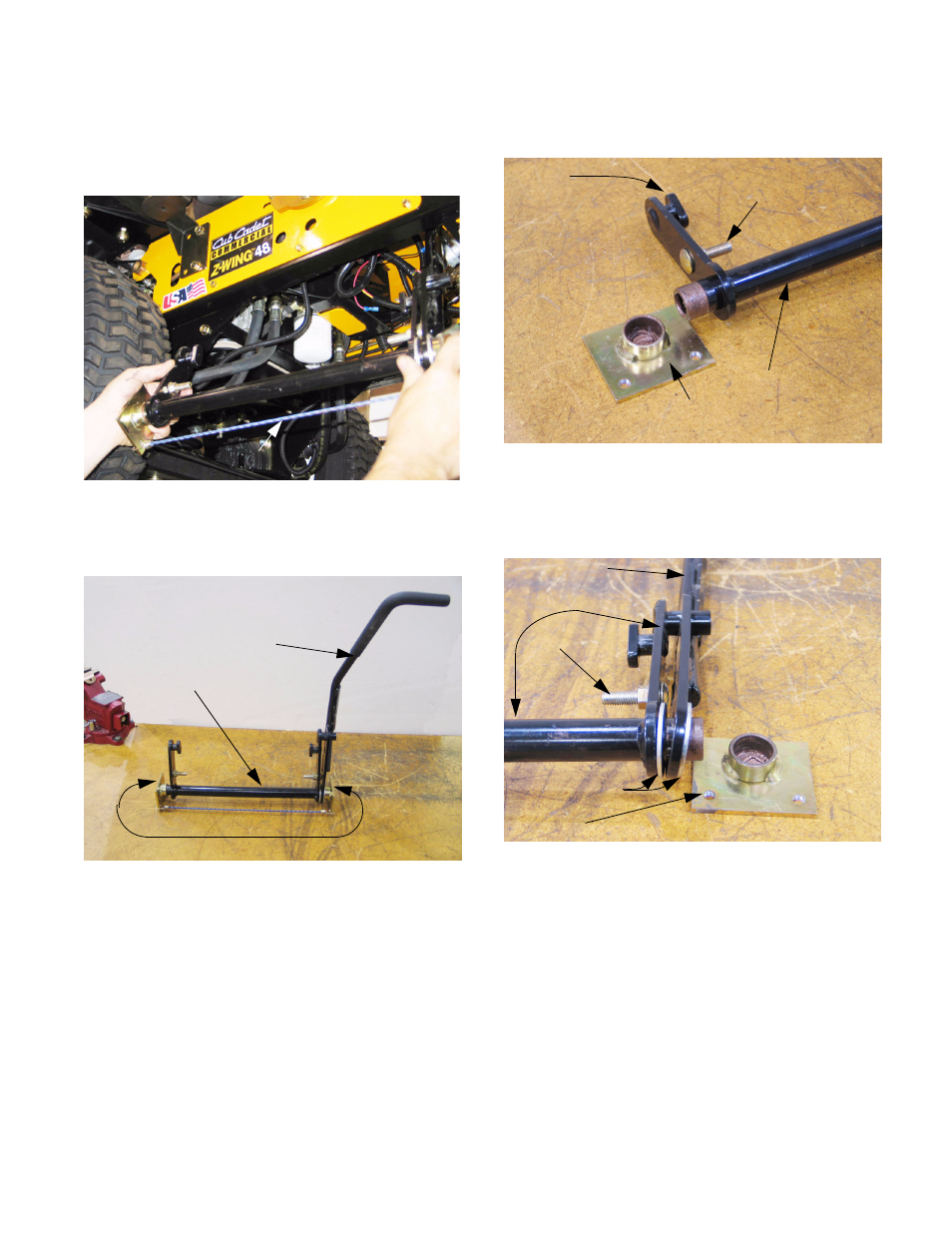

14.15.Rotate the left end of the lift shaft rearward to
free the deck height control handle from the
index assembly, and remove the assembly to a
workbench. See Figure 14.15.
14.16.Once on the bench, the bungee cord can be
removed. See Figure 14.16.
Figure 14.15
Bungee cord
Figure 14.16
Deck lift handle
Lift hubs
Lift shaft assembly
14.17.The left side hub will simply slip off of the shaft.
See Figure 14.17.
14.18.The right side hub will slip off of the shaft as well,
but it also retains the deck height control lever.
See Figure 14.18.
Figure 14.17
Left lift hub
Carriage bolt
Lift shaft assembly
T-head
for lift link
Figure 14.18
Flat washers
Lift hub
Lift handle
Lift shaft assembly
Carriage bolt
