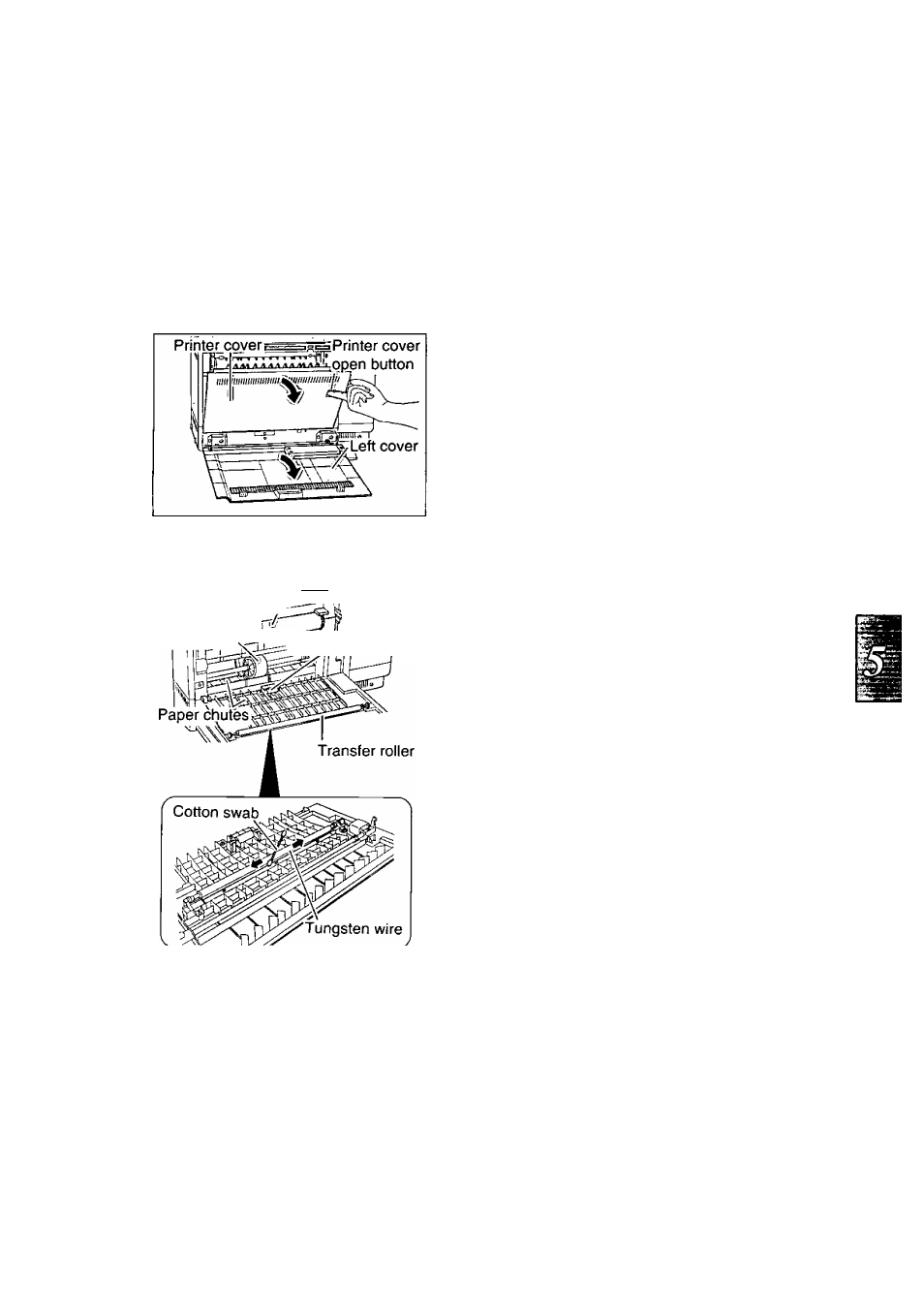

Cleaning the printer

If dark stripes or toner stains appear on printed pages, clean the inside of the printer by

proceeding as follows:

Open the left cover, and open the printer cover by
pulling the printer cover open button.

Greep.drum^\^^^^^^^' I , Fuser

surface'*" "

I ip

Feed roller

Pinch roller

Clean the following areas with a dry soft cloth:

• Pinch roller
• Feed roller
• Transfer roller
• Paper chutes (paper dust)

Then, carefully wipe the tungsten wire by sliding a
cotton swab from end to end 4 to 5 times.

CAUTIONS:

- The unit must be turned off prior to cleaning.
- Do not clean the fuser with a stiff material. It may

damage the fuser roller.

- Do not expose the drum unit to light for more than

5 minutes.

- Do not touch the green drum surface.

(continued)
