9.7 Updating CW-90/90X Firmware
To update firmware of the CW-90/CW-90X, you must have Revolution installed and a .hex file on your computer.
Visit
www.ricelake.com/manuals to download this free configuration software and the latest .hex file.
JP3 And JP4 Location
Note
If the .hex file is the same version as is currently in the indicator, the firmware update will not reset the
configuration. This is helpful if the firmware becomes corrupt and you want to reload the same firmware.
However, it is always recommended that configuration be backed up in Revolution to avoid any data loss.
1. Unplug power to the CW-90/CW-90X and remove the back plate.
2. Wire the serial cable to the CW-90/CW-90X’s Port 1. Refer to Table 9-6 for cable connection settings.
Table 9-6. Cable Connection Settings
DB9 Cable CW-90/90X Connector (J2)
Pin/Color Signal In/Out Description Pin Description In/Out
1/Brown DCD In Data Carrier Detect NC NA NA
2/Red RxD In Receive Data 3 Tx Out
3/Orange TxD Out Transmit Data 4 Rx In
4/Yellow DTR Out Data Terminal Ready 5 DTR In
5/Green GND -------- Ground 1 or 2 Gnd --------
6/Blue DSR In Data Set Ready NC NA NA
7/Purple RTS Out Request to Send 6 RTS In
8/Gray CTS In Clear to Send NC NA NA
9/Black RI In Ring Indicator NC NA NA
3. Install jumpers on JP3 and JP4 as shown in Figure 9-4.

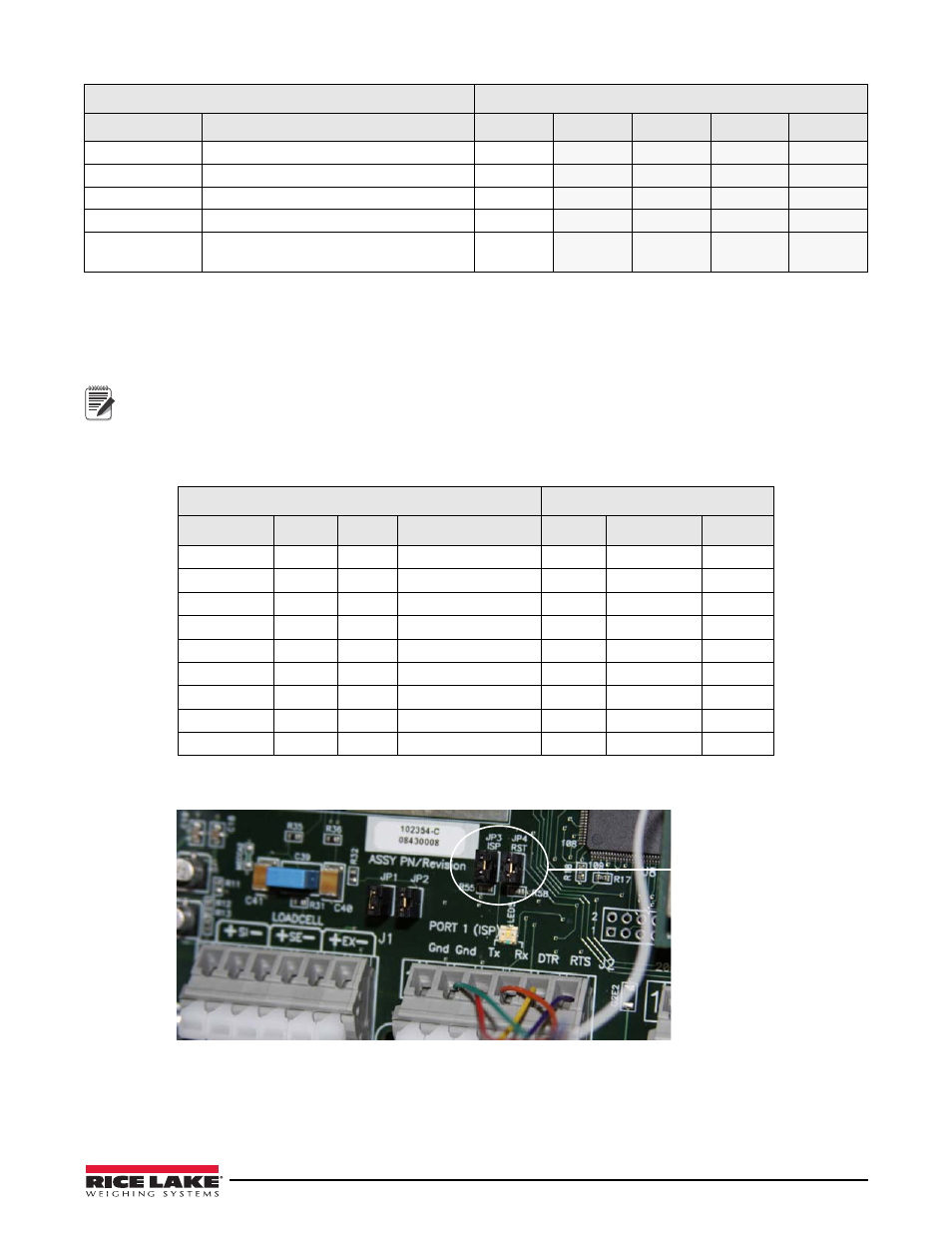

Figure 9-4. Jumpers Installed on JP3 and JP4
4. Plug in power to the CW-90/CW-90X and press the indicator’s Power button.
5. With Revolution open, begin a new configuration file for the CW-90/CW-90X.
6. Click Update CW90 Firmware .
