34 CW-90/90X Checkweigher
3.6 Time and Date Menu
TIME DATE
SET SET
EXIT T&D TEST SETUP AUDIT XXXXXXX CALIBR BRIGHT ACCUM
Only displayed if
turned on
from Setup menu
ID
Only displayed if
turned on
from Setup menu

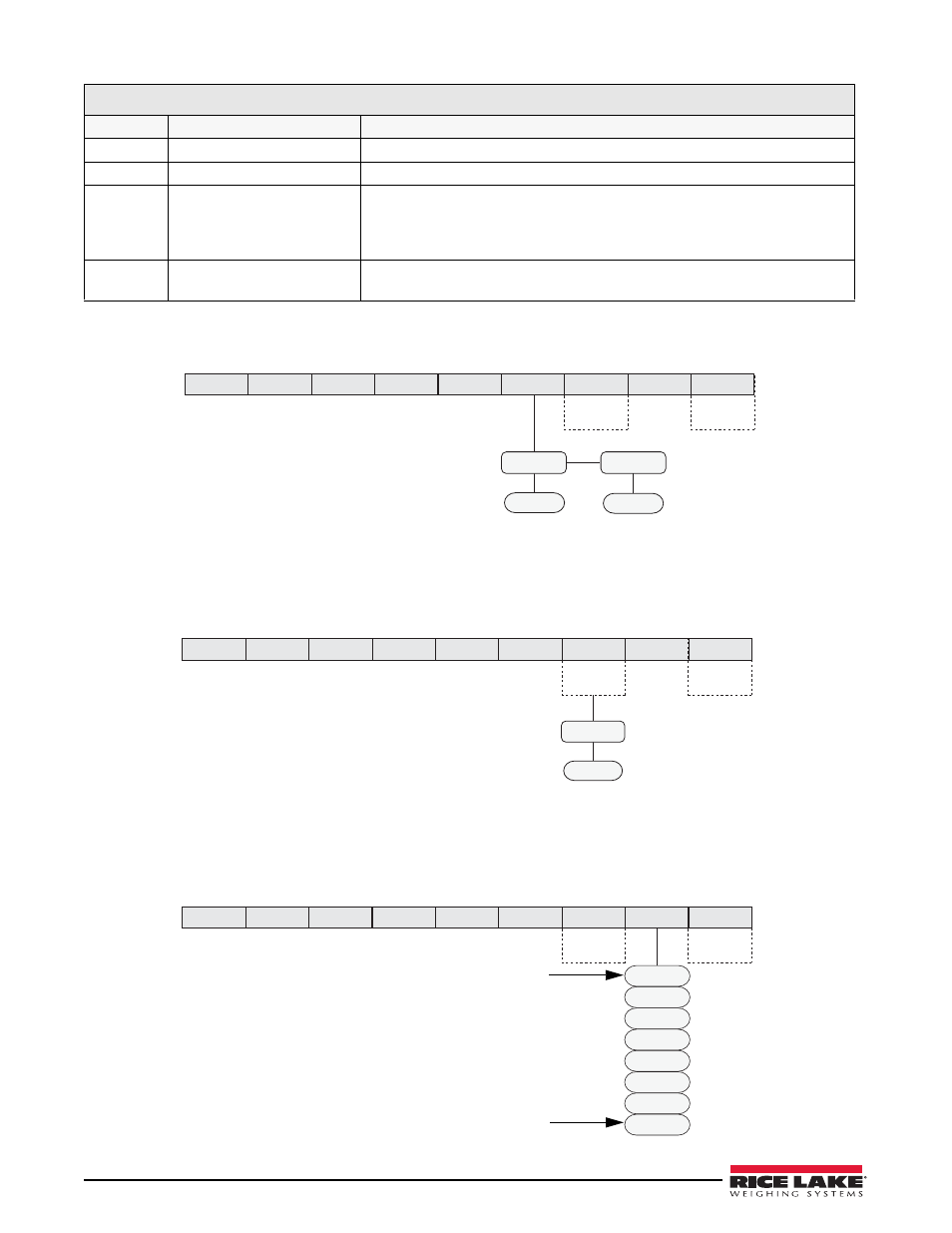

Figure 3-12. Time and Date Menu
3.7 ACCUM Menu
In order for the ACCUM menu to appear, ON must be selected from the SETUP » CONFIG » SCALE » ACCUM
parameter (see Figure 3-5 on page 18).
000000
CLEAR
EXIT T&D TEST SETUP AUDIT XXXXXXX CALIBR BRIGHT ACCUM
Only displayed if
turned on
from Setup menu
ID
Only displayed if
turned on
from Setup menu
Figure 3-13. ACCUM Menu
3.8 BRIGHT Menu
There are eight brightness settings on the CW-90/CW-90X (0-7). If a number greater than 7 is selected, “RANGE”
will be displayed because the number is out of range.
1
2
3
4
5
6
7
0
EXIT T&D TEST SETUP AUDIT XXXXXXX CALIBR BRIGHT ACCUM
Only displayed if
turned on
from Setup menu
ID
Only displayed if
turned on
from Setup menu
Dimmest
Brightest
Figure 3-14. BRIGHT Menu
EXCVDC VAL Displays the current excitation voltage.
LOOP TEST Perorms a loop test on dig I/O cards.
DIO 1
DIO 2
DIO 3
DIO 4 STATUS Displays the status of each individual digital I/O port. If set as input, the display
shows input stats IN HI or IN LO. If set as output, pressing Enter toggles the
output beween HI and LO. OUT HI or OUT LO.

OUT LO is active.
PORT1
PORT2 TEST Performs a loopback test on serial port 1 or 2. Connect jumper TX and RX
together on port 1 or port 2 before testing.
TEST Menu
Parameter Choices Description
Table 3-8. TEST Menu Parameters
