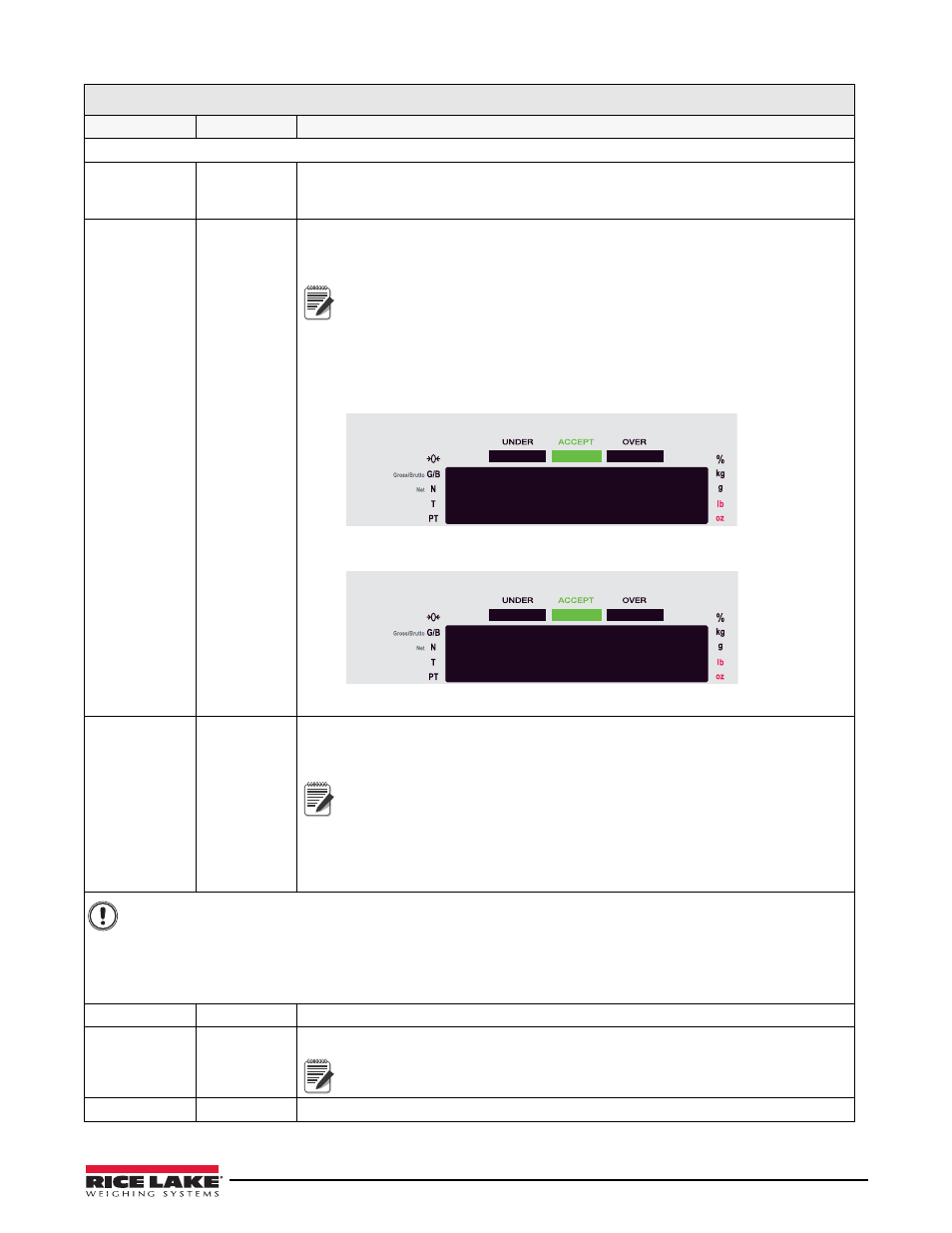

Rice Lake Static Weighing - Manual (Page 25)

Configuration 21
Level 4 submenus
PRIMRY UNITS
DECPNT
DSPDIV Allows you to set the primary units, decimal point format, and display divisions.
SEC KG
G
LB
OZ
LB/OZ*
OFF Allows you to set the secondary units.

Decimal point format and display divisions are selected automatically. Values are
kg=kilogram (default); g=gram; lb=pound; oz=ounce; lb/oz=pound/ounce; and off.
Note
If using the token and secondary or tertiary values are changed, the
stream tokens must be changed to match in order to stream secondary
or tertiary.
*LB/OZ is not legal for trade. When in LB/OZ mode, the display shows a decimal
place for ounces through 99 pounds. If the pounds reach three digits (100 and
above), the ounces’ decimal place is dropped to accommodate the extra pounds’
digit.
99 15.9
Figure 3-6. LB/OZ mode display through 99 pounds
100 13
Figure 3-7. LB/OZ mode display for 100 pounds and above
TER OFF
KG
G
LB
OZ
LB/OZ* Allows you to set the tertiary units.

Decimal point format and display divisions are selected automatically. Values are off
(default); kg=kilogram; g=gram; lb=pound; oz=ounce; lb/oz=pound/ounce.
Important
Note
If using the token and secondary or tertiary values are changed, the
stream tokens must be changed to match in order to stream secondary
or tertiary.

*LB/OZ is not legal for trade. When in LB/OZ mode, the display shows a decimal
place for ounces through 99 pounds. If the pounds reach three digits (100 and
above), the ounces’ decimal place is dropped to accommodate the extra pounds’
digit (see Figure 3-6 and Figure 3-7).
If using a regulatory mode (see Section 9.6 on page 64), it is the installers responsibility to make sure
that the maximum allowable number of divisions is not exceeded by primary, secondary or tertiary
units of measure.
In this situation, the installer must reduce the number of divisions (also reducing the maximum
displayed capacity of the indicator) of the broader unit of measure to make sure that both units are
less than the allowed maximum per regulatory accreditation.
WZERO Allows you to view or change the zero calibration a/d count value.
WVAL Allows you to view and edit the test weight value.
Note
If RANGE is displayed after the value is entered, the value is too large or
small for the given parameter.
WSPAN Allows you to view or change the span calibration a/d count value.
SCALE Menu
Parameter Choices Description
Table 3-4. Scale Menu Parameters (Continued)
