Elecraft KPA100 Manual User Manual
Page 7
7

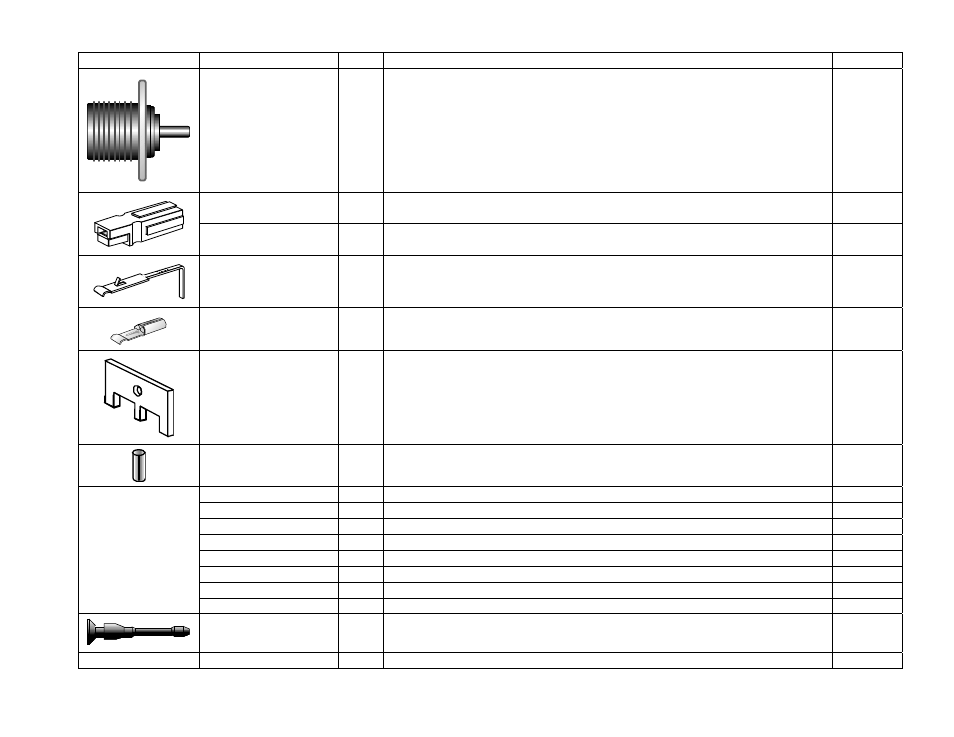

Ref. Designator(s)
QTY
Description
Part #
J2
1
Connector, SO239 (Antenna)
E620064
J3, P3
2
Connector, DC power, red housing (13.8 VDC input and mating conn., +)
E620059
J3, P3
2
Connector, DC power, black housing (13.8 VDC input and mating conn., -)
E620060
MISC
2
PCB pin for J3, 25 amp right angle
E620061
MISC
2
Crimp/solder terminal for P3, 30 amps
E620062
HDWR
2
Mounting plate for J3
E620063
MISC
1
Spring pin, 3/32" x 1/4" (2.4 x 6.4 mm); stabilizing pin for P3
E700071
J1,J4
2
Connector, 2p female housing, 0.156" spacing (12V and RF connectors)
E620013
RF-P3, RF-P6
2
Mating connectors for J1 and J4, 2p male, 0.156" spacing (K2 RF board)
E620012
HDWR
5
Crimp/solder terminal for J1 and J4, gold color (1 spare)
E620014
J5
1
Connector, 2p female housing, 0.1" spacing (AF In)
E620021
HDWR
3
Crimp/solder terminal for J5 (1 spare)
E620022
J6
1
Connector, 1/8" mono jack w/switch, PCB mount (ext. speaker)
E620056
J7
1
Connector, RCA jack, PCB mount (ext. PA key)
E620057
J8
1
Connector, DB9F, PCB mount (RS-232 interface)
E620058
MISC
2
Keying insert for ribbon cable connector
(Shown approx. 4x actual size; may include large break-away tab)
E700065
MISC
1
Connector, DB9M (serial I/O cable, K2 end)
E620049
