8x8 DigitalMedia™ Switcher

Crestron DM-MD8X8

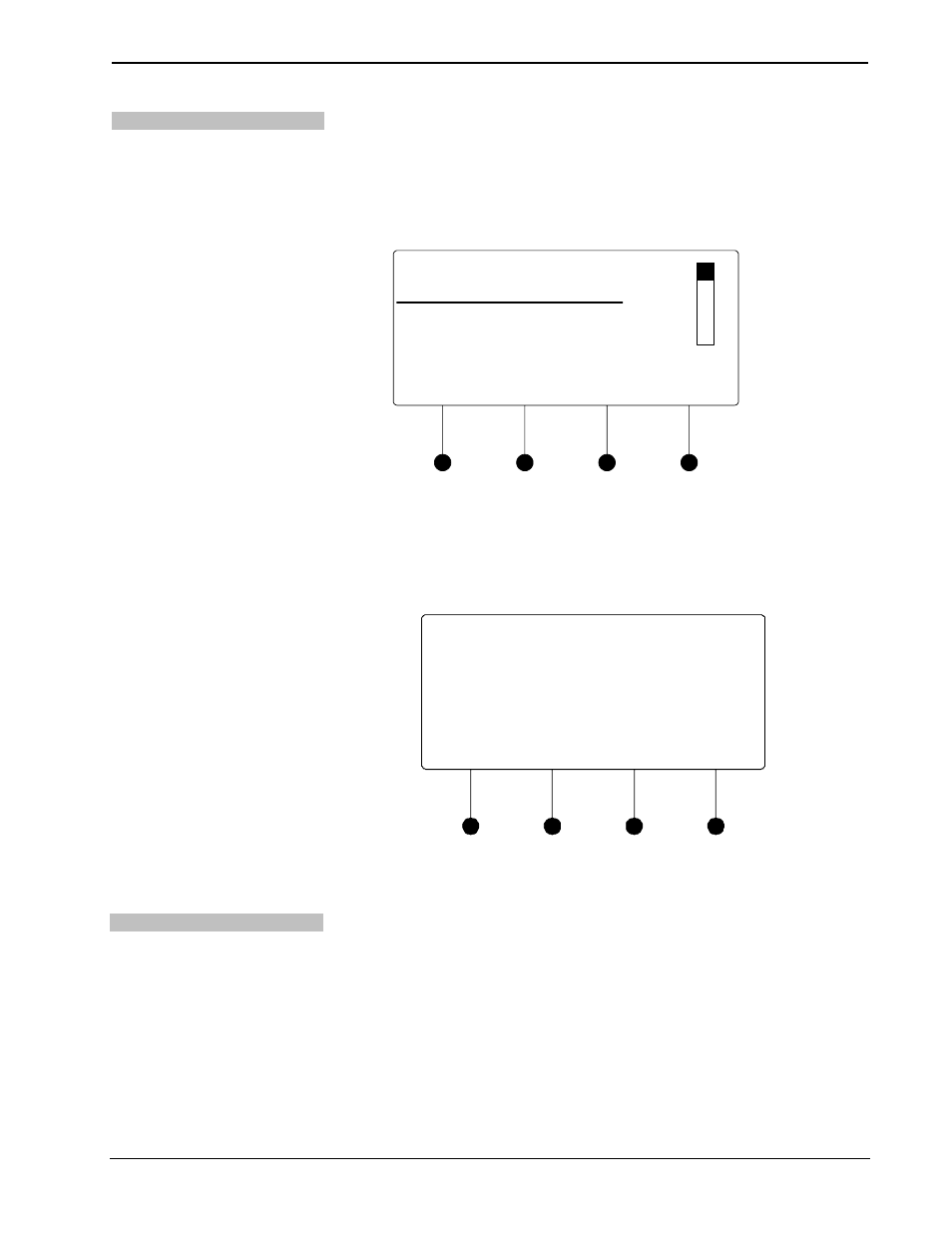

• Turn the selection knob to highlight Loopback Settings and press the

ENTER button.

Loopback Settings

Loopback Settings
Deep Color Mode: 8 bit
EDID Information

• Turn the selection knob to view the available information.

¾ To view EDID information about the display device connected to the

HDMI OUT port, turn the selection knob to highlight EDID
Information
and press the ENTER button.

EDID Information

EDID Information
Manufacturer: SHP
Name: SHARP HDMI
Timing: 1920x1080 @ 60Hz

¾ Press the MENU button to return to the Loopback Settings.

• Press the MENU button to return to the list of options for the input card.

Restore Defaults

Use the Restore Defaults function to reset the card to its factory settings. The cards
factory settings are:

• Input Select: Input 1
• Rotate Rate: 3 seconds
• Image Display (Full or Quad): Full
• Image Format: NTSC
• Image Cycle (Enable/Disable): Disabled
• Text Overscan: 5

82

8x8 DigitalMedia™ Switcher: DM-MD8X8

Operations Guide – DOC. 6755A

Loopback Settings

The DMC-VID4 can display information about the device connected to the HDMI
OUT
port as well as information on the Deep Color setting of the signal passed to
the HDMI OUT port on the DMC-VID4. To view the loopback settings:
