8x8 DigitalMedia™ Switcher

Crestron DM-MD8X8

Output Cards

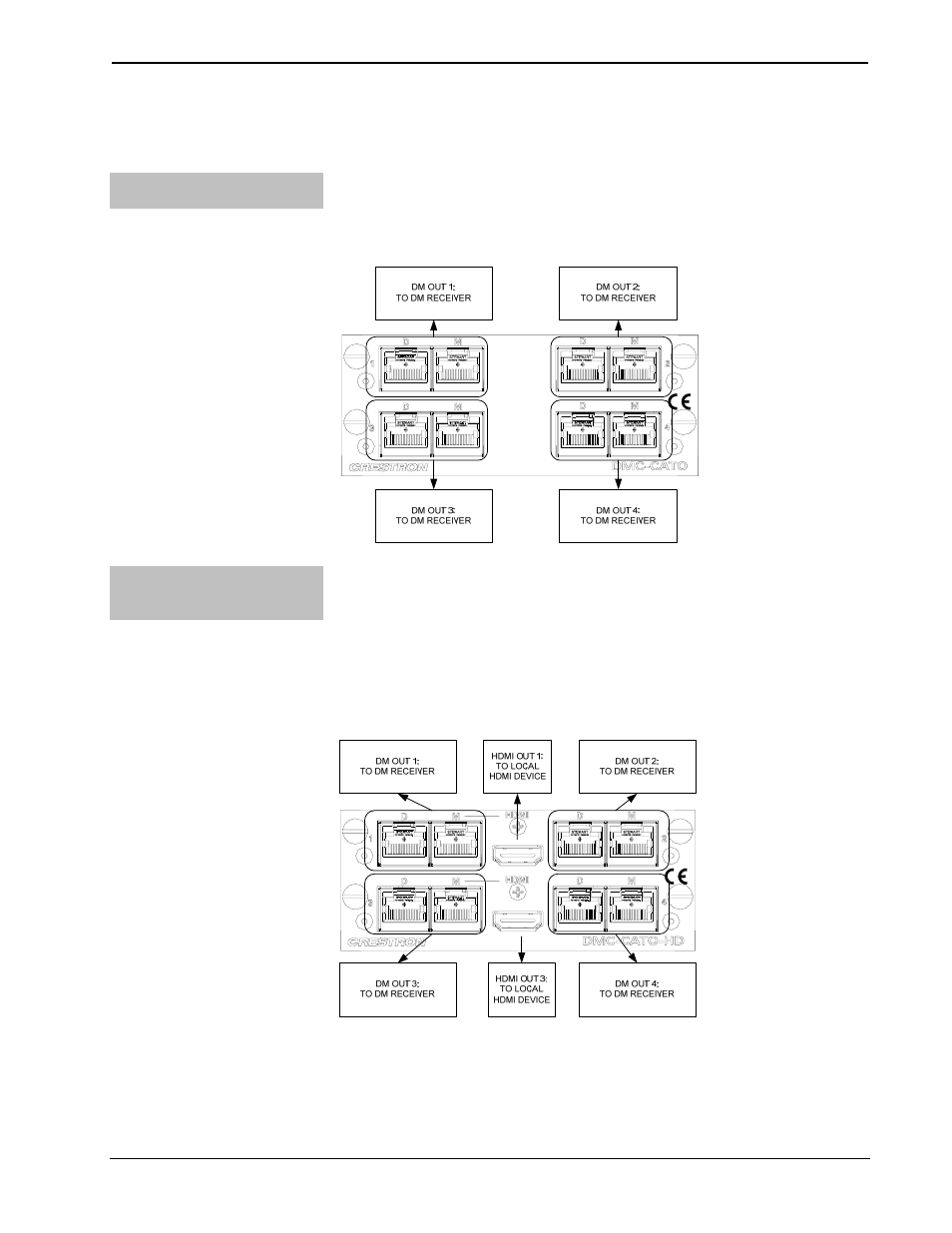

Refer to the following diagrams when connecting to DM Output Cards.

DMC-CATO Quad DM Output
Card for DM Switchers

The DMC-CATO is an output card for a DigitalMedia Switcher, providing four
DigitalMedia (DM) outputs to feed up to four individual DM receivers via
CAT5e/STP or DigitalMedia cable.

Hardware Hookup for DMC- CATO Output Card for DM Switchers

DMC-CATO-HD Quad DM
Output Card w/HDMI for DM
Switchers

The DMC-CATO-HD is an output card for a DigitalMedia Switcher, providing four
DigitalMedia (DM) outputs to feed up to four individual DM receivers via
CAT5e/STP or DigitalMedia cable.

The DMC-CATO-HD also provides two local HDMI outputs, configured in parallel
with DM Outputs #1 and #3. Each HDMI output carries the same audio and video
signals as its companion DM output that can be used for feeding a centralized audio
processor and a remote display device simultaneously.

Hardware Hookup for DMC- CATO-HD Output Card for DM Switchers
