8x8 DigitalMedia™ Switcher

Crestron DM-MD8X8

Maximum Resolution and Cable Length

CAT5E/STP

DigitalMedia

Cable

RESOLUTION DISTANCE

BETWEEN

REPEATERS

(H)

TOTAL DISTANCE

USING UP TO

THREE

REPEATERS

(T)

DISTANCE

BETWEEN

REPEATERS

(H)

TOTAL DISTANCE

USING UP TO

THREE

REPEATERS

(T)

1080i / 720p / 1080p
@24 Hz

150’

(45.7 meters)

200’

(60.9 meters)

1024 x 768 @ 75 Hz

150’

(45.7 meters)

200’

(60.9 meters)

1280 x 1024 @ 75 Hz

100’

(30.4 meters)

150’

(45.7 meters)

1600 x 1200 @ 60 Hz

75’

(22.8 meters)

125’

(38.1 meters)

1920 x 1200 @ 60 Hz

100’

(30.4 meters)

150’

(45.7 meters)

1080p @ 60 Hz

100’

(30.4 meters)

400’

121.9 (meters)

150’

(45.7 meters)

450’

(137.1 meters)

1080p @ 60 Hz, Deep
Color

Not Supported

100’

(30.4 meters)

400’

121.9 (meters)

NOTE: 1080p @ 60 Hz is the most common resolution used in residential
installations.

NOTE: Deep Color is part of the HDMI 1.3a specification. It allows devices to
transmit video using 36 bits per pixel instead of 24 bits per pixel. The color depth
allows for 4096 shades each of red, green, and blue (instead of 256). Due to
bandwidth requirements and limited support, Deep Color is not often used.

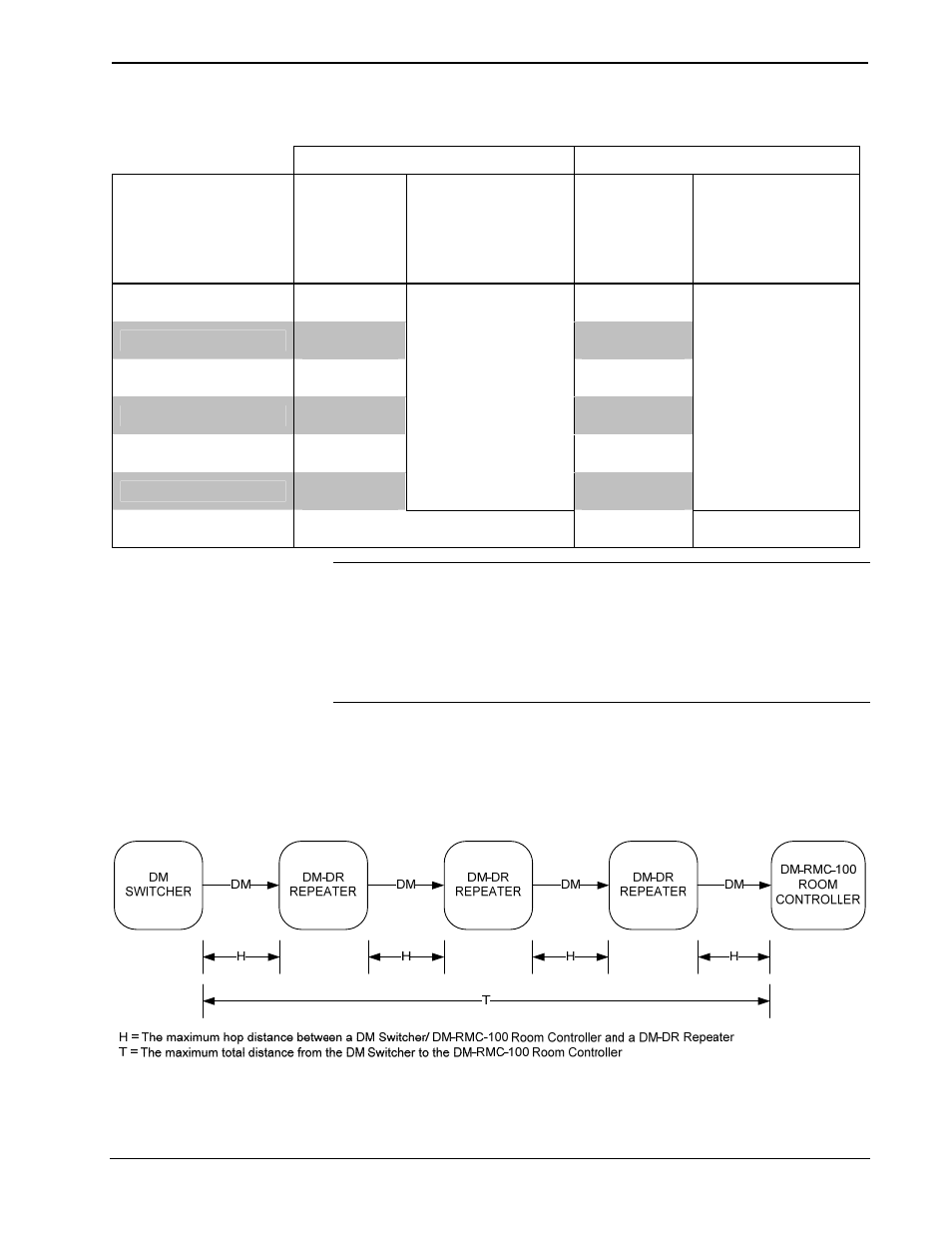

Up to three repeaters can be used to extend the transmission distance between the
DM-MD8X8 and the Room Controller. The following diagram illustrates the
maximum hop length between switcher/room controller and repeaters and maximum
aggregate cable length.

Maximum Cable Lengths

For more information on DigitalMedia and other cable products, visit the Crestron
website (http://www.crestron.com/wireoverview).

18

8x8 DigitalMedia™ Switcher: DM-MD8X8

Operations Guide – DOC. 6755A
