Providing DMNet Power Internally

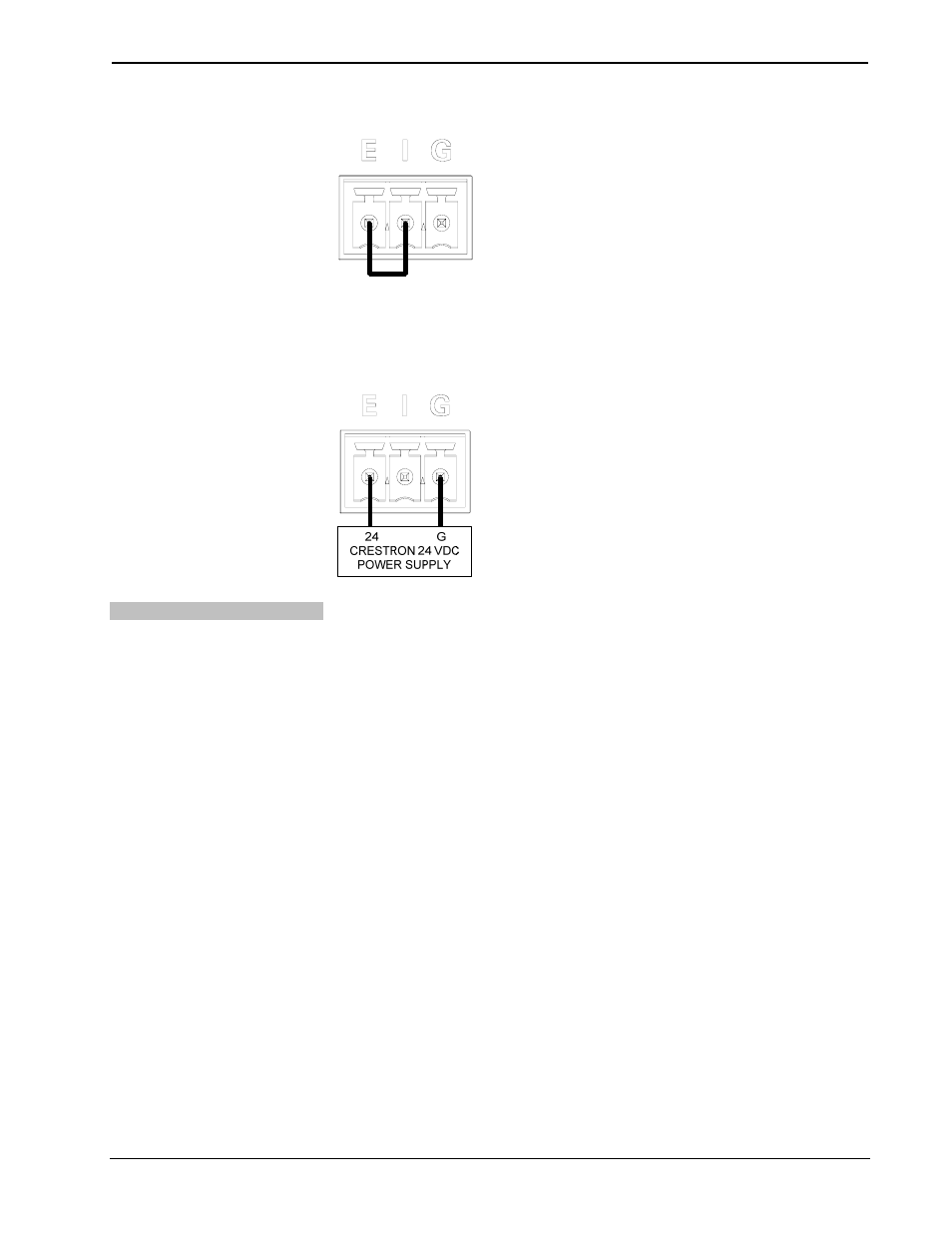

To power a DMNet port externally from a Cresnet 24 VDC power supply, connect
the power supply to the E (External) and G (Ground) pins on the EIG connector as
shown in the following diagram.
Providing DMNet Power Externally
Label the Buttons Use Crestron Engraver software to print custom labels for the DM-MD8X8’s front
panel buttons and LEDS. Crestron recommends printing on 100-pound paper. Paper
with a weight less than 100 pounds will tend to crumple while sliding in, while paper
with a weight of more than 100 pounds may not fit.
