Crestron DM-MD8X8

8x8 DigitalMedia™ Switcher

4. Repeat procedure (steps 1 through 3) to attach the remaining ear to the

opposite side.

Stacking

Four “feet” are provided with the DM-MD8X8 so that if the unit is not rack
mounted, the rubber feet can provide stability when the unit is placed on a flat
surface or stacked. These feet should be attached near the corners prior to the hookup
procedure.

NOTE: No more than two DM-MD8X8 units should be stacked.

Hardware Hookup

Connect the Device

Make the necessary connections as called out in the illustration that follows this
paragraph. For details on making connections to installed DM input cards and DM
output cards, refer to “Appendix A: Hardware Hookup for DM Cards” on page 59.

Apply power after all connections have been made.

When making connections to the DM-MD8X8, use Crestron power supplies for
Crestron equipment.

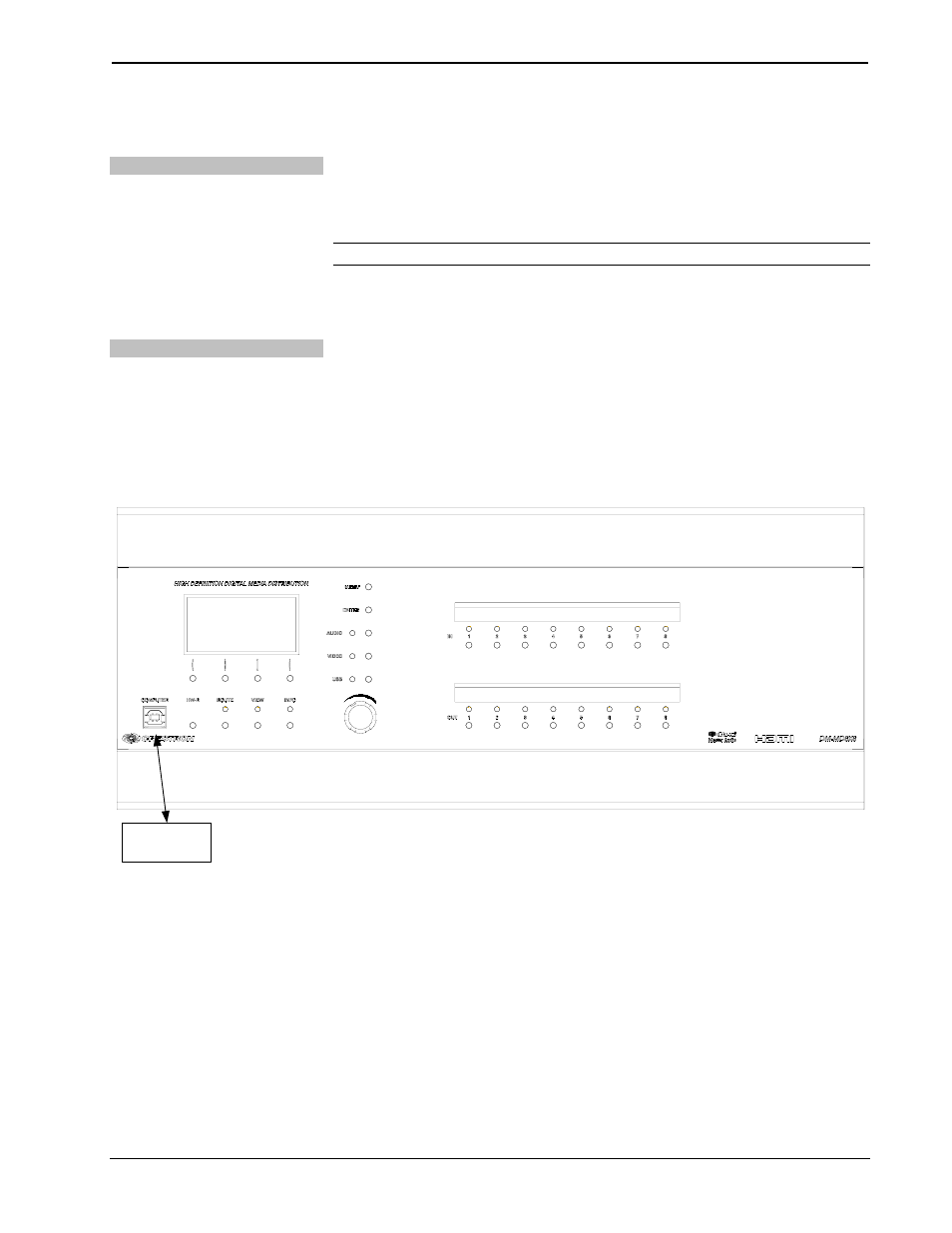

Hardware Connections for the DM-MD8X8, Front

COMPUTER:

TO USB PORT

ON PC

Operations Guide – DOC. 6755A

8x8 DigitalMedia™ Switcher: DM-MD8X8

23
