8x8 DigitalMedia™ Switcher

Crestron DM-MD8X8

assembly since the operating ambient temperature of the environment may be greater
than the room ambient temperature. Contact with thermal insulating materials should
be avoided on all sides of the unit.

Rack Mounting

The DM-MD8X8 can be mounted in a rack or stacked with other equipment. Two
“ears” are provided with the DM-MD8X8 so that the unit can be rack mounted.
These ears must be installed prior to mounting. Complete the following procedure to
attach the ears to the unit. The only tool required is a #2 Phillips screwdriver.

WARNING: To prevent bodily injury when mounting or servicing this unit in a
rack, take special precautions to ensure that the system remains stable. The following
guidelines are provided to ensure your safety:

• When mounting this unit in a partially filled rack, load the rack from the

bottom to the top with the heaviest component at the bottom of the rack.

• If the rack is provided with stabilizing devices, install the stabilizers before

mounting or servicing the unit in the rack.

NOTE: If rack mounting is not required, rubber feet are provided for tabletop
mounting or stacking. Apply the feet near the corner edges on the underside of the
unit.

NOTE: Reliable earthing of rack-mounted equipment should be maintained.
Particular attention should be given to supply connections other than direct
connections to the branch circuit (e.g. use of power strips).

To install the ears:

1. There are screws that secure each side of the DM-MD8X8 top cover. Using

a #2 Phillips screwdriver, remove three screws from one side of the unit as
shown in the diagram step 3.

2. Position a rack ear so that its mounting holes align with the holes vacated

by the screws in step 1.

3. Secure the ear to the unit with three screws from step 1, as shown in the

following diagram.

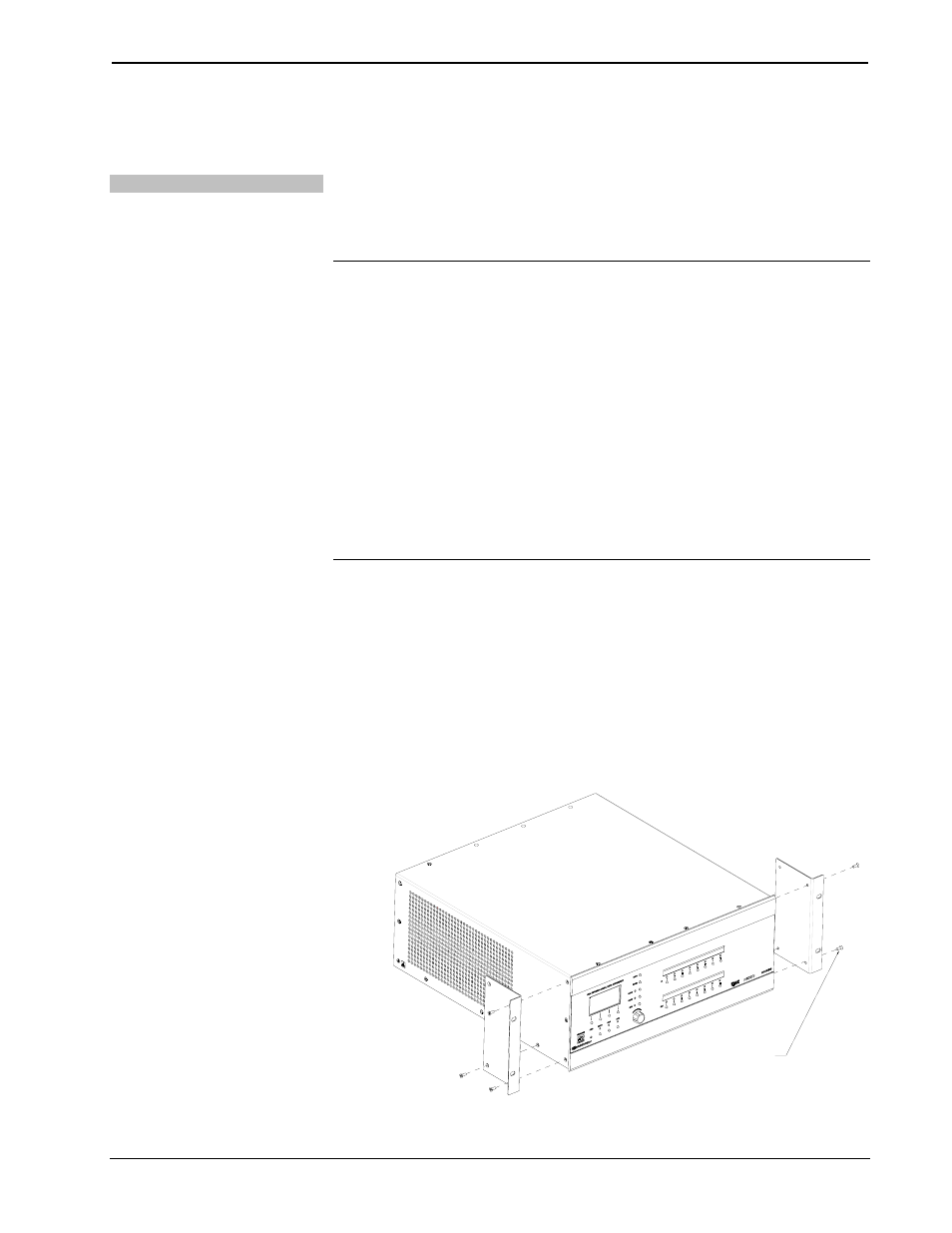

Ear Attachment for Rack Mounting

USE COVER SCREWS

22
