8x8 DigitalMedia™ Switcher Crestron DM-MD8X8

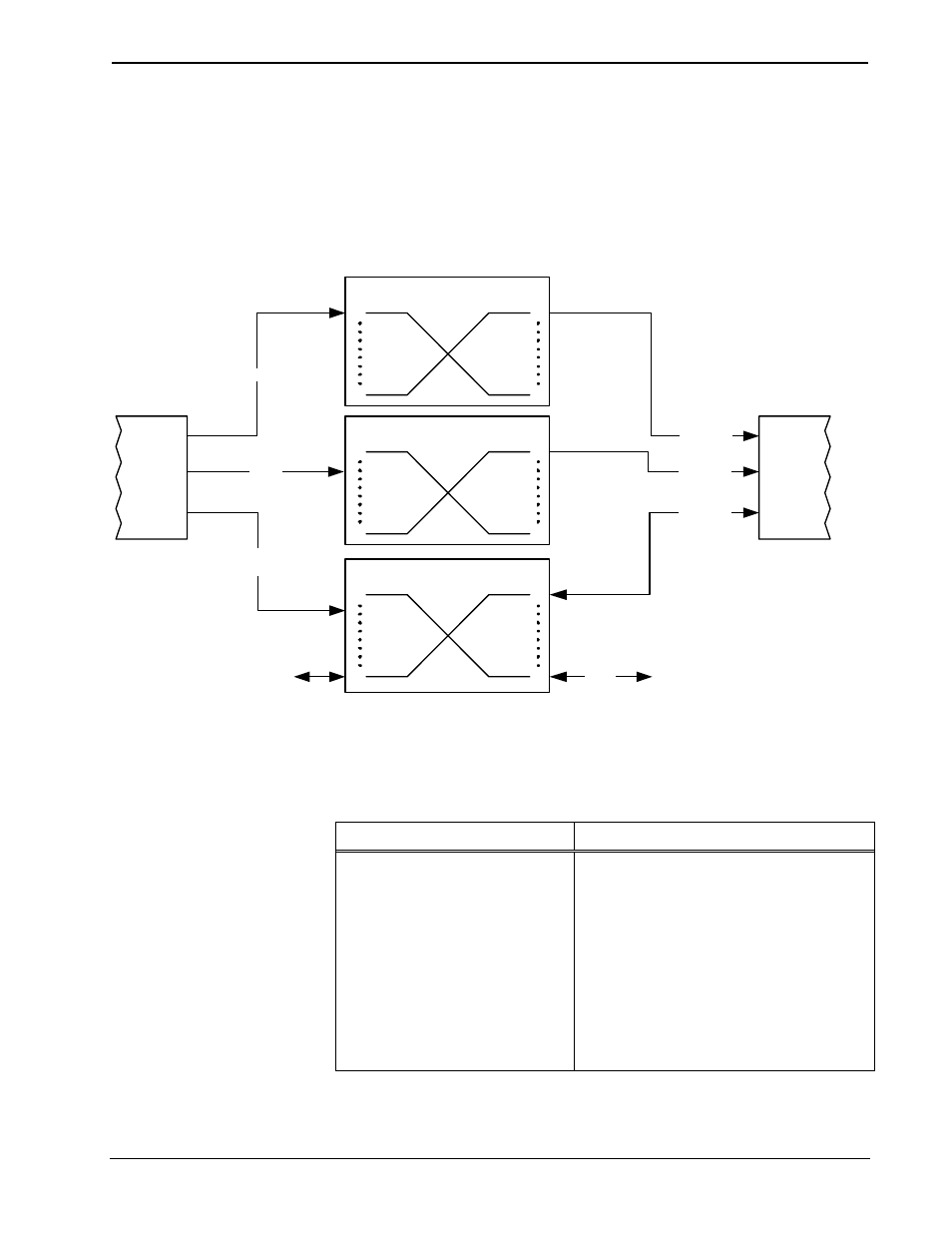

Internal Block Diagram
The following diagram represents the switching abilities of the DM-MD8X8.
Internal Block Diagram of the DM-MD8X8
Digital Video/Audio Switch
3.4Gbps bandwidth
St ereo Audio Swit ch
Managed Ethernet Switch
1
8
1
8
1
8
1
8
1
9
1
9
HDMI
Fr om Input
cards (x8)
From Input
cards (x8)
To/From
Input cards (x8)
To Output
Modules (x8)
To/From Output
Modules (x8)
To Output
Modules (x8)
Input Card
(typical)
Output
Module
(typical)
Stereo
Audio
10/100
ENET
HDMI (x4)
Ster eo
Audio (x4)
10/100
ENET ( x4)
To/From DM-MD8X8 CPU To/From external LAN port
Gbit
ENET
DM-MD8X8 Internal Block Diagram
Specifications
Specifications for the DM-MD8X8 are listed in the following table.
DM-MD8X8 Specifications
SPECIFICATION DETAILS
Video
Switcher
Input Signal Types
Output Signal Types
8x8 digital matrix, modular input/output
cards, resolution management, HDCP v.1.1
content protection support, Crestron
QuickSwitch HD
Configurable via plug-in cards supporting
HDMI, DVI
1
, RGB
1
, component (YP
b
P
r
),
S-video (Y/C), and composite video,
DigitalMedia (DM) over copper wire or fiber
1
Configurable via plug-in cards supporting
DigitalMedia (DM) over copper wire or fiber
1
,
and HDMI
(Continued on following page)
6
• 8x8 DigitalMedia™ Switcher: DM-MD8X8
Operations Guide – DOC. 6755A
