Web Tools Administrator’s Guide 39
53-1001772-01
Blade management
3
DRAFT: BROCADE CONFIDENTIAL
The Firmware Version columns display the firmware loaded onto each blade. A blade can have
more than one firmware image loaded onto it. The Enable Blade column in the Blade tab pane
indicates whether the blade is enabled.

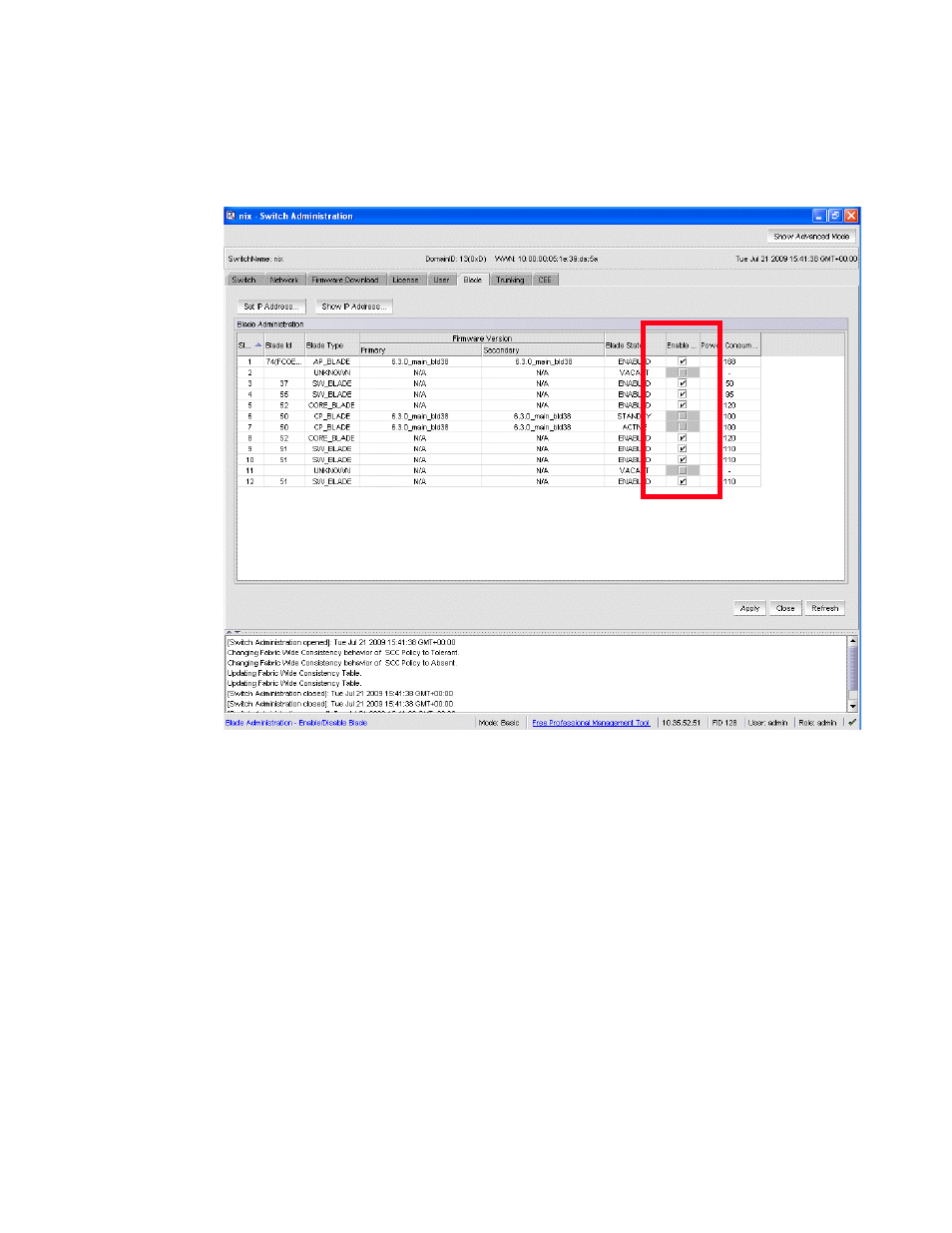

FIGURE 15 Blade tab
3. Select the Enable Blade check box for each blade you want to enable.
Clear the check box to disable the blade. You cannot enable or disable the CP blades.
4. Click Apply.
Setting a slot-level IP address
Use the following procedure to set an IP address.
1. Open the Switch Administration window as described in “Opening the Switch Administration
window” on page 35.
2. Select the Blade tab.
3. Click Set IP address.
4. Select a slot number from the list.
5. Enter the IP address, subnet mask, and Gateway IP address.
6. Select a type from the list.
