243

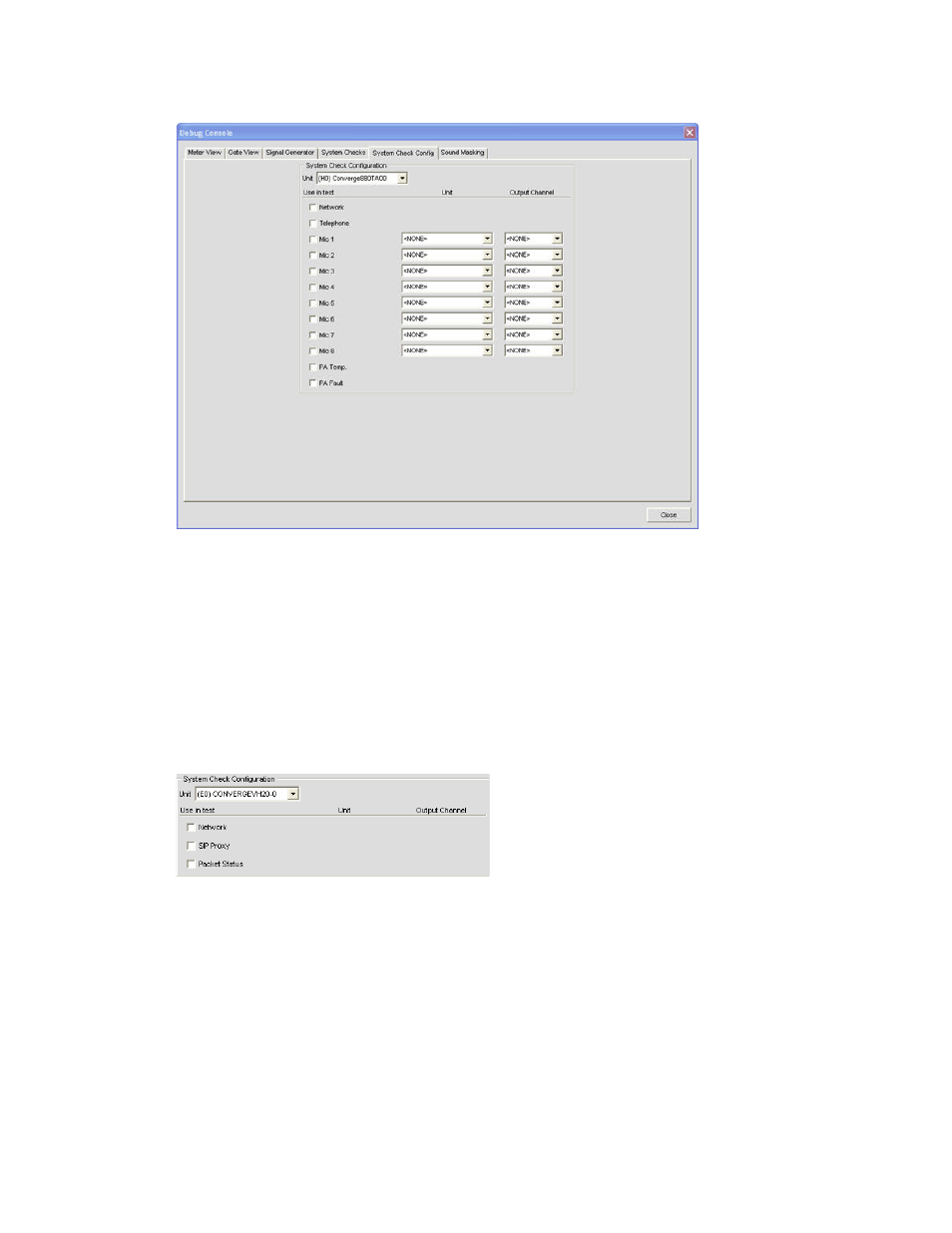

System Check Config Tab
The System Check Config tab allows you to select and configure the diagnostic tests run on System Checks tab.
System Check Config settings include:
• Unit (System Check Configuration): Specifies the unit in the site that you want to test.
• Network: Select this check-box to test the IP configuration and network connectivity for the selected unit.
• Telephone: Select this check box to test Telco/VoIP Rx and/or Telco/VoIP Tx functionality .
• Mic 1-4 (840T), Mic 1-8 (880, 880T, 880TA, 8i, SR 1212, SR 1212A): Select the check box(es) for the mic
input channels that you want to test.
• Unit: Specifies the unit that will provide test audio to the speaker.
• Output Channel: Specifies the output channel that will provide test audio to the speaker.
System Check Configuration - VH20
• Network: Select this check-box to test the IP configuration and network connectivity for the selected unit.
• SIP Proxy: Select this check box to test the Proxy 1 and 2 registration status
• Packet Status: Select this check box to the for packet loss
Select the tests you want to run using the Use in test check boxes, and select the unit(s) and output(s) (with
speakers connected) using the Unit and Output Channel drop-down lists. Execute the selected tests by pressing
the Start button on the System Checks tab.
