Figure 1.7 – Rockwell Automation 2098-IPD-020-DN Ultra5000 Series Intelligent Positioning Drives with DeviceNet Reference Manual User Manual
Page 14

Publication 2098-RM002A-EN-P – October 2001
1-6
The DeviceNet Interface

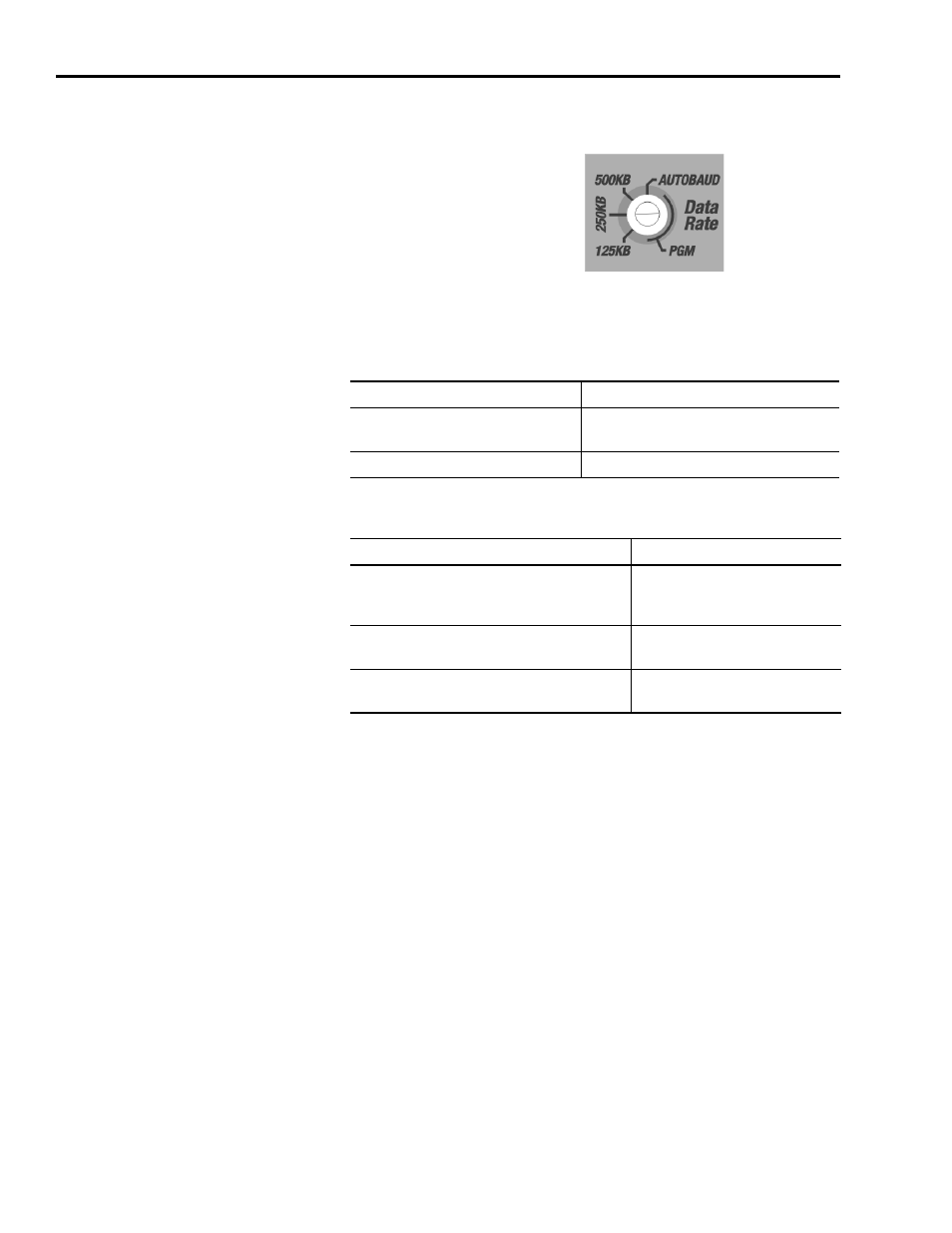

Figure 1.7
Data Rate Rotary Switch
4. Apply power to the drive.
5. Observe the module status LED.
6. Observe the network status LED.
If the module status LED:
Then:
Is not steady green
Refer to Troubleshooting DeviceNet Drives
Is steady green
The drive is ready. Go to step 6.
If the network status LED:
Then:
Is off
Establishing communication with
network (wait for flashing or
steady green).
Is not flashing or steady green
Is flashing or steady green
Communication is ready. Go to
Use the Data Rate rotary switch on the DeviceNet
panel of the drive to set the data rate.
