Publication 2098-RM002A-EN-P – October 2001
1-4
The DeviceNet Interface
4. Insert each wire into the appropriate clamping cavity of the
plugable screw connector, according to the color of the cable
insulation.
5. Use an 1/8 inch flat blade screwdriver to attach wires in the
connector. Firmly tighten the clamping screws to secure each wire.

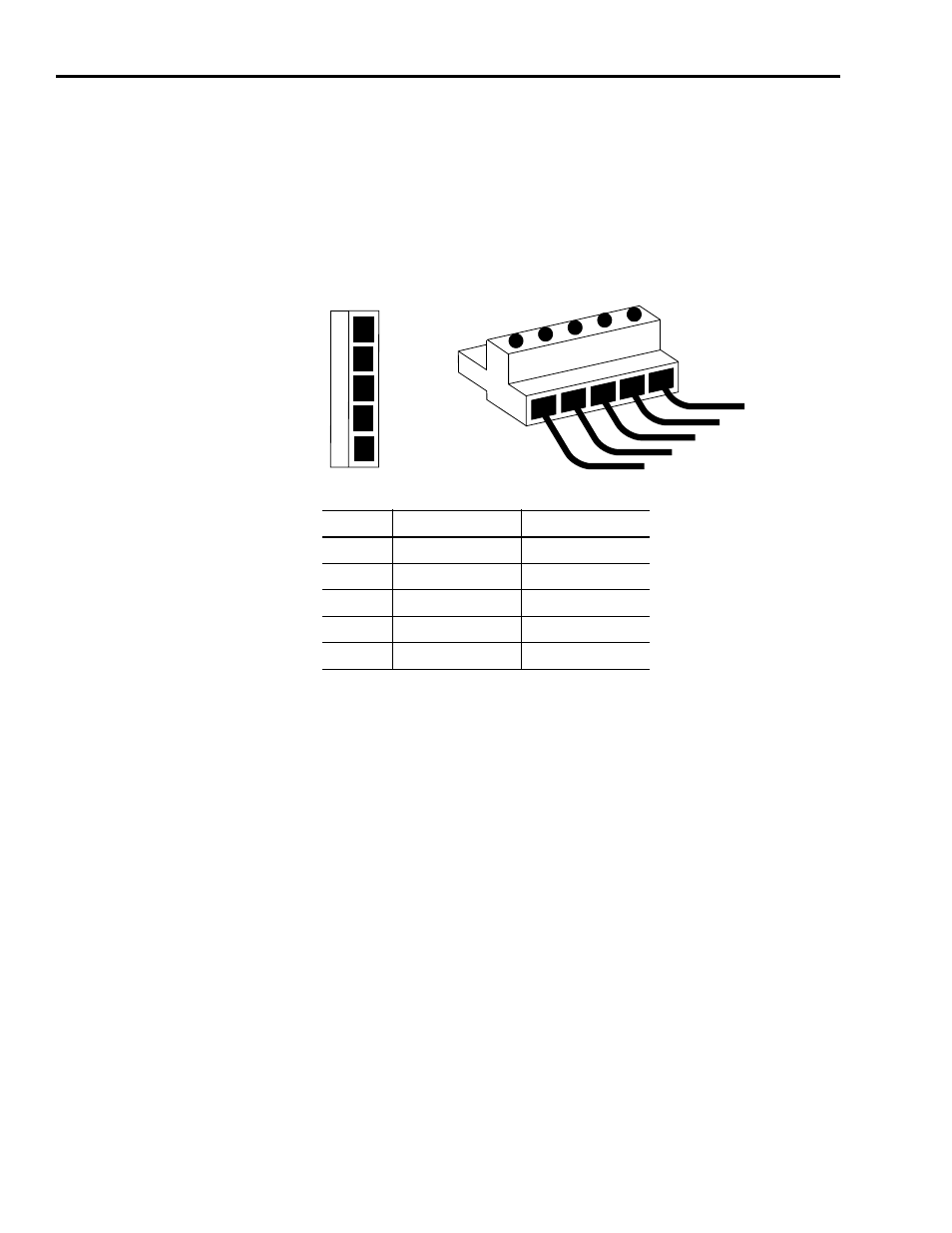

Figure 1.5
Wiring the DeviceNet connector
6. Insert the connector on the Ultra5000 drive to attach the
DeviceNet network.
Terminal Cable Color
Designation
1
Black
V -
2
Blue
Can_L
3
Bare
Shield
4
White
Can_H
5
Red
V +
5
4
3
2
1
2
3
1
4
5
Red (V+)
White (Can_H)
Bare (Shield)
Blue (Can_L)
Black (V-)
Plug Connector
