Rockwell Automation 1768-L45S Compact GuardLogix Controllers User Manual
Page 69
Rockwell Automation Publication 1768-UM002C-EN-P - April 2012
69
Add, Configure, Monitor, and Replace CIP Safety I/O
Chapter 5
8.
Click Set.
9.

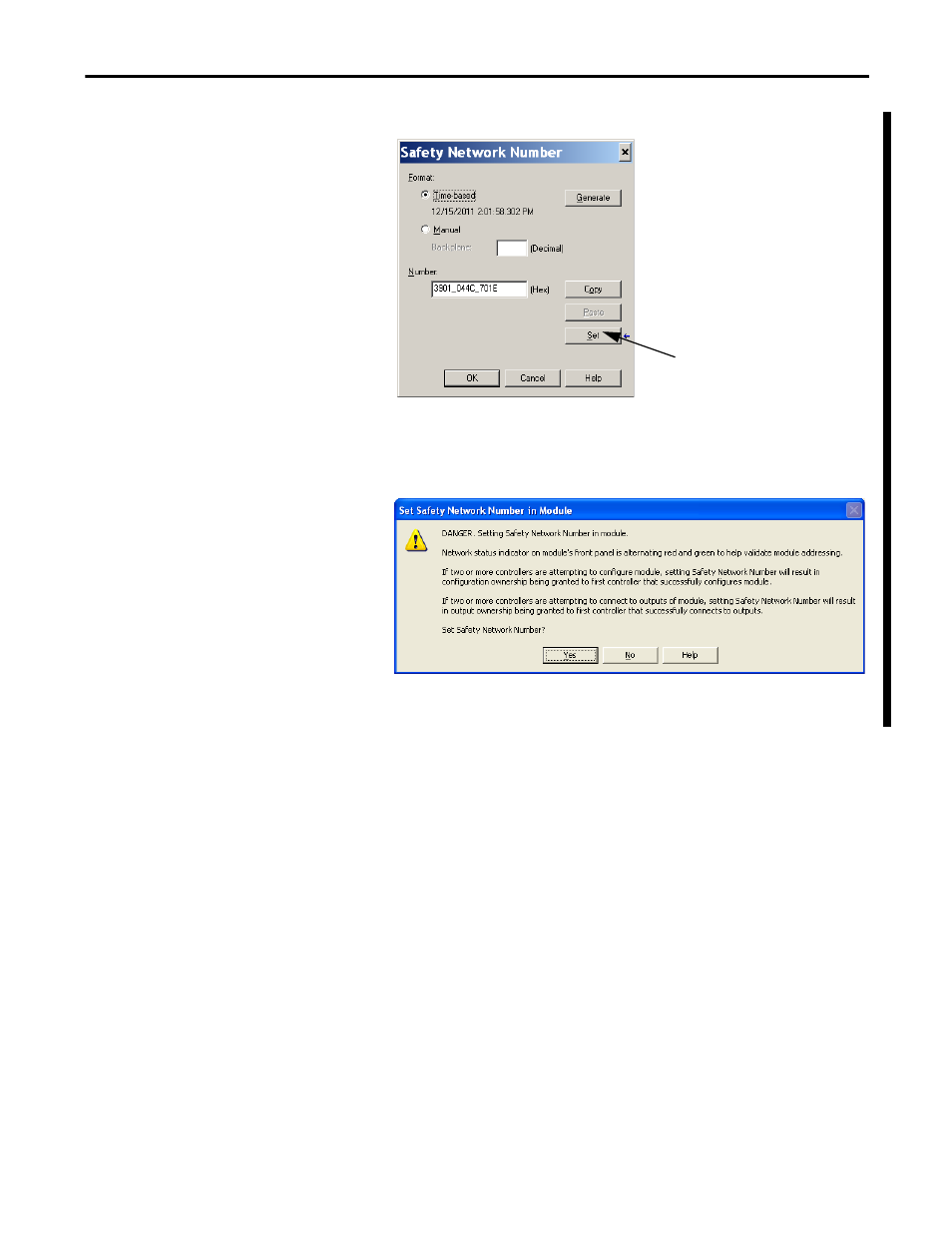

Verify that the Network Status (NS) status indicator is alternating
red/green on the correct module before clicking Yes on the confirmation
dialog box to set the SNN and accept the replacement module.
10.
Follow your company-prescribed procedures to functionally test the
replaced I/O module and system and to authorize the system for use.
