Rockwell Automation Publication 1768-UM002C-EN-P - April 2012

59

Add, Configure, Monitor, and Replace CIP Safety I/O

Chapter 5

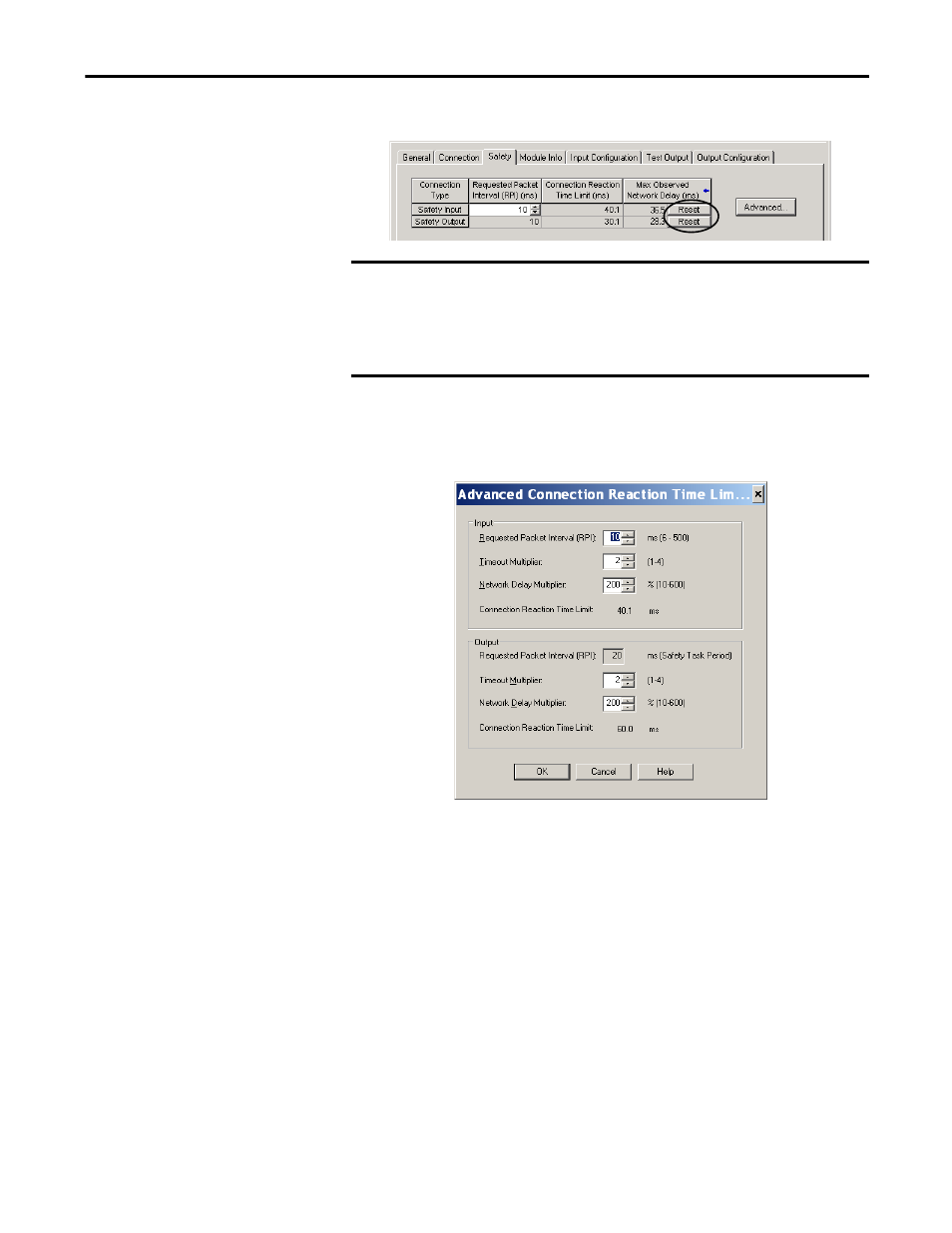

Figure 14 - Resetting the Max Observed Network Delay

Setting the Advanced Connection Reaction Time Limit Parameters

Figure 15 - Advanced Configuration

Timeout Multiplier

The Timeout Multiplier determines the number of RPIs to wait for a packet
before declaring a connection timeout. This translates into the number of
messages that may be lost before a connection error is declared.

For example, a Timeout Multiplier of 1 indicates that messages must be received
during every RPI interval. A Timeout Multiplier of 2 indicates that 1 message
may be lost as long as at least 1 message is received in 2 times the RPI (2 x RPI).

IMPORTANT

The actual Maximum Network Delay time from the producer to the
consumer is less than the value displayed in the Maximum Network Delay
field on the Safety tab. In general, the actual maximum message delay is
approximately one-half the Maximum Network Delay value that is
displayed.
