20

Rockwell Automation Publication 1768-UM002C-EN-P - April 2012

Chapter 2

Install the Controller

Required System
Components

You need these parts when installing your controller:

1768-L43S or 1768-L45S Compact GuardLogix controller

1768-PA3 or 1768-PB3 power supply

1769-ECR end cap

Mounting screws (M4 or #8 panhead) or one of these
EN 50 022 DIN rails:

35 x 7.5 mm (1.38 x 0.30 in.)

35 x 15 mm (1.38 x 0.59 in.)

1756-CP3 serial cable (or make your own)

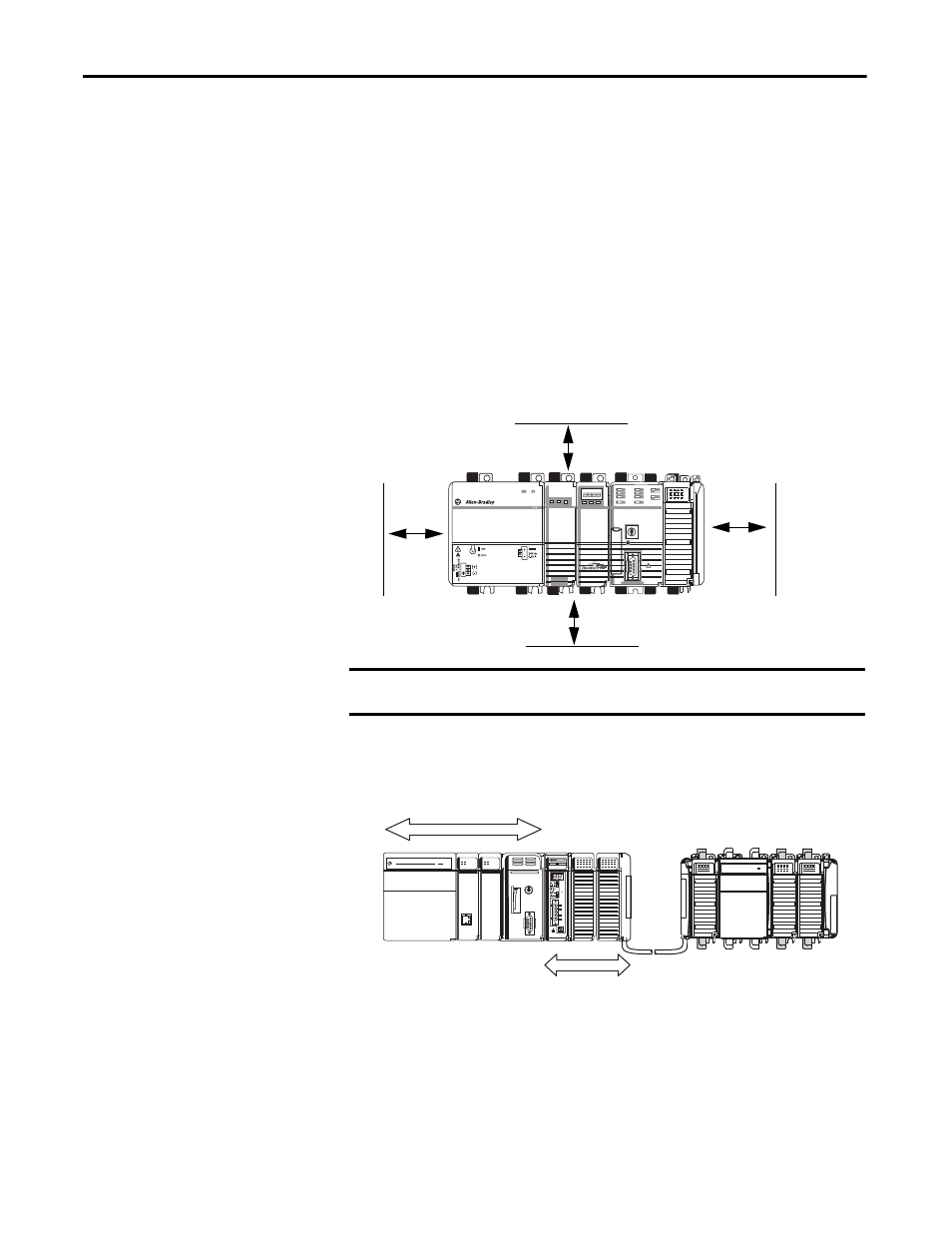

Clearance Requirements

Allow for the minimum clearance from enclosure walls, wireways, and other
equipment.

Module Placement

IMPORTANT

These minimum clearances keep the modules cool enough in most situations.
The operating temperature range is 0…60 °C (32…140 °F).

31609-M

Power

OUT

L1

L2/N

90 mm
(3.54 in.)

105 mm (4.13 in.)

90 mm
(3.54 in.)

105 mm (4.13 in.)

1768 Backplane (local)

1768 Controller, Power Supply, and I/O Modules

Remote Bank

1769 Power Supply and

I/O Modules

1769 Backplane
