106

Rockwell Automation Publication 1768-UM002C-EN-P - April 2012

Chapter 8

Monitor Status and Handle Faults

Monitoring Safety Status

View controller safety status information on the safety status button on the
online bar and on the Safety tab of the Controller Properties dialog box.

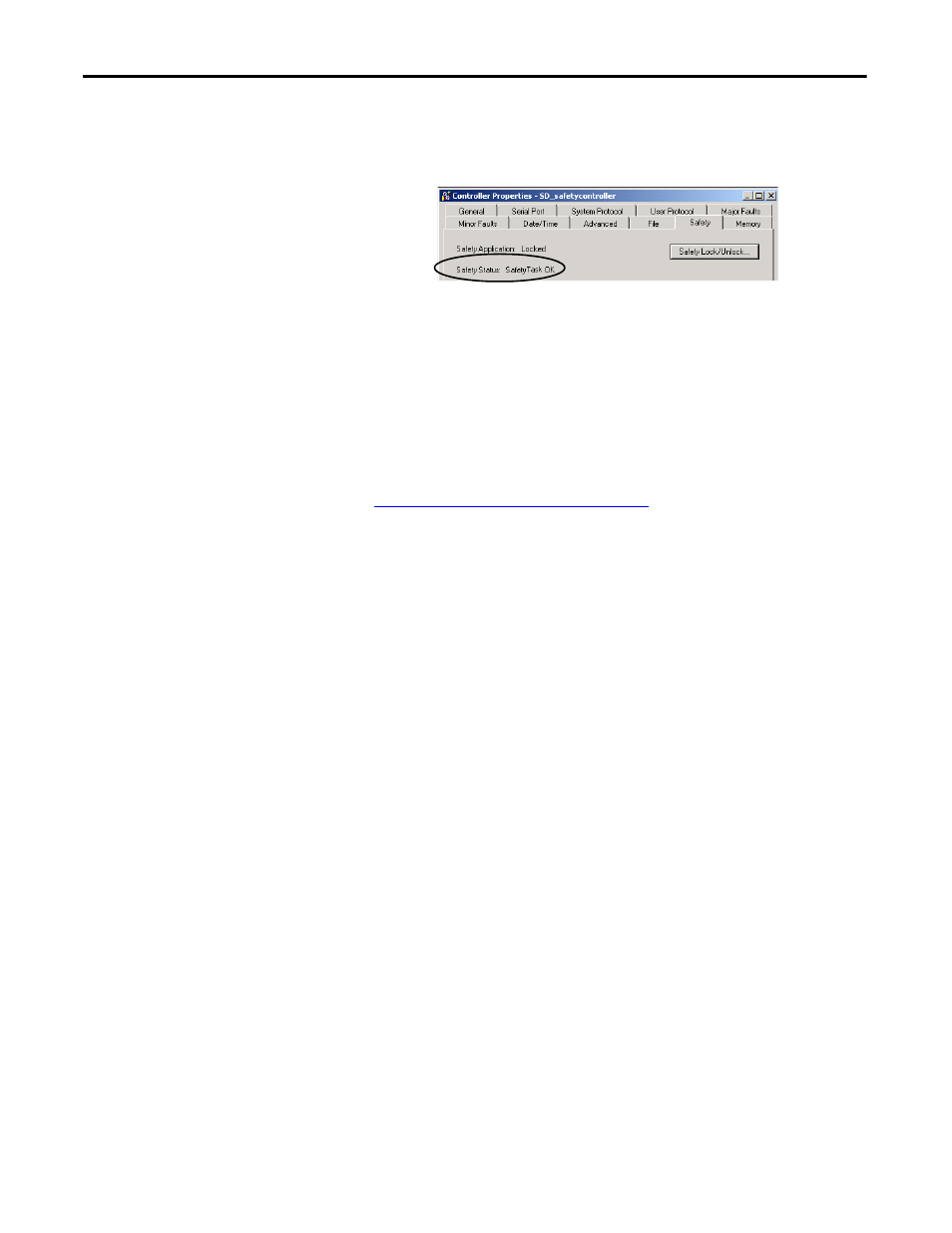

Figure 26 - Safety Task Status

These are the possible values for safety status:

Safety partner is unavailable.

Safety firmware is incompatible.

Safety task inoperable.

Safety task OK.

With the exception of safety task OK, the descriptions indicate that
nonrecoverable safety faults exist.

See

Major Safety Faults (Type 14) on page 108

for fault codes and corrective

actions.

Controller Faults

Faults in the Compact GuardLogix system can be nonrecoverable controller
faults, nonrecoverable safety faults in the safety application, or recoverable safety
faults in the safety application.

Nonrecoverable Controller Faults

These occur when the controller’s internal diagnostics fail. If a nonrecoverable
controller fault occurs, safety task execution stops and CIP Safety I/O modules
are placed in the safe state. Recovery requires that you download the application
program again.

Nonrecoverable Safety Faults in the Safety Application

If a nonrecoverable safety fault occurs in the safety application, safety logic and
the safety protocol are terminated. Safety task watchdog faults fall into this
category.
