Configure the Controller

5.

Specify the folder in which to store the safety controller project.

6.

For RSLogix 5000, version 20 or later, choose a Security Authority option.

For detailed information on security, refer to the Logix5000 Controllers
Security Programming Manual, publication

1756-PM016

.

7.

Click OK.

RSLogix 5000 software automatically creates a safety task and a safety program.

A main ladder logic safety routine called MainRoutine is also created within the
safety program.

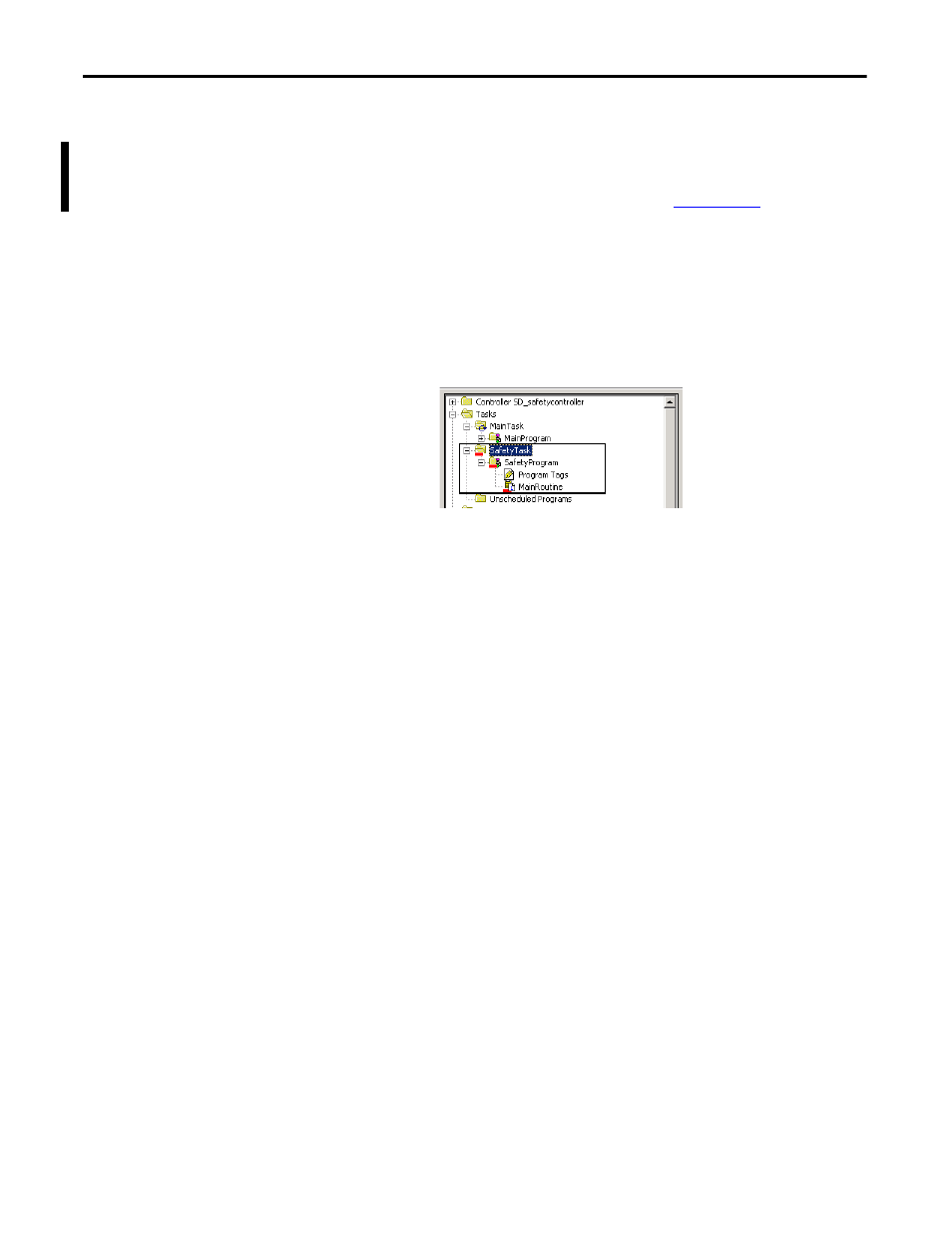

Figure 2 - Safety Task in the Controller Organizer

A red bar under the icon distinguishes safety programs and routines from
standard project components in the RSLogix 5000 Controller Organizer.

When a new safety project is created, RSLogix 5000 software also automatically
creates a time-based safety network number (SNN).

This SNN defines the Compact GuardLogix controller as a safety subnet. It can
be viewed and modified via the General tab on the Controller Properties dialog
box.

For most applications, this automatic, time-based SNN is sufficient. However,
there are cases in which you might want to enter a specific SNN.
