Rockwell Automation Publication 1768-UM002C-EN-P - April 2012

33

Chapter

3

Configure the Controller

Create a Controller Project

To configure and program your controller, use RSLogix 5000 software to create
and manage a project for the controller.

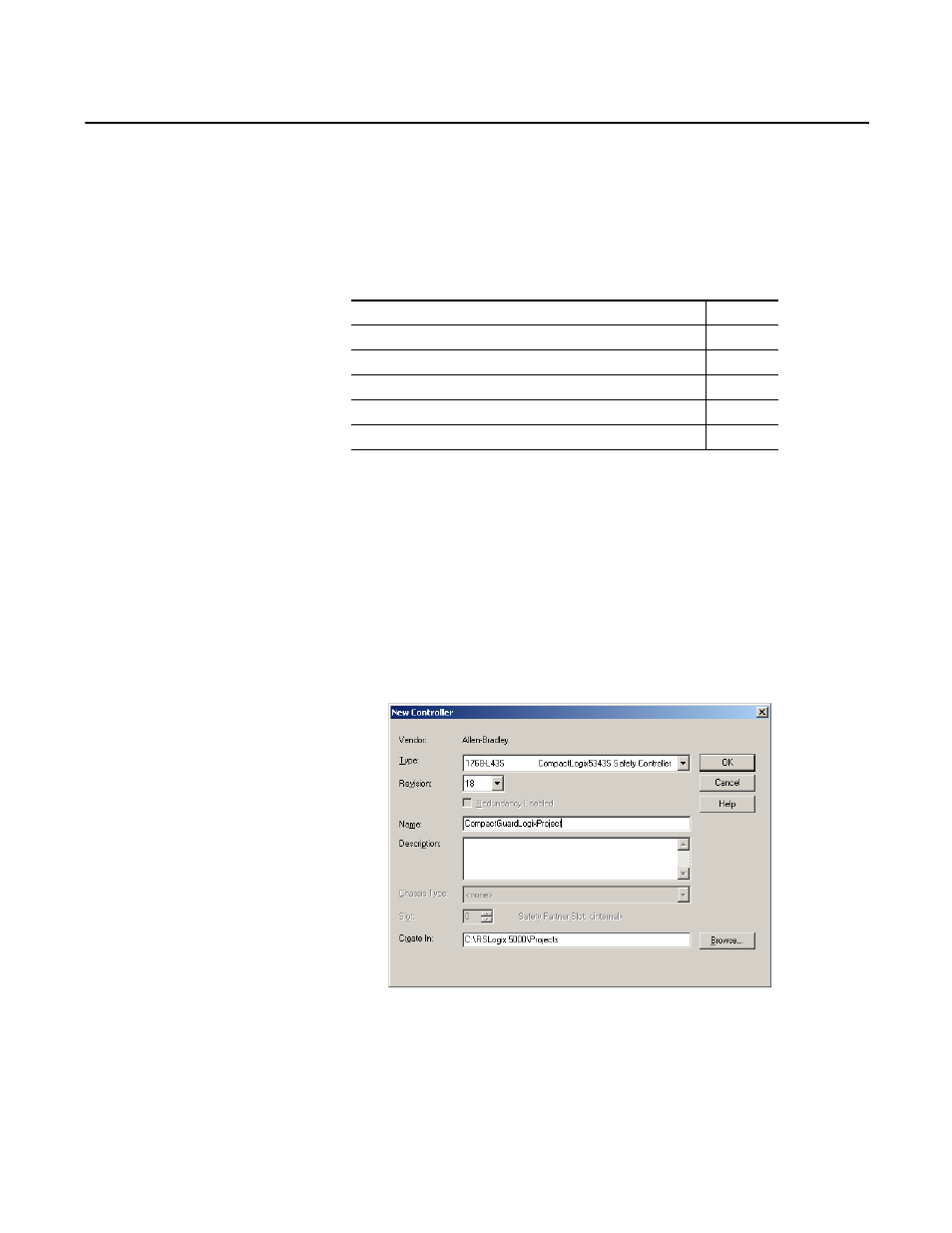

1.

Create a project in RSLogix 5000 software by clicking the New button on
the main toolbar.

2.

From the Type pull-down menu, choose a Compact GuardLogix
controller:

1768-L43S CompactLogix5343S Safety Controller

1768-L45S CompactLogix5345S Safety Controller

3.

Enter the major revision of firmware for the controller.

4.

Type a name for the controller.

When you create a project, the project name is the same as the name of the
controller. However, you can rename either the project or the controller.

Topic

Page

Create a Controller Project

33

Set Passwords for Safety-locking and -unlocking

35

Handling I/O Module Replacement

37

Enable Time Synchronization

37

Configure a Peer Safety Controller

38
